voice recorder USB flash driver with H.264 Video Compression Digital Tachograph

voice recorder USB flash driver with H.264 Video Compression Digital Tachograph
voice recorder USB flash driver with H.264 Video Compression Digital Tachograph

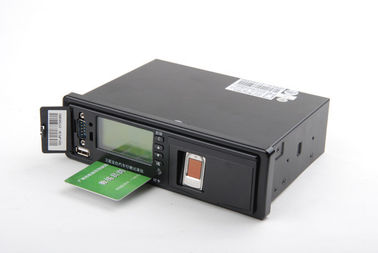

Large Image :  voice recorder USB flash driver with H.264 Video Compression Digital Tachograph

Product Details:
Place of Origin: Guangdong China
Brand Name: Dragon
Certification: CE, FCC, IP65
Model Number: G-V303
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: 100-200USD
Packaging Details: Cardboard
Delivery Time: 5 working days
Payment Terms: Paypal TT WestUnion
Supply Ability: 20K/Month
Detailed Product Description
High Light:

gps car tracking system

,

real time gps tracking devices

voice recorder USB flash driver with H.264 Video Compression Digital Tachograph





Real Time GPS Car Tracker



Based digitization image compression storage and 3G wireless transmission technology, combined GPS tracking/monitoring, vehicle driving recorder, SD card high capacity storage, Driver IC card ID recognition, multiple data interface, voice calls and other features. Based vehicle’s standard embedded type structure to design, make it is easy to install. Meet the requirements of national standard GB-T 19056-2003/ Guangdong DB44/T578 standard.





Technical specification



Working voltage

10~60 V/DC

Limiting voltage

100V/DC

Car battery protecting voltage

Low: 10V   High: 56V

Power voltage of Anti-reversed connection

≥100V

Average working current

90mA DC 12V

Power saving mode

<30mA DC 12V

Backup battery

Work time 1h

Dimension

191x 142x 58mm(L x W x H)

Canning material

Panel: industrial plastic, main case: electrolyze steel plate

Installation mode

Embedded installation on vehicle panel or use external bracket to install it.

Main device weight

1.52kgnet weight

GPS features



GPS antenna interface

SMA interface: -26dB

Tracking sensitivity

-159dBm

Positioning time

Cold boot less than 34s; hot boot less than 3.5s; warm boot less than 33s, re-capture time 1.0s

Positioning accuracy

10m2D RMS

Speed accuracy

0.1m/s

BS positioning accuracy

100m





 Product Functions:



1.  Image:

adopt H.264 technology to achieve the monitoring by 4 routes real time image, store image at regular time, event record, alarm record, image resolution D1/Half D1/CIFcan be select.

2.   SD storage:

adopt high capacity SD card to store image, strong error correction feature, it is safety for image in the condition of inside vehicle.

3.   image transmission:

Real time transmit/monitor video via GPRS, double code flow to transmit, adjustable transmission rate.

4.    reply image:

4 routes image can be synchronous replay via DVR player, eplay according with the requirements, editing and storage, characters superposition, geographic info superposition.

5.   GPS monitoring:

Automatic tracking, regions setting, geo-fence, GPS mileage statistics, vehicle mileage statistics, blind area supplementary report, traces storage, base station positioning.

6.Signal detecting and control:

8 routes switch signal input, 1 route vehicle speed sensor’s signal input, 2 routes analog signal input, 5 routes relay control output. Intelligence mode and forced mode to cut fuel/circuit, cameras’ power source control, user-defined backup output control.

7.   Alarm:

SOS, parking over time alarm, speeding alarm, speeding early warning, fatigue driving alarm, deviation alarm, lost power alarm, low power alarm.

8.   Road detecting:

road detecting, road detecting calculation, departure alarm, speeding alarm, entry/exit station report…

9.   Voice and phone call:

hands free phone, remote listen in, voice reminding device, TTS voice report.

10. National standard/local standard:

display communication info/vehicle driving info, collect/store info, recognize driver ID, parameters setting, import/export data and print out info.

11. Module for bus:

automatic report station/manual report station inside/outside the bus, RFID driver attendance management can be achieved by this module.

12.Display screen:

It can display the information like positioning, driving, dispatching and other data. Press key to check the message and set the menu.

13. Remote update:

main device’s program was support to remote download; user can renew the program remotely.

14. Protection:

     Power saving mode: in this mode, GPS device’s working current will drop to30mA@12V when vehicle was in flameout.

   Car battery over discharge protection: it will switch to supply power by backup battery if car battery’s voltage is very low (10V±0.1V).

 Over voltage protection: it will cut the external circuit to protect GPS device if the voltage exceeds limit value (56V), backup battery can work for 1h.





Main Features:



● modularized functions design, integrated digital video storage (Digital Video Record), GPS monitoring, dispatching and management.

  ● Integration structure design, vehicle “single DIN” industrial standard size fit to install.

  ● Adopt wireless transmission to achieve real time monitor the moving target.

  ● Build-in TTS voice report text module.

  ● Patent design for SD card protection to ensure the safety of image stored.

  ● It can update remotely, easy to maintain

  ● Broad intelligence interface to achieve automatic report station for bus, LED screen to release Ads

● Strong expansibility can connect with printer, report station device, fuel consumption detecting, LCD and others.





Performance Parameters:



DCR performance index



Image compression

H.264 video compression

Image format

D1, Half D1, CIF real time

Image storage mode

Record at regular time, event record, alarm record

Video input

4 routers analog video input  (BNC)

Image replay

4 routes image synchronous replay, replay according with the requirements, editing and storage, characters superposition, geographic info superposition.

SD card interface

2 routes front board SD card slot, max capacity: 16G

Screen

132x64 single color lattice screen

GPS driving recorder performance index



Vehicle detecting interface

8 routes digital signal input

Vehicle mileage pulse input

1 route (mileage pulse factor self-adaption feature)

Analog input interface

2 route AD input

Output interface

5 routes OC output, controllable relay

Communication interface

4 route RS232 port, 1 route USB interface.

Voice interface

1 route hands free calls, can be listen in via build-in microphone

Voice prompt

Build-in voice prompting, TTS text report device (optional)

Driver ID recognition

Contact-type IC card reader (optional)

Special features for bus

Module YW3000-Y256A/Y356A for bus

Report station module

Audio output to report station, driver input to report station, power of report station speaker is 10W

Keyboard for report station

18 keys with RFID card reader, RS232 port

Environment features



Vehicle spark noise immunity

Discharge voltage 10 kV~20 kV, discharge frequency 20 times/s~200 times/s

Electro-transient pulse noise immunity

4KV, experiment grade IV

Static discharge noise immunity

Contacting discharge 6KV, air discharge 8KV, experiment grade III

Conduction interference limits

Accord with the requirements of class B

Radiated interference limits

Accord with the requirements of class B

Temperature characteristic

Working temperature -20 ℃~+60 ℃

Limiting temperature -35 ℃~-20℃, +60℃~+70℃

Humidity

5%~95%  non-condensation





Product Configuration:



1. Standard configuration

1)       main device           1 pcs

2)       GSM antenna           1 pcs

3)       GPS antenna    1 pcs

4)  Hands free speaker

5)       Installation cables      1 set

6)       Mounting bracket      1 set

7)       Usage instructions(electronic edition)

8)       Warranty card

9)        Certification





2. Optional configurations



1), Accessories (relay) for cut fuel/circuit

2). Panic button

3)  TTS module (can be build-in)

4)   Driver ID recognition (optional)

5). External 629 printer

6). Camera and switching cable for camera

7). SD card
