Car Black Real Time GPS Car Tracker , Portable GPS GSM Tracker

Car Black Real Time GPS Car Tracker , Portable GPS GSM Tracker
Car Black Real Time GPS Car Tracker , Portable GPS GSM Tracker Car Black Real Time GPS Car Tracker , Portable GPS GSM Tracker

Large Image :  Car Black Real Time GPS Car Tracker , Portable GPS GSM Tracker

Product Details:
Place of Origin: Guangdong China
Brand Name: Roadragon
Certification: CE, FCC, IP65
Model Number: G-V209
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: 0-100USD
Packaging Details: Cardboard: Carton size 42*37*33CM 30sets/Carton
Delivery Time: 5 working days
Payment Terms: Paypal TT WestUnion
Supply Ability: 20K/Month
Detailed Product Description
Dimension: 90mm *65mm*25mm Color: Black
Working Voltage: 9V -- 30V DC Working Current: 100 MA – 250 MA(12V/DC)
Weight: Tracker Weight 0.13kg Total Packet 0.4kg Working Temperature: -20℃ -- 75℃
GSM Frequency: 850MHz/900MHz/1800MHz/1900 MHz GPS Module: SiRF III Solution
GSM Chipset: SIMCOM GSM Chipset Moisture: ≤ 93%(Non-water Vapor Condensation State)
GPS Sensitivity: -159Db Receiving Panel Structure: GPS Module 32-channel
Locating Accuracy: < 5m (95%) Cold Start Time: < 48s(in Average)
Heat Start Time: < 10s (in Average)
High Light:

real time tracking gps

,

gps car tracking system

Car Black Real Time GPS Car Tracker , Portable GPS GSM Tracker



 Description:

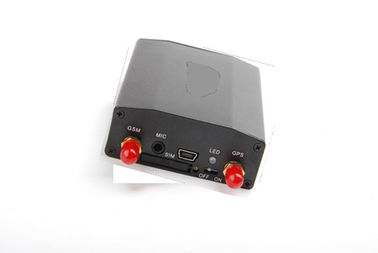

G-V209 is a GPS/GSM/GPRS based tracking device, specially developed and designed for vehicle real-time tracking and fleet management.

G-V209 has  inbuilt  GPS (SIRF Ⅲ )  and  GSM module  (SIMCOM 900)  to

obtain accurate position data. This device utilizes its GSM capability to send position data to mobile phone or server based vehicle  tracking and fleet management

Device have voice input/output port, customer can connect a microphone to

device and hidden it somewhere in the car for listening to the cabin; also can connect a louder speaker same time, to use the device as a telephone

Car Black Real Time GPS Car Tracker , Portable GPS GSM Tracker 0

Car Black Real Time GPS Car Tracker , Portable GPS GSM Tracker 1







Function:



GPRS TCP/UDP and SMS Communication

A GPS (Optional)

Track on Demand

Track by Time Interval

Upload when Direction Change

GSM Blind A rea Memory

 SOS Panic Button

Geo-fencing A larm

Low Battery A larm

Over Speed A larm

Power-cut A larm

Engine Cut (Remote cut fuel / engine)

Temperature detect

Fuel consumption

Take picture

Fleet dispatching function(via SMS to send and receive command )

Support TTS







Product Features:



1.Working based on existing GSM/GPRS network and GPS satellites You can check latitude and longitude / time / speed by using a mobile phone and then use google earth and other public map software, you can get location information in real time.
2. Support GPRS data transmission.
3.Send the commands by computer
4.Send the commands by server or SMS
5.Support two GSM cards, the unit works with the other card automatically when one card has no GSM signal or no phone charge.

6.Support storing data in SD card, the GPS data will be stored into the SD card automatically when there's no GPRS signal.When GPRS signal is normal ,the data can be sent to the server automatically.

7. If the target into the underground parking lot or other GPS blind spots, ,can send last location to the the authorized number

8.Add or change Username and Password and Authorized number.
9.Hidden alarm, remote monitoring and talk
10.motion sensor alarm
11. SOS alert.
12. Send a Geofence alert to the user when it breaches the restricted area.

13.Send a movement alert to the user when it begins to move.

14.Send an overspeed alert to the user when it moves exceed of the restricted speed.

15.Send a low battery alert to the user if the battery is low.

16.Send an alert of theft to the user automatically if the power be cut off or the vehicle be startup illegally.

17.Send SMS to the unit to cut off the vehicle engine and circuit when someone startup the vehicle illegally in remotely.

Car Black Real Time GPS Car Tracker , Portable GPS GSM Tracker 2

Car Black Real Time GPS Car Tracker , Portable GPS GSM Tracker 3





specification:



Name



Parameter



Dimension



90mm ×  65mm ×  25mm

Color

Black

Working voltage

9V -- 30V DC

Working current

100 mA – 250 mA(12V/DC)



Back-up battery life  time



Up to 7 hour



Weight



Tracker weight



0.13kg



Total packet



0.4kg



Working temperature

-20℃ -- 75℃



Moisture

≤ 93%(Non-water vapor condensation state)

GSM Frequency

850MHz/900MHz/1800MHz/1900 MHz

GPS Module

SiRF III  solution



GSM Chipset

SIMCOM GSM Chipset



GPS Sensitivity



-159Db



GPS Frequency



1575.42±1.023MHz



Receiving panel structure



GPS module 32-channel



Locating accuracy

< 5m (95%)



Cold start time

< 48s(in average)

Heat start time

< 10s (in average)

LED indicator light

usage of green / red dual-color LED ind icator light shows the GPS / GSM status





Applications



Logistic /retail/ manufacture/ cloth/ medical /traffic/ food /animal/ book /coal/ asset /ticket /

Vehicle /payment/ anti-counterfeiting/ aero /military/ others

Car Black Real Time GPS Car Tracker , Portable GPS GSM Tracker 4
