Children Cell Phone GPS Tracker Quad Band GPRS / GSM Tracking Device Portable

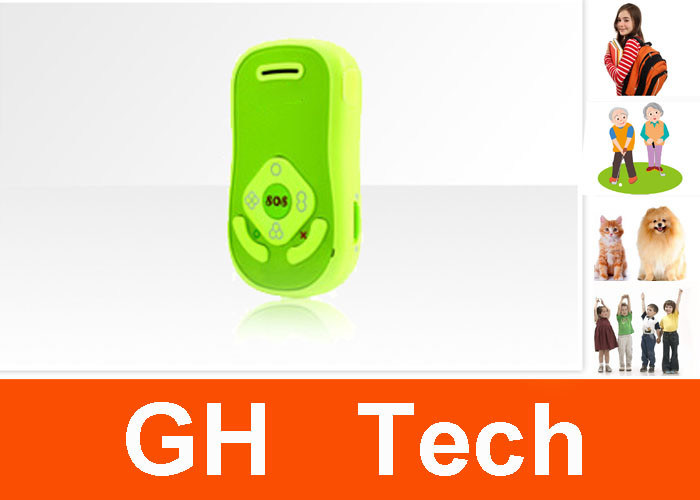

Gambar besar : Children Cell Phone GPS Tracker Quad Band GPRS / GSM Tracking Device Portable

Detail produk:

Place of Origin:	China
Nama merek:	GH
Sertifikasi:	CE ROHS
Model Number:	G-T200

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	50
Packaging Details:	50pcs per carton
Delivery Time:	WITHIN 3 DAYS AFTER PAYMENT
Payment Terms:	WU T/T Paypal
Supply Ability:	50000/month

Kontak

Detil Deskripsi produk

Menyoroti:

realtime GPS tracker

Mobile Phone GPS Tracker

Children Cell Phone GPS Tracker Quad Band GPRS / GSM Tracking Device G-P200

Product Description:

The G-P200 is a powerful GSM / GPS safety phone designed mainly for children. Its built-in GPS receiver has superior sensitivity and fast time to first fix. Its quad band GPRS/GSM subsystem supports 850/900/1800/1900 MHz. System integration is straightforward as complete documentation is provided for the full featured @Track protocol. The @Track protocol supports a wide variety of reports including emergency, geo-fence boundary crossings, low battery and scheduled GPS position (with cell-ID reporting).

Attention pls:

you need to got a server of yourself,we do not offer a tracking server of this,what we can offer is a set of unit and a protocol to you,also we would help you to analysize the protocol for you.Wish you can understand.

Features:

Quad band GSM/GPRS 850/900/1800/1900 MHz
Embedded full featured @Track protocol
Internal u-blox chipset
Internal 3-axis accelerometer for man down detection
Internal GSM/GPS antennas
Quick dial buttons with four preset numbers
Low power consumption, long standby time with internal battery
CE certified

Specification:

GSM Specifications

Frequency	Quad band: 850/900/1800/1900 MHz Compliant to GSM phase 2/2+ -Class 4 (2W @ 850/900 MHz) -Class 1 (1W @ 1800/1900 MHz)
GPRS	GPRS multi-slot class 12 GPRS mobile station class B
RMS Phase Error	5 deg
Max Out RF Power	GSM850/GSM900: 33.0±2 dBm DCS/PCS: 30.0±2 dBm
Dynamic Input Range	-15 ~ -108 dBm
Receiver Sensitivity	Class Ⅱ RBER 2% (-107 dBm)
Stability Of Frequency	< 2.5 ppm
Max Frequency Error	±0.1 ppm

GPS Specifications

GPS Chipset	u-blox All-In-One GPS receiver
Sensitivity	Autonomous: -148 dBm Hot start: -160 dBm Tracking: -162 dBm
Position Accuracy	Autonomous: < 2.5m SBAS: 2.0m
TTFF (Open Sky)	Cold start: 30s average Warm start: < 30s Hot start: < 1s

Interfaces

Power Button	Power on or off device
Volume Button	Two side buttons to increase/decrease volume
1/2/3/4 Button	Preset number button
SOS Button	SOS/Emergency button
Mini USB Interface	For external power and configuration
Indicator LED	GSM, GPS and battery status

General Specifications

Dimensions	75mm42.5mm17.5mm
Weight	65g
Battery	Li- Polymer 850 mAh
Standby Time	Without reporting: 190 hours 5 minutes reporting: 95 hours 10 minutes reporting: 110 hours
Charging Voltage	5V DC
Operating Temperature	-20℃ ~ +55℃

Air Interface Protocol

Transmit Protocol	TCP, SMS
Scheduled Timing Report	Report position and status according to preset time schedules
Geo-fence	Support up to 5 internal geo-fence regions
Low Power Alarm	Alarm when internal battery is low
Power On Report	Report when the device is powered on
Power Off Report	Report when the device is powered off
SOS/Emergency Alarm	SOS alarm when function key is pressed
Fall Detection	Man down alarm from 3-axis accelerometer
