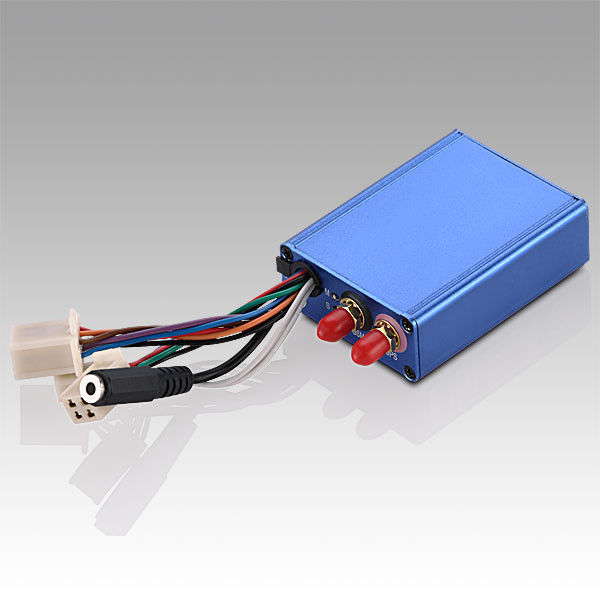

Fleet Management AVL GPS Tracker Device Aluminum Alloy With LCD Screen
GPS device with broad expansion ports has the features like multiple image monitoring, TTS voice repot, automatic report station, driving record (black box), LED screen to release Ads info, electronic lead sealing, temperature detecting, fuel consumption detecting, loaded detecting, operating data uploading and others.
Main Features:
● Based international newest chip, double core structure, powerful
● GPRS and SMS double channels, TCP and UDP double working mode
● Positioning based GPS reflected wave, assist with base station, strong capacity to prevent blocking to reduce the blind area
●Three proofing design, Quadruple protection for power source, 4 levels watchdog
● Low power consumption,
● Build-in high capacity backup battery.
● Broad intelligence interface to achieve automatic report station for bus, LED screen to release Ads
● Build-in TTS voice module to achieve the function of voice report.
● It can update remotely, easy to maintain
● Approved by 3C, and approved by national grade quality authentication.
Product Functions:
1.Signal detecting and control: 13 routes signal sensor, 17 vehicle status detecting, intelligence mode and forced mode to cut fuel/circuit, user-defined backup output control.
2. Alarm: 19 alarms, 3 modes of alarm.
3. Monitoring: vehicleautomatic tracking/monitoring, regions setting, geo-fence, GPS mileage statistics, blind area supplementary report, traces storage, base station positioning.
4. Road detecting: road detecting, road detecting calculation, departure alarm, speeding alarm, entry/exit station report…
5. Voice and phone call: hands free phone, remote listen in, voice reminding device, TTS voice report.
6. Fuel consumption detecting: build-in 2 routes AD input interface, equipped floater attenuation cable can measure fuel consumption, and equipped temperature can detect the temperature.
7. LED screen for release Ads info:Downlink Ads to screen via RS232 port and show Ads on the screen.
8. Image: monitor by image, store/record image, image transmission.
9. Remote update: main device’s program was support to remote download; user can renew the program remotely.
10. Protection:
Power saving mode: in this mode, GPS device’s working current will drop to20mA@12V when vehicle was in flameout.
Car battery over discharge protection: it will switch to supply power by backup battery if car battery’s voltage is very low (9.5V).
Over voltage protection: it will cut the external circuit to protect GPS device if the voltage exceeds limit value (36V), backup battery can work for 3h.
Performance Parameters:
|
Hardware features
|
|
Remark
|
|
Hardware framework
|
Adopt double core chip
|
|
|
Communication module
|
GPRS, SMS double channels module
|
|
|
Reliability design
|
Quadruple protection for power source, 4 levels watchdog
|
|
|
PCB protection
|
Three proofing protection
|
|
|
Technical specifications
|
|
|
|
Working voltage
|
9～33 V/DC
|
|
|
Limiting voltage
|
100V/DC
|
|
|
Car battery protecting voltage
|
Low: 9V (12V car battery) or 20V(24V car battery)high:36V
|
|
|
Power voltage of Anti-reversed connection
|
≥100V
|
|
|
Average working current
|
70mA DC 12V
|
|
|
Power saving mode
|
＜20mA DC 12V
|
|
|
Backup battery
|
Working time 3h
|
|
|
Dimension
|
88x 62.5x 32.5mm(L x W x H)
|
|
|
Canning material
|
Aluminum alloy
|
|
|
Main device weight
|
0.26kgnet weight
|
|
|
Interface
|
|
|
|
GPS antenna
|
SMA interface: －26dB cable length: 5m
|
|
|
GSM antenna
|
SMA interface: －3dB cable length: 3m
|
|
|
Vehicle detecting interface
|
9 routes signal input
|
|
|
AD detecting interface
|
2 routes AD signal input (for enhancement type II, III, IV)
|
|
|
Video interface
|
Serial port for video input, it can expand to 4 video input
|
|
|
Voice interface
|
2 route voice port
|
|
|
Data interface
|
2 route RS-232 serial port
|
|
|
Environment features
|
|
|
|
Vehicle spark noise immunity
|
Discharge voltage 10 kV～20 kV, discharge frequency 20 times/s～200 times/s
|
|
|
Electro-transient pulse noise immunity
|
4KV, experiment grade IV
|
|
|
Static discharge noise immunity
|
Contacting discharge 6KV, air discharge 8KV, experiment grade III
|
|
|
Conduction interference limits
|
Accord with the requirements of class B
|
|
|
Radiated interference limits
|
Accord with the requirements of class B
|
|
|
Temperature characteristic
|
Working temperature -20 ℃～+60 ℃
Limiting temperature -35 ℃～-20℃, +60℃～+70℃
|
|
|
Humidity
|
5％～95％ non-condensation
|
|
|
GPS features
|
|
|
|
Tracking sensitivity
|
－159dBm
|
|
|
Positioning time
|
Cold boot less than 34s; hot boot less than 3.5s; warm boot less than 33s, re-capture time 1.0s
|
|
|
Positioning accuracy
|
10m2D RMS
|
|
|
Speed accuracy
|
0.1m/s
|
|
|
BS positioning accuracy
|
100m
|
|
|
GSM/GPRS features
|
|
|
|
Frequency
|
EGSM900/GSM1800
|
|
|
Transmitting power
|
EGSM900:CLASS4(2W), GSM1800:CLASS1(1W)
|
|
|
GPRS
|
GPRS multi-slot class8－class 10
GPRS mobile station class B
Downlink speed: max 85.6Kbps
Uplink speed: max 42.8Kbps
|
|
|
Data storage
|
|
|
|
Trace record storage
|
50, 000 trace record
|
|
|
Buffer memory for supplemental report (blind area)
|
500 (points) tracking info
|
|
|
Road detecting storage
|
Can set 8 roads’ data, each road can be constituted by 1023 broken lines and 256 stations
|
|
|
Attribute areas storage
|
Can set 108 rectangle areas (can set 20 polygon areas)
|
|
|
Image storage
|
It can store more than 200 pictures locally
|
|
Product Configuration:
1. Standard configuration
1) main device 1 pcs
2) GSM antenna 1 pcs
3) GPS antenna 1 pcs
4) Installation cables 1 set
5) Usage instructions
6) Warranty card
7) Certification
2. Optional configuration
1). Hands free speaker
2). Handset
3). Listen in mic
4). LCD
5). Accessories (relay) for cut fuel/circuit)
6). Camera
Big mother camera
Big son camera (can multi-son camera)
7) Switching cable 0740-i-46 for camera
8). Accessories for fuel detecting (floater attenuation cable)
9). Accessories for temperature detecting
