Vehicle Car GPS Tracker Real Time



Vehicle Car GPS Tracker Real Time Locate alarm with car



gps tracker system

Specifications:

Size	137*78*29mm
Working Voltage	DC:6.3~40V
Input Fuse	5A
Working Temperature	-40~85°C
Humidity	10% to 90%
CPU	TI:MSP430F5419(100MHz)
GSM Module:	Tri-mode:850/900/1800/1900MHz     Tally with: GSM phase 2/2+     -Class 4 (2W @ 850/900MHz)     -Class 1 (1W @ 1800/1900MHz)     Max RF Output: 33.0dBm±2dBm     Dynamic Input Range: -15 ~ -102dBm     Receiving delicacy: Class  RBER≤2%(-102dBm)     Frequency Stability: > 2.5ppm     Max Frequency Deviation: ±0.1ppm     RMS Deviation:  ≤5deg
GPS Module	GPS chip set: SiRF Star III     Frequency: L1, 1575.42 MHz     Number of Channel: 20     Reacquisition: 0.1 sec, average     Hot boot: 2 sec., average     Warm boot: 38 sec., average     Cold boot: 44 sec., average     Altitude limit: 18000 m     Velocity limit: 515 m/s
Input I/O	3
RS232	2
Microphone	Inside Mic without phone
earphone	No
Current	Not working Current 16mA     working Current:60~150mA     Charging current: Max<500mA
Battery	Lithium battery :400~800mA( working time is about 3.5~8 hours)

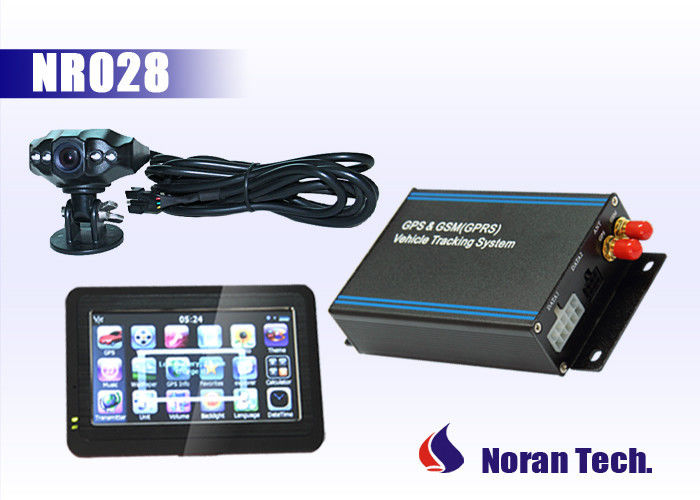

Accessories	Device, Connecting cable ,GPS antenna ,GSM antenna, Relay, Camera



Features:



1. Use Google map, Global free

2. Take photo of the vehicle, and Image transmit to internet.

3. Fuel Check / monitor

4. Real-time locating / inquiry

5. SOS button/Power-cut Alarm

6. Listen by telephone

7. E-fence/Over-speed Alarm

8. Compatible original anti-theft

9. Remote control engine





Optional features:

1. Support vibration sensor

2. Add temperaturer sensor

3. Support TCP/UDP/HTTP protocol

4. Support fuel anti-theft alert

5. Support 2 fuel sensors at most

6. Support fuel theft early sound/light warning

7. Support 2 cameras at most

8. Support RFID Reader

9. Support customized firmware



Real time location tracking:

Track asset and vehicle location on real time by SMS, PC website tracking system and android app



Vehicle history trace line :

You can check the vehicle history drove line on last 90days, choose every day and time you want, you can see the vehicle location, speed, mileage days ago.



Geo fence alarm / drive area limit alarm:

Set up a Geo -fence for the GPS to monitor it`s movement area, the GPS will alarm when vehicle out of this area.



Over speed alarm:

Real time remote monitor driver behavior, send alarm information to manager when vehicle over speed.



Audio monitoring:

You can call the GPS device and listen the vehicle inside voice when driver unknow. The GPS device not vibrate or ring.



Fuel level check:

Remote real time monitoring vehicle fuel level on website tracking system, and alarm when fuel level abnormal.



SOS emergency alarm:

Press SOS panic button, the GPS device will send alarm message to the alarm number by SMS, and also alarm on tracking website system.



Auto track:

Auto track by SMS or online positioning platform; Mileage statistics; ACC checking



Power cut off alarm:

When GPS device be remove from vehicle, or power with be cut off, it will send alarm to user by SMS and system.



Remote engine / oil cut off:

You can remote cut off the vehicle engine or oil via SMS and online website system.



GPS & A-GPS(LBS—location based service):

Using Global Satellite Positioning technology, LBS(Location Based Service) technology(while it’s can’t location via GPS, the devices will get the location information via LBS automatically)



Camera take photo monitor:

Take photo by digital camera, to check what happened in the vehicles.



ACC detection:

Check vehicle ignition condition.



SMS tracking location:

Remote real time get vehicle location by SMS. Send an SMS to the GPS, it will reply a link with vehicle location and speed informations.



Fleet management:

You can manage all vehicles on the website tracking software at same time.



History daily report:

Check the vehicle work information in whole day, the location in anytime, the speed, time, ACC condition, stop time, stop place etc.



Vehicle stop report:

Check vehicle stop how long time and stop place.



Android app:

You can real time tracking vehicle on our android app, one account can check all of your vehicles.



UDP / TCP / HTTP:

Vehicle GPS tracker device support communication protocol: UDP, TCP and HTTP. If you have your own tracking server, our device can work on your server.



Optional

Flash memory:

For some GSM signal dead zone, the data cannot transmit on real time, you can add a flash memory on the device, the data will be storage on the flash memory then transmit to server when signal good.



RFID:

Control fleet cost, driver identification, each driver should push his ID card on the RFID reader, check identity then he can drive this vehicle.

For school bus, each students have a card, when get in, they need push their card to record information.



LED Advertising Screen:

It can display the message which send from the control center.



Temperature monitor:

This sensor very good for frozen car, on the website tracking platform, you can monitor the frozen car temperature on real time, and can set alarm.
