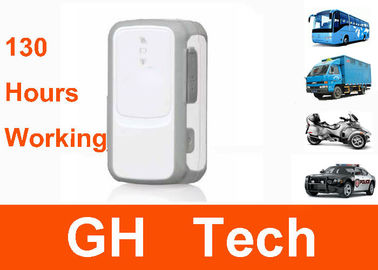

Truck SMS GPS Tracker

Truck SMS GPS Tracker
Truck SMS GPS Tracker

Large Image :  Truck SMS GPS Tracker

Product Details:
Place of Origin: China
Brand Name: GH
Certification: CE ROHS
Model Number: G-T200
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Packaging Details: 50PCS/CARTON
Delivery Time: Sample deliver within 3 days
Payment Terms: T/T West Union Paypal
Supply Ability: 50000pcs/month
Detailed Product Description
High Light:

pocket GPS Tracker


micro gps tracker

130 hours continous working portable gps tracking device car gps tracker system asset tracker truck

tracker G-T200



Main Feature:


Water Resistant

Full Power Management

I/O Interfaces to Connect Directly to Vehicles

Over 200 Days Standby Time with External Battery





  • Water resistant
  • Quad band GSM/GPRS 850/900/1800/1900 MHz
  • Embedded full featured @Track protocol
  • Internal u-blox chipset
  • Internal GSM/GPS antennas
  • MMCX type RF connector for external GPS antenna
  • Low power consumption, long standby time with internal battery
  • Internal 3-axis accelerometer for power conservation and motion detection
  • Full power management, can be connected to external DC power or battery
  • CE/FCC/PTCRB/Anatel certified




Truck SMS GPS Tracker 0

GSM Specifications


Quad band: 850/900/1800/1900 MHz

Compliant to GSM phase 2/2+

- Class 4 (2W @ 850/900 MHz)

- Class 1 (1W @ 1800/1900 MHz)


GPRS multi slot class 12
GPRS mobile station class B

RMS Phase Error

5 deg

Max Out RF Power

GSM850 / GSM900: 33.0±2 dBm

DCS / PCS: 30.0±2 dBm

Dynamic Input Range

-15 ~ -108 dBm

Receiver Sensitivity

Class Ⅱ RBER 2% (-107 dBm)

Stability Of Frequency

< 2.5 ppm

Max Frequency Error

±0.1 ppm


GPS Specifications

GPS Chipset

u-blox All-In-One GPS receiver


Autonomous: -148 dBm

Hot start: -160 dBm

Tracking: -162 dBm

Position Accuracy

Autonomous: < 2.5m

SBAS: 2.0m

TTFF (Open Sky)

Cold start: 30s average

Warm start: < 30s

Hot start: < 1s

Truck SMS GPS Tracker 1


Digital Inputs

Two digital inputs

One positive trigger for ignition detection

One negative trigger input for normal use

Digital Output

One digital output, open drain, 150 mA max current drain

Power Button

For power on and power off, can be disabled by OTA using @Track protocol

Function Button

Emergency alert or instant geo-fence

Mini USB Interface

For external power and configuration

MMCX  RF Connector

For external GPS antenna

Indicator LED

GSM, GPS and battery status


General Specifications





Internal Battery

Li-Polymer 1300 mAh

Standby Time

Without reporting: 400 hours

5 minutes reporting: 130 hours

10 minutes reporting: 150 hours

Water Resistance

IPX5 compliant

Charging Voltage


External  Battery Voltage

3.5V to 4.5V DC

Operating Temperature

-20℃ ~ +55℃


Air Interface Protocol

Transmit Protocol


Scheduled Timing Report

Report position and status according to preset time schedules


Support up to 5 internal geo-fence regions

Low Power Alarm

Alarm when internal battery is low

Power On Report

Report when the device is powered on

Power Off Report

Report when the device is powered off

Motion Detection

Motion alarm based on internal 3-axis accelerometer

SOS/Emergency Alarm

SOS alarm when function key is long pressed



Q: Hello, Can you help me ? What’s a gps tracker?

A: GPS Tracker is a unit which intergrated with GPS module and GSM module,which can transmit the data to a tracking platform/server ,and then you can see your location on  the server wherever  you are,once there is a internet then you can track the unit and the keeper.

Q: How to use such a unit?

A:First of all, unfold the units pls ,then insort a SIM card into the unit where there is a SIM card slot. then turn on and get access to the platform with your username and password then the GPS Tracker for pet/cat /kids would work.

Q: What is the quality assurance?

A: 1 YEAR quality assurance

Q:Which shipping partner is available to UK?

A: DHL, UPS, TNT, FEDEX, EMS are okay. Which shiping cost is cheaper and speed is good, i will suggestion to you. 3-4 days can arrive UK.
