Rugged and Compact Industrial 4G Router with GPS / Dual SIM , Industrial WIFI Router

Rugged and Compact Industrial 4G Router  with GPS / Dual SIM , Industrial WIFI Router
Rugged and Compact Industrial 4G Router  with GPS / Dual SIM , Industrial WIFI Router

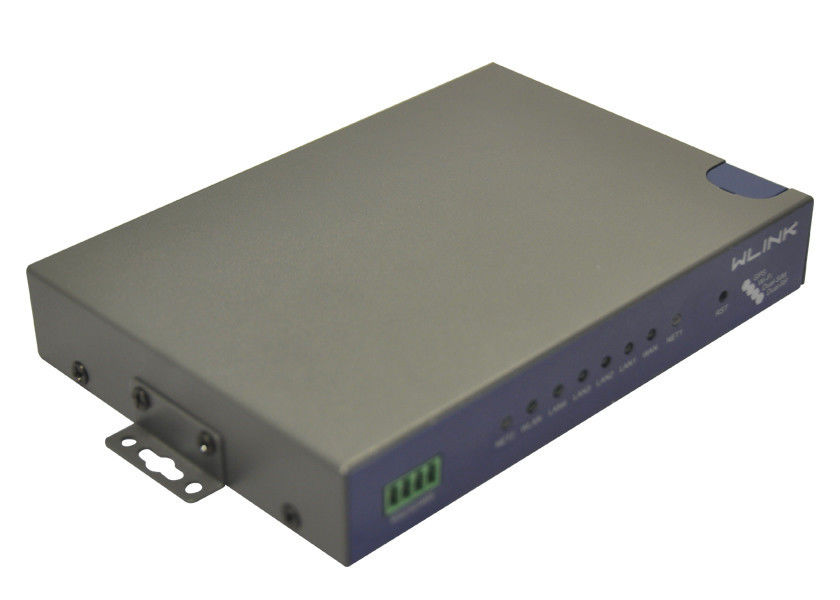

Large Image :  Rugged and Compact Industrial 4G Router with GPS / Dual SIM , Industrial WIFI Router

Product Details:
Place of Origin: CHINA
Brand Name: WLINK
Certification: CE, ROHS
Model Number: WL-R520LC-dg
Payment & Shipping Terms:
Minimum Order Quantity: For WLINK brand, MOQ 1 unit, For OEM MOQ 50 units
Price: negotiation
Packaging Details: One set to one box, 20 units boxes to one carton
Delivery Time: Stock for small quantity, 5-7 working days for bulk order
Payment Terms: TT, L/C, Paypal, Western Union or Cash in advance
Supply Ability: 5000 sets / Per month
Detailed Product Description
Products Name: 4G LTE Router GPS: Supported
SIM Slot: Dual SIM Slot Power Cosumption: 320mA@+12VDC
Type: Industrial Grade Interface: 4*LAN, 1*WAN, 1*RS-232
Wireless Standard: 802.11N Application: M2M Communication Field
High Light:

M2M 4G Router


Router 4G Industrial

4G High Speed Industrial Router Rugged and Compact with WiFi , GPS and Dual SIM



WLINK WL-R520LC-dg 4G Route under R520 Series of cellular routers are a part of a comprehensive portfolio of cellular connectivity products optimized for M2M (machine-to-machine) communications. With the Industry’s most cost effective approach to remote device management and shared design approach across multiple cellular technologies, it provides the lowest total cost of ownership to our customers.

The WL-R520LC-dg cellular routers also offer a long, stable lifecycle, an important consideration for M2M solutions. WLINK R520LC-dg industrial router series are basically designed for stationary applications, mostly mounted on DIN rail shelves. The routers provide multi-WAN-LAN-communication and functions such as data acquisition, protocol conversion, local data processing and storage. The wide range of implementations include remote management and condition monitoring, CCTV, ATMs and Digital Signage.

The router also come with GPS capability, enable it ideal for fleet tracking or access management.


With dual SIM function, WL-R520LC-dg  router could backup network between the two SIM cards to ensure
continuous connection. The router also features with GPS capability, enable it ideal for fleet tracking or access management.


Basic Feature

  • Industrial robust design and compact metal housing
  • GPS capability for fleet management or other tracking application
  • Dual SIM available for redundancy
  • GPS Supportted
  • Ultra security, VPN: PPTP, L2TP, GPE, IPSec VPN
  • High data speed 4G network, 3G and 2.5G backward compatible
  • Strong electromagnetic interference Resistance
  • 802.11b/g/n Wi-Fi support, 150Mbps data rate
  • Heat endurance and radiation ability
  • Built-in watch dog, Multi-link detection
  • High Reliability: Hardware l ink self-recovery
  • WAN port support PPPoE, static IP, DHCP client.
  • Failover or Backup between WAN and Cellular
  • Always online, reboot automatically if disconnected to ensure continual connection
  • Support APN and VPDN wireless private network access in
  • LCP/ICMP/flow/heartbeat check, ensure network usability
  • Web/CLI/SSH/Management platform support, easy configure
  • SNMP network management, NTP support
  • Local & remote management (configuration, status, upgrade firmware)
  • Supports DHCP Server
  • Supports DNS proxy and Dynamic DNS (DDNS)
  • Supports timing operation
  • Supports LED status indication
  • Shock and vibration resistant

   Advance Optional Feature

  • Dual SIM Dual Module optional available for fast switch and backup between two network
  • MIMO antenna for 4G to get higer speed and better performance
  • DTU serial communication function optional
  • M2M Management platform software option al available
  • Optional support to control by SMS
  • OpenVPN Optional
  • OpenWRT Optional
  • PPTP Sever optional
  • Schedule reboot optional
  • Customized acceptable



Mobile Network

◎ FDD:1800/2100/850MHz
    TDD: 1900/2300/2600MHz

◎ HSPA 3G 850/900/1900/2100MHz


Ethernet Standard

◎ IEEE 802.3
◎ IEEE 802.3u


◎ 4*LAN, 1*WAN (5xLAN optional)
◎ 1× RS-232 console port(optional)
◎ 3× SMA-K antenna interface
◎ 2× Standard SIM/R-UIM interface
◎ 1× Standard DC power interface


◎ Power
◎ NET
◎ WAN
◎  LAN (LAN1 ~ LAN4)

Route Protocol

◎ Static route
◎ RIPv2 / OSPF dynamic route



◎ 7.5 ~ 32VDC


◎ Local or remote web browser (IE v8 or above)
◎ CLI / Telnet command
◎ M2M management platform (optional)
◎ SSH configure (optional)


◎ Standard: IEEE 802.11b/g /n
◎ WEP, WPA and WPA2 encryption
◎ Standard 150Mbps, 300Mbps optional
◎ AP, Client, station, bridge mode support

Firewall & Filter

◎ IP packet / Domain / MAC filter



◎ IPSec
◎ PPTP/L2TP client


◎ Idle: 80mA@+12VDC
◎ Single Module Communications: 320mA@+12VDC


◎ Dimension: 176mm x 105mm x 25mm  (not including antenna)
◎ Weight: 510g
◎ Operation temperature: -30 + 70
◎ Store temperature: -40~ + 85

◎ Related humidity: <95% (non-condensing)
◎ Guarantee: one year


EN 300 328 v 1.7.1
EN 301 489-17
EN 301 489-1
EN 301 511
EN 301 908-1
EN 301 908-13

EN 60950-1,
EN 55024:2010              EN 61000-3-2
EN 61000-3-3:2008
EN 62311: 2008
EN55022: 2010/






Data Collection and System Supervision

  • Extra-high voltage equipment monitoring, Running water, gas pipe line supervision
  • Centralized heating system supervision, Environment protection data collection
  • Flood control data collection, Alert system supervision
  • Weather station data collection, Power Grid, Oilfield
  • Light Supervision, Solar PV Power Solutions

Financial and Department

  • Connection of ATM machines to central site
  • Vehicle based bank service
  • POS
  • Vending machine
  • Bank office supervision


  • Traffic control Video
  • Surveillance Solutions


  • Bus WiFi
  • WiFi on Board
  • Vehicle video surveillance
  • GPS tracking
  • Fleet tracking and management
  • Bus Advertising


  • Remote Office Solution
  • Remote Access Solution

Competitive Advantage:

  • WLINK Router are Industrial grade design which can endure high and low temperature and other extreme application environment
  • WLINK always provide the best pre-sale and after sale service to customer
  • WLINK has ability to produce a quality product at a economic cost to meet the market and project requirement.
  • Strong R&D Team who have 10+ year experience in M2M elluclar field

Rugged and Compact Industrial 4G Router  with GPS / Dual SIM , Industrial WIFI Router 0
