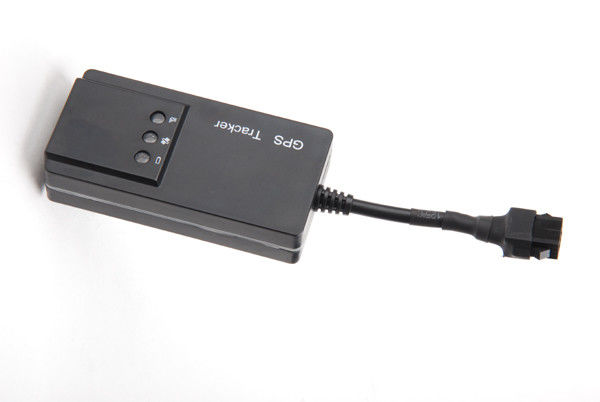

Professional Portable Motorcycle GPS Tracker Double Frequency With Vibration Sensor

Professional Portable Motorcycle GPS Tracker Double Frequency With Vibration Sensor
Professional Portable Motorcycle GPS Tracker Double Frequency With Vibration Sensor Professional Portable Motorcycle GPS Tracker Double Frequency With Vibration Sensor Professional Portable Motorcycle GPS Tracker Double Frequency With Vibration Sensor Professional Portable Motorcycle GPS Tracker Double Frequency With Vibration Sensor

Large Image :  Professional Portable Motorcycle GPS Tracker Double Frequency With Vibration Sensor

Product Details:
Place of Origin: Guangdong China
Brand Name: Dragon
Certification: CE, FCC, IP65
Model Number: V-MT004
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: USD 48.00
Packaging Details: Cardboard
Delivery Time: 5 working days
Payment Terms: Pay in advance
Supply Ability: 20K/Month
Warranty:: FREE ONE YEAR WARRANTY
Detailed Product Description
Voltage: 9-70V DC Dimension: 90.0(L)x45.0(W) X13.5(H)mm
Weight: 80g Humidity: 5% ~ 95% RH
Working Temperature: -20℃ ~ +70℃ Communication Frequencies: 850MHz/900MHz/1800MHz/1900MHz
GSM: 850/900/1800/1900MHz GPRS: Class 12, TCP/IP
Temperature: -20°C ~ +70°C
High Light:

gps dog tracker

,

gsm gprs gps tracker

Professional Portable Motorcycle GPS Tracker Double Frequency With Vibration Sensor







1. Functions


    GSM 850/900/1800/1900MHz
    Voltage: 9-70V DC
    GPS location, GPRS timing report
    Inquires the position by SMS or mobilephone or PC
    Built-in vibration sensor, vehicle anti-theft
    ACC ignition signal detection, vehicle state hint
    Can remote control vehicle cut-off oil or electric
    One SOS key
    Remote monitorin;
    Power cut-off alarm




2. Specification


  GSM: 850/900/1800/1900MHz
  GPRS: Class 12, TCP/IP
  Voltage: 9-70V DC
  Current:≈22mA(12vDC)
  ≈12mA(24vDC)
  GPS fixed time:  Cold start 30sec(open sky)
  Warm start 29sec(open sky)
  Hot start 5sec (open sky)
  GPS fixed precision: 10m (2D RM)
  Temperature: -20°C ~ +70°C
  Humidity: 5% ~ 95% RH
  Dimension: 90.0(L)x45.0(W) x13.5(H)mm
  Weight: 80g

New arrival mini gps tracking device for vehicle/car/motorcycle and others

New arrival gps tracker for motorcycle





Standard cases

motorcycle gps tracker g-mt005.jpg

3. Installation comands

  • Prepare
    • SIM Card:  Please use a GSM SIM card.
    • Before insert the SIM card, please make sure to turn off the device.
    • Please make sure the GPRS can be used, if not, please connect Service Provider.
    • Please make sure the Caller ID can be used.
    • Then insert the SIM card.
  • Installation

Please pay attention to the following matters:

  • Concealed installation for avoid the thieves damage.
  • Avoid install together with the RF source, such as reversing radar, alarm and other vehicle
  • communication equipment.
  • Can use ribbon or wide sponge strength double-faced adhesive stick to fix.
  • Equipment with GSM antenna and GPS antenna, installation shall ensure that face up (skyward),
  • and above no metal barrier shield, suggest installation position:

     Front windshield decorative below the covert,

Front panel (skin for non-metal material) around the shadow

Rear window below decorative

3.3 Relay connection comands

Oil pump cut-off relay connection method:Coil ends connection were white line (85) and the yellow

line (86), white line (85) joint car positive (+ 12 v), the yellow line (86) joint device relay control line.

The vehicles on the tubing string attached to oil pump, cut the wire of oil pump positive, the wire of oil

pump positive joint the normally closed end of the relay (green line 87 a), the other end joint the relay’s

other end (green line 30).

Note: this product with standard for 12V relay. Fit for installation on 12V car battery vehicles.

If the battery of the vehicle is 24Vs battery, need to be choose 24V relay.
