Portable Vehicle GPS Tracking Device Truck Fleet Management GPS Tracking Tool





Portable Vehicle GPS Tracking Device Truck Fleet Management GPS Tracking Tool







1 Introduction



1. This product is based on GSM / GPRS network and GPS satellite positioning system, short message or  contact each other through the remote targets or monitoring,

2. It's the most technologically advanced GPS and AGPS double positioning, built-in high-capacity battery, 3. Long standby 15 days, strong magnetic adsorption free installation of portable GPS locator.




2 Applications



• Vehicle rental / Fleet Management
• Outdoor Sports
• child / elderly / disabled / custody of valuables
• Personal Security
• Personnel Management
• Real time gps tracking for vehicle
• Bank money safety

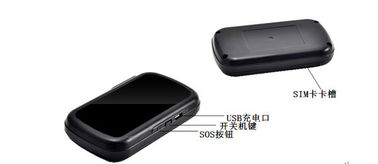

3 Hard ware









4 Specifications Description





Content	Spec
Dimension	105mm* 60mm * 20mm
Weight	144g
Network	GSM/GPRS
Frequency	850/900/1800/1900Mhz
Chip	UBLOX
GSM/GPRS moduel	SIMTK6260
GPS sensity	-159dBm
GPS accuracy	5 meters
Start time	Power start  45-120S General start  35S Software start 1S
Car charger voltage	12—24V  input       5V   output
Handheld charger voldtage	110－220V  input        5V   output
Battery	Chargeable changeable 3.7V 4400mAh Li-ion battery
Standard time	720 hours
Store Temp	-40°C to +85°C
Work temp	-20°C to +55°C
Humidity	5%--95% non-condensing





















































































5. Note Attention pls



• Confirmation phone cards, there can make calls, SMS and  GPRS Internet access.
• Make sure there is enough money
• Make sure Caller ID has been opened to confirm and close the call transfer.

• Before use this unit at the first time,make sure the unit to be charged  over 12 hours

• Have insort the GSM  card correctly





5.1 SIM card setting





Please make sure your SIM card is no call transfer and call display and PIN code off. SMS must be in plain text format, does not recognize the PDU format.



5.1.1 Open the SIM card chip soft stuffed  5.1.2 SIM card slot                 5.1.3 advancing down soft plug cover

5.2 Battery and Charger



When charging the battery for the first time, please charge 8-12 hours. Please use the manufacturer unified configuration and battery charger, standard battery is a lithium battery, and can be fully charged in about 720 hours standby normal, normal state of battery charge time is 3-5 hours.


Letter:

a: The Li-ion battery contains harmful chemicals and may burst, please do not bump, puncture it and into the fire.
b: Please charge it in time to keep it working normally.





5.3Start Unit





1.SIM card is inserted properly
2.The unit outdoors and turn on the key, until the lights are on.
3.In the first use, please initialize to their default settings. (Please refer to the User Manual 5.4)
4.In 10-40 seconds, the device will search for GSM and GPS signals and begin normal work under normal status indicator devices will remain flashing once every 3 seconds.
5.When this unit receives GPS signals normally, you can use it and any one instruction set





 5.3.1 Green Light:GPRS





Cituation	Status
Flashing	GSM/GPRS normal
All on	No GPRS signal
Not on	Unit default or in sleep mode



5.3.2Blue light:GPS



Cituation	Status
Flashing	GPS normal
All on	No GPS signal
Not on	Unit default or in sleep mode



 5.3.3 Red light:Power



Cituation	Status
Red light is all on	In charging
Flashing	Low battery
Red is off	Full recharged or Full battery















F A Q



Q: Hello, Can you help me ? What’s a gps tracker?

A: GPS Tracker is a unit which intergrated with GPS module and GSM module,which can transmit the data to a tracking platform/server ,and then you can see your location on  the server wherever  you are,once there is a internet then you can track the unit and the keeper.

Q: How to use such a unit?

A:First of all, unfold the units pls ,then insort a SIM card into the unit where there is a SIM card slot. then turn on and get access to the platform with your username and password then the GPS Tracker for pet/cat /kids would work.

Q: What is the quality assurance?

A: 1 YEAR quality assurance

Q:Which shipping partner is available to UK?

A: DHL, UPS, TNT, FEDEX, EMS are okay. Which shiping cost is cheaper and speed is good, i will suggestion to you. 3-4 days can arrive UK.
