Product Details:
Payment & Shipping Terms:
|
Operation System: | Linux | Control Mode: | IR Remote Control |
---|---|---|---|
Video Input: | 4-ch | Video Output: | 1-ch |
Display Mode: | Single/ 4-ch Video | Video Compression: | H.264 |
Video Signal: | NTSC,PAL | Image Format Mode: | CIF/HD1/D1 Optional |
Audio Input: | 4-ch | Operation Interface: | Graphical User Interface(OSD Menu) |
I/O Interface: | High Level Alarm|Low Level Alarm|Negative Voltage Alarm | ||
Highlight: | 4 ch digital video recorder,4 ch dvr recorder |
WIFI HDD Mobile DVR Portable 2TB With SD Card
Description:
• 4-Channel Full D1 HDD Mobile DVR;
• D1,HD1,CIF as optional.
• Linux operation system,H.264 video compression, Dual streaming;
• Support 2.5" 1TB HDD, and support SD card Max 128GB;
• Very good Vibration resistance solution and good metal housing;
• Power-off working time can still work 8 seconds and 30 minutes with built-in Patent UPS power-supply;
• Support external vehicle mobile data protected box for data protection.
• External WIFI(IEEE802.11n, Up to 300 Mbps physical data transfer speed, satisfy huge data Transmission);
• 3G(WCDMA / EVDO/HSPA(TD-SCDMA),GPS,WIFI(built-in and external) is optional.
Product Technical parameters:
System |
language |
Chinese/ English |
|
Operation system |
Linux |
||
Operation interface |
Graphical User interface(OSD menu) |
||
Password |
User /Admin password |
||
Control mode |
IR remote control |
||
Video |
Video input |
4-ch video composite input |
|
Video output |
1-ch composite output |
||
Display mode |
Single/ 4-ch video |
||
Video compression |
H.264 Main profile PAL:100f at D1/s, NTSC: 120f at D1/s |
||
Video Signal |
NTSC,PAL |
||
Audio |
Audio input |
4-ch audio input |
|
Audio output |
1-ch audio output |
||
Recording mode |
Audio & Video sync Recording |
||
Phone |
Support IP call and analog voice call |
||
Image processing & storage
|
Image format mode |
CIF/HD1/D1 optional |
|
Video stream Standard |
ISO14496-10 |
||
Video bitrate |
CIF: 1536Kbps ~ 128Kbps,4 levels optional. Highest:0 level; Lowest: 3 level HD1: 2048Kbps ~ 512Kbps,4 levels optional. Highest:0 level; Lowest: 3 level D1: 4Mbps ~ 1Mbps,4 levels optional. Highest:0 level; Lowest: 3 level |
||
Audio Bitrate |
8KB/s |
||
Storage |
Built-in a SATA HDD, support HDD Max 1TB; And built-in a SD card, Support SD card Max 128GB; |
||
Alarm |
Alarm input |
8 alarm input, below 4V is low level alarm, above 4V are high level alarm |
|
Alarm output |
2 alarm output, output high level:12V |
||
Communication Interface |
RS485 Interface |
Support 3-RS485 interface |
|
RS232 Interface |
Support 1-RS232 interface |
||
WIFI Interface |
Support RJ45 interface external 802.11b/g |
||
USB interface |
Include 2 USB interfaces,1 USB interface connect with external Vehicle Black data box, another USB interface to upgrade software and copy data. |
||
Audio&Video interface |
Support Audio and Video output |
||
Acceleration Sensor |
Built in acceleration G-Sensor |
||
Module |
GPS |
GPS module. GPS Graph and GPS speed can be read in coding flow, and can be uploaded via wireless |
|
3G |
WCDMA / EVDO/HSPA(TD-SCDMA) module |
||
WIFI |
RJ45 interface external WIFI, IEEE802.11n, Up to 300 Mbps physical data transfer speed, satisfy huge data Transmission; |
||
Software |
PAS(Playback Analysis Software) |
Playback Recording on PC, and analyze the vehicle recording information. |
|
CMS(Center Management Software) |
Center management software to meet Video preview, upload and central command and parameters configuration, etc. |
||
Software upgrade |
U-disk upgrade directly. |
MDVR Electric Specifications
Items |
Parameters |
Specifications |
Power input |
8—36V |
Input voltage:+8V~+36V, When long-term under 8V, or long-term over 36V, Auto power off, enter protected mode. |
Power output |
12V |
12V(+/-0.2V), Max:3A. |
Power-off working time |
8S |
If main power supply is off, MDVR can continue running 8 seconds. If connect built-in Patent UPS power-supply, MDVR can continue running 30 minutes. |
Vehicle key signal |
≤4V |
OFF |
≥5V |
ON |
|
Video input impedance |
75Ω |
75Ω for each video input impedance |
Video output Volt |
2Vp-p |
Input 2Vp-p CVBS analog signal, reveal device input need 75Ω impedance to fit |
I/O interface |
0—4V |
Low level alarm |
4V above |
High level alarm |
|
|
-4V below |
Negative voltage alarm |
Operating Temperature |
-25℃-85℃ |
Under well-ventilated environment condition. |
Body Dimension |
186(W)mm x 61(H) x 192(L)mm |
Professional 4-CH HDD Mobile DVR External WIFI ,full D1, 8KB / s , MDVR8104H
Product size:

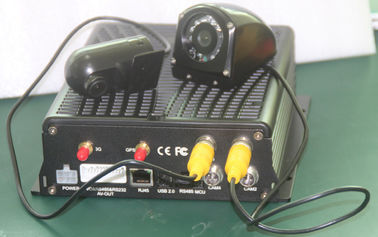

Product work diagram:
Advantage:
Remote view in real time recording on Iphone/Ipad/Android phone/PC once MDVR is built-in 3G.
Support Intercom and Alarm as optional:
Playback all video file and GPS tracking(Playback Analysis Software).
Center Mangement Software:
CMSViewer(remote view in realtime recording once mobile DVR is built-in 3G):
