Highlight: | car tracking device,wireless GPS Tracker |
---|

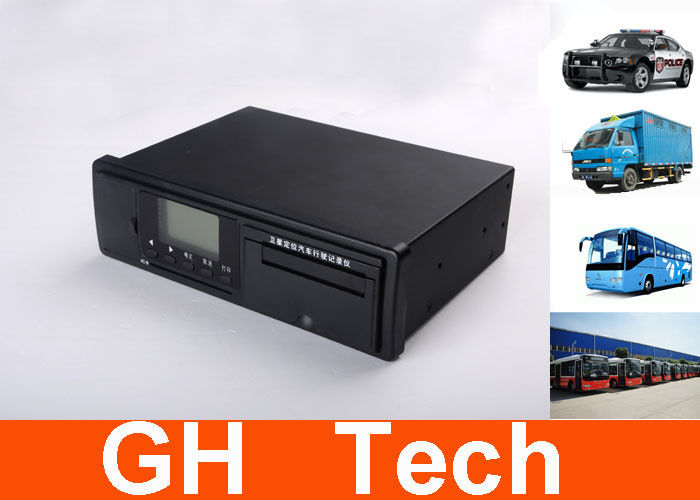

Multi-Center Access Vehicle GPS Tracking Device , Scalability Database GPS Tachograph System
I Product overview
1. G-T004, GPS vehicle Driving data recorder, commonly known as GPS / Compass vehicle Driving data recorder. Vehicle speed, time, and other status information about the mileage traveled by the vehicle for recording, storage and through the digital data output interface electronic recording device.
2. According to internal needs integrated GPS / Compass positioning module and GPRS / CDMA communication module, through GPRS / CDMA upload location information, speeding, fatigue and doubtful data, issued a text message, upload pictures.
3. Terminal using the car stereo host bits (DIN standard) size standard embedded structure design, integrated structure, in line with GB GB-T 19056-2003 and the Ministry of Transportation Ministry of standard JT / T 794-2011 standard, is a new generation of integrated vehicle traveling data recorder multimedia satellite set Bit-vehicle wireless terminals.
4. Applications:
With easy installation, stable and reliable, cost-effective, low power consumption, external emergency button, TTS text broadcast, camera, advertising screen, suitable for the logistics industry, long-distance passenger transport, transport of dangerous goods, bus companies, car rental, taxis and other industries.
II Product Features
1 Integrated structure design
Integrated design structure that integrates functions vehicle traveling data recorder and vehicle positioning terminal, reasonable design, to achieve the purpose of the recording.
2 Terminal using the car stereo host bits (DIN standard)
Size standards body uses a standard DIN size, easy to use DIN car reserved space to install, view, and collect data is also very convenient. It also designed a fixture in the installation space is occupied can be fixed in the car driving recorder on the table.
3. User-friendly display interface
Direct display the status of satellite positioning, communications network status, vehicle information, etc. in the main interface
Scalability
4 Scalability
May need to add extended functionality according to the customer: an imaging camera, voice broadcast, call the function, the function off the oil, fuel acquisition function, LED advertising screens and other interfaces.
5. High performance
Vehicle terminal based on ARM-based embedded operating system developed using ferroelectric memory. Has the advantage of handling read and write speed, unlimited write data, long data retention time.
III Product Parameters
Host size | 191 * 147 * 58 mm |
Operating voltage: | 9V-36V DC |
Working Current: | 60mA-150mA (24V / DC) |
Color: | Black |
Weight: | 670g |
GSM module: | 850 / 900 / 1800 / 1900 MHz |
GPS positioning module | SIRF Ⅲ |
GPS positioning time: |
Cold Start:45s Warm Start :22s Hot Start:2s |
GPS positioning accuracy: | <10m |
Working Current | 60mA-150mA (24V / DC) |
Temperature range: | -35 ℃ ~ 70 ℃ |
Humidity: | 5% -95% (non-condensing water vapor) |
Backup battery: | 3.7V / 500mAH lithium battery |
:
:
:
IV Main Funtion
1, with GB recorder full functionality. Installation of GNSS satellite positioning system, both can accurately record the speed, but also can record the trajectory and accurate Beijing car.
2, can be achieved time, record the date and time of driving, storage, collection; Beijing can provide the date and clock, and in the way the year, month, day of recording real-time date, hours, minutes, seconds, recorded in real-time clock.
3, travel management functions
a) Daily Statistics
Able to account for every day mileage, travel time and accumulated mileage.
b) per minute speed record
Travel status information can be recorded in the most recent 360 hours, that is in the process of moving vehicles and real time corresponding to the average speed per minute values within the interval.
4, accident prevention function
a) speeding alarm
When the vehicle speed exceeds a pre-set speed value (which can be set up, such as 120km / h), the recorder will belong to the first time issued a device such as a buzzer, text broadcast, etc. "drip, drip ..." or by outside "You have speeding, please slow down "sound the alarm to alert the driver slow down, and the first time the contents of the speeding record uploaded to the monitoring center.
b) speed record
When the vehicle speed exceeds the overspeed value, the recording device can record the number of speed, the start time of speed, duration, maximum speed, the driver code.
c) fatigue driving alarm and recording functions
When the same driver's continuous driving close to the set value (national standard continuous driving over four hours of fatigue driving, for lack of a rest stop halfway as a continuous 20-minute drive), the recorder will have voice prompts, and the first time the overspeed recorded content uploaded to the monitoring center. Exceeds the set value starts recording, and voice reminder, the set value can remotely set the time in minutes, the longest no more than four hours.
d) accident record analysis functions doubt
Recorded before the recent ten parking within 20 seconds of regular data recorder will continue recording interval 0.2 seconds before and 20 seconds of real time storage parking corresponding vehicle speed value and vehicle brake status signals and other information;
5, showing the print function
Dispatched by LCD screen can immediately print within the last 15 minutes the average speed recorded every minute timeout driving (fatigue driving) record and vehicle and driver information.
6, the vehicle information, the driver management file
Recorder has recorded the identity of the driver functions before each drive, make sure your code is inserted by the driver IC identity card.
7, power protection
Loggers have power protection, data is not lost in 10 years.
8, data communication function
Can be transmitted via serial or wireless communication, data acquisition recorders and parameter settings.
9, location tracking
GNSS module for receiving satellite positioning signals calculated its own position (longitude, latitude, altitude), time and state of motion (speed, heading), 1 time per second to the MCU, to realize real-time location monitoring.
10, real-time position monitoring
Recorder according to a set time interval, the real-time location status information is uploaded server. Information including time, latitude and longitude, speed, direction and driving status.
11, speed limit warning
Provisions traveling speed of the vehicle in some areas, exceeding the prescribed speed once the recorder will automatically be reported speeding alarm data.
12, out of the regional police
Regional monitoring center provides the vehicle, when the vehicle entering or leaving the area of the location information reported and the police.
13, track playback
Save the vehicle for some time on a data center server with data, location, speed, time and other information, you can query the playback through the client software to be expressed in the form of a map. Any local managers to monitor the vehicle can be clearly ever been at any time and then speed.
14, was robbed alarm
Event of an emergency, press the emergency button for more than 3 seconds, dispatch control center will receive the warning message. Emergency alarm button and the driver can easily be placed in hidden places to touch. The center can be the first time received emergency alarm information for drivers to help in a timely manner.
15, the remote data extraction
The center can remotely extract doubts accident records, speed records, fatigue records, 360 hours of car driving record.
16, remote power off the oil
When necessary, through the dispatch control center to send off the oil off the vehicle instruction, so that the vehicle does not start.
17, information dispatch
Issued directly to the center of the information displayed on the scheduling screen, or via text broadcast is broadcast out.
18, camera
Be issued immediately to take pictures through the center of the vehicle live pictures uploaded to the center. Center of the vehicle in order to monitor the site for real-time monitoring.
V. Appearance, accessories schematic
6. Terminal wiring diagram
VI configuration list
Nuber | Name | Quantity | Number | Name | Quantity |
1 | Main Unit | 1 pc | 2 | 8 PIN power cable | 1pc |
3 | 18pin extension cord | 1pc | 4 | GSM Antenna | 1pc |
5 | GPS Antenna | 1pc | 6 | User manual | 1pc |
7 | Certificate | 1pc | 8 | Velcro | 1pc |
Optional cases list (charge extra)
Number | Name | Quantity | Number | Name | Quantity |
1 | USB Drive | 2 | TF Flash card | ||
3 | relay | 4 | Distpach screen | ||
5 | speaker | 6 | printer | ||
7 | camera | 8 | LED AD Sceen | ||
9 | TTS | 10 | IC card | ||
11 | Printing paper | 12 | Bracket |
