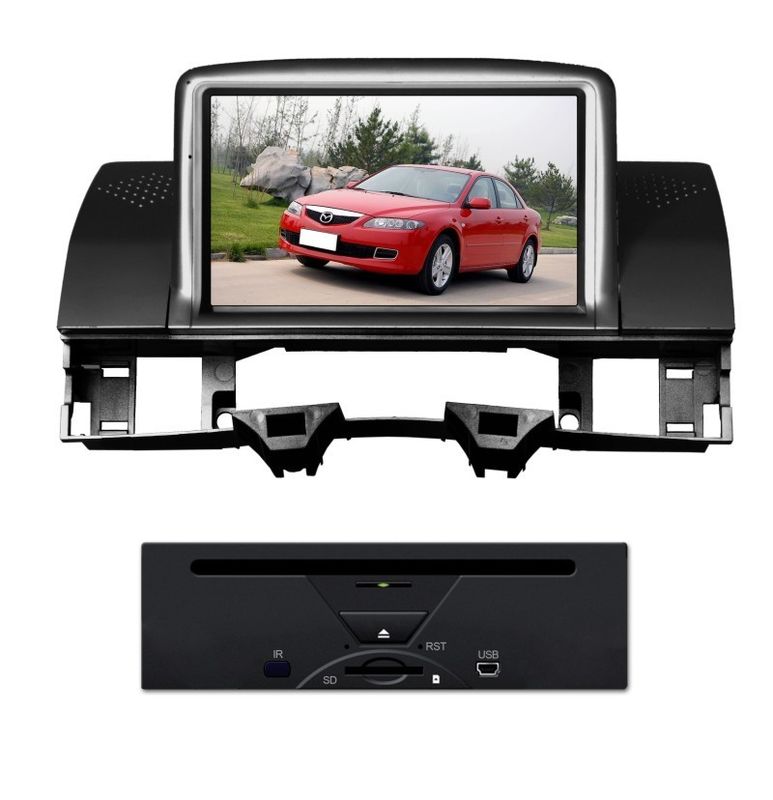

MAZDA 6 In Car GPS Navigation System , GPS Portable Navigator
Function:
3.Graphical User Interface
4.Dual zone function (Listen Radio/CD while watching GPS image)
5.USB plug, SD card slot
6.Steering wheel control
7.Full-function OSD remote control with fluorescent keys
8.FM/AM stereo receiver with 30 preset stations
9.4*45 Watts amplifier
10.Real time clock function
11.Two video output lines, four audio output lines; two video input lines, one audio input line
12.Electronic & mechanical anti-shock system
13.Radar detection and auto rear viewing function
14.Manual brake closing screen function
15.Built-in GPS system (optional)
16.Built-in Bluetooth, supporting A2DP function (optional) & Coming Tel No. displaying function & Call out directly by touching screen
17.Digital television system (optional)
18.Support external iPod playing (optional)
19.RDS (optional)
System Parameters |
|
operation system |
WINCE 6.0 CORE |
processor |
SAMSUNG S3C2440A-40 |
working voltage |
DC 12V |
working current |
MAX 10A |
standby current |
25mA |
display method |
TFT graphical user interface OSD |
software translate and edit type |
ARMV4 |
supported languages |
English/ Russian/ Portuguese/ German/ French/ Spanish/ Czech/ Dutch/ Hungarian/ Danish/ Norwegian/ Swedish/ Italian/ Finnish/ Romanian/ Greek/ Polish |
GPS Specification |
|
support map |
Garminm, Tomtom, IGO, Route 66 etc. |
EMS memory |
128MB SDRAM |
storage device |
128MB |
display output |
CVBS+S-VIDEO output |
audio output |
stereo CD quality |
main frequency |
600MHz |
chipset |
SIRF STAR 3 |
frequency |
1.575GHz |
C/A code |
1.023MHz |
satellite channel |
20 channels |
tracking sense degree |
-159dbm |
position accuracy |
5m~10m, 2D RMS, WAAS enable |
velocity accuracy |
0.1m/s |
data renewal rate |
1Hz |
re-catching time |
average 0.1s |
hot start time |
average 3s |
warm start time |
average 38s |
cold start time |
average 45s |
the biggest fixed height |
18000m |
the biggest velocity |
515m/s |
power specification |
DV 12V, current<500mA |
consumption |
4.5W (12V/360mA), normal 3W (12V/250mA) |
AV Parameters |
|
support audio type |
MP3/PCM/WMA |
support video typle |
ASF/AVI/WMV/DIVX |
track imbalance degree |
≤2dB |
segregation degree |
≥45dB |
frequency response |
20Hz-20KHz (±3dB) |
volume adjustment |
low: 100Hz±7dB medium: 1KHz±7dB high: 10KHz±7dB |
video system |
automatic PAL/NTSC/SECAM |
video output |
1Vp-p (75Ω) |
video input |
1Vp-p (75Ω) |
disc spec |
diameter 12cm disc |
compatible disc |
DVD/VCD/CD/MP3/WMA/JPEG/MPEG4 |
ESP |
DVD: 5s; CD/VCD: 30s; MP3: 300s; MP4: 5s |
Amplifier Parameters |
|
testing voltage |
13.8V |
maximum power output |
4×45W |
speaker impedance |
8Ω(4-8Ω acceptable) |
Radio Parameters |
|
FM&AM Range |
FM: 65MHz-74MHz, 87.5-108MHz AM: 522KHz-1710KHz |
Radio Area |
Europe, North and South America, Japan, Russia, China |
FM&AM frequency |
FM: 30Hz-15KHz (3dB) AM: 522KHz-1620KHz |
tune method |
PLL frequency complex tune |
storage quantity |
FM radio:18 channels AM radio:12 channels |
search method |
automatic/manual |
RDS |
TA, AF, PTY |
