Product Details:
Payment & Shipping Terms:
|
High Light: | Smart GPS tracker,pocket GPS Tracker |
---|

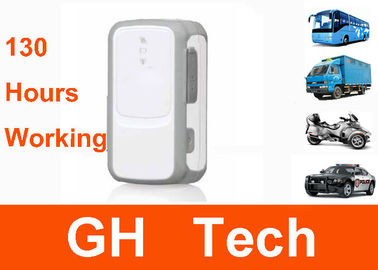

Gps tracks 130 hours continous working portable gps tracking device car gps tracker
system asset tracker truck
tracker G-T200
Main Feature:
Water Resistant
Full Power Management
I/O Interfaces to Connect Directly to Vehicles
Over 200 Days Standby Time with External Battery
Feature
Specification
GSM Specifications
Frequency |
Quad band: 850/900/1800/1900 MHz Compliant to GSM phase 2/2+ -Class 4 (2W @ 850/900 MHz) -Class 1 (1W @ 1800/1900 MHz) |
GPRS |
GPRS multi-slot class 12 |
RMS Phase Error |
5 deg |
Max Out RF Power |
GSM850/GSM900: 33.0±2 dBm DCS/PCS: 30.0±2 dBm |
Dynamic Input Range |
-15 ~ -108 dBm |
Receiver Sensitivity |
Class Ⅱ RBER 2% (-107 dBm) |
Stability Of Frequency |
< 2.5 ppm |
Max Frequency Error |
±0.1 ppm |
GPS Specifications
GPS Chipset |
u-blox All-In-One GPS receiver |
Sensitivity |
Autonomous: -148 dBm Hot start: -160 dBm Tracking: -162 dBm |
Position Accuracy |
Autonomous: < 2.5m SBAS: 2.0m |
TTFF (Open Sky) |
Cold start: 30s average Warm start: < 30s Hot start: < 1s |
Interfaces
Digital Inputs |
Two digital inputs One positive trigger for ignition detection One negative trigger input for normal use |
Digital Output |
One digital output, open drain, 150 mA max current drain |
Power Button |
For power on and power off, can be disabled by OTA using @Track protocol |
Function Button |
Emergency alert or instant geo-fence |
Mini USB Interface |
For external power and configuration |
MMCX RF Connector |
For external GPS antenna |
Indicator LED |
GSM, GPS and battery status |
General Specifications
Dimensions |
67.5mm*40mm*21mm |
Weight |
60g |
Internal Battery |
Li-Polymer 1300 mAh |
Standby Time |
Without reporting: 400 hours 5 minutes reporting: 130 hours 10 minutes reporting: 150 hours |
Water Resistance |
IPX5 compliant |
Charging Voltage |
5V DC |
External Battery Voltage |
3.5V to 4.5V DC |
Operating Temperature |
-20℃ ~ +55℃ |
Air Interface Protocol
Transmit Protocol |
TCP, UDP, SMS |
Scheduled Timing Report |
Report position and status according to preset time schedules |
Geo-fence |
Support up to 5 internal geo-fence regions |
Low Power Alarm |
Alarm when internal battery is low |
Power On Report |
Report when the device is powered on |
Power Off Report |
Report when the device is powered off |
Motion Detection |
Motion alarm based on internal 3-axis accelerometer |
SOS/Emergency Alarm |
SOS alarm when function key is long pressed |
F A Q
Q: Hello, Can you help me ? What’s a gps tracker?
A: GPS Tracker is a unit which intergrated with GPS module and GSM module,which can transmit the data to a tracking platform/server ,and then you can see your location on the server wherever you are,once there is a internet then you can track the unit and the keeper.
Q: How to use such a unit?
A:First of all, unfold the units pls ,then insort a SIM card into the unit where there is a SIM card slot. then turn on and get access to the platform with your username and password then the GPS Tracker for pet/cat /kids would work.
Q: What is the quality assurance?
A: 1 YEAR quality assurance
Q:Which shipping partner is available to UK?
A: DHL, UPS, TNT, FEDEX, EMS are okay. Which shiping cost is cheaper and speed is good, i will suggestion to you. 3-4 days can arrive UK.
