Product Details:
Payment & Shipping Terms:
|
High Light: | lithium ion polymer battery,li-ion rechargeable battery |
---|

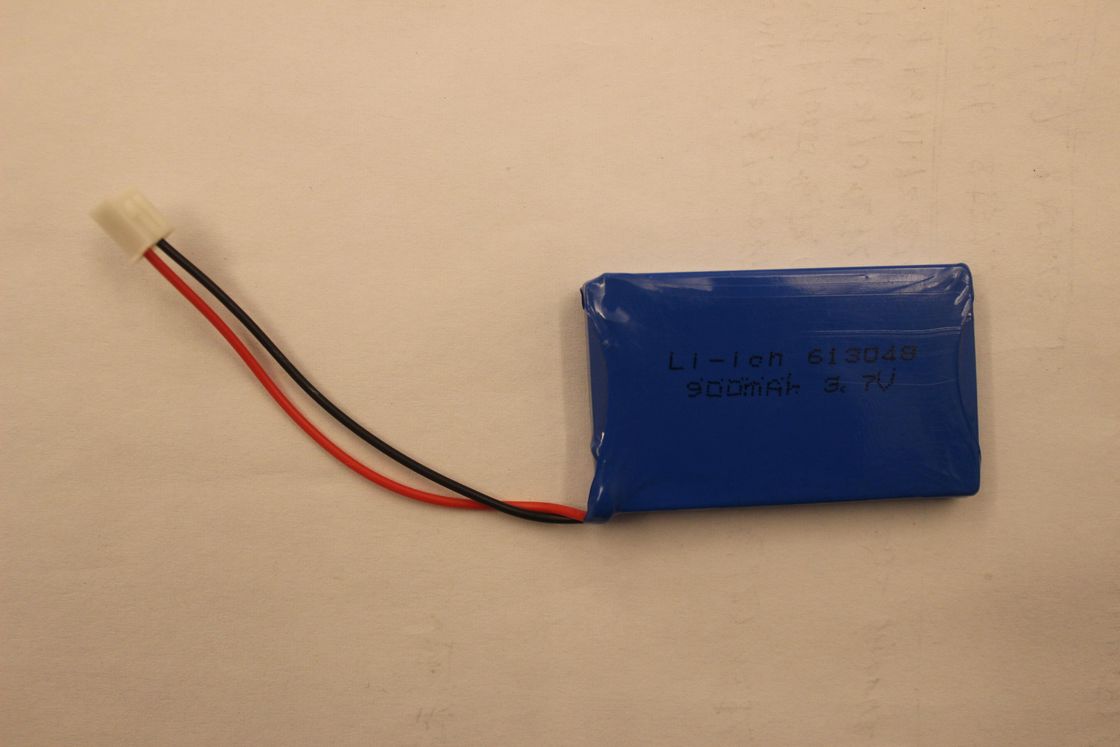

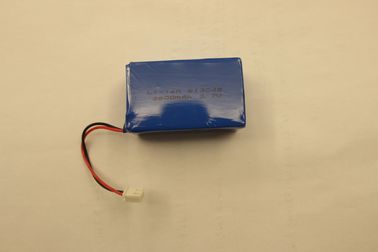

Lithium Ion / Li-ion cell has the high energy and it most popular cell using in the current market.
Quick details:
1. Size: 613048 (thickness 6.1mm width 30mm length 48mm)
2. Nominal Voltage: 3.7V
3. Nominal Capacity: 950mAh
4. Discharge cut off voltage: 2.75V
5. Standard charging ways: CC / CV
6. Lithium Ion / Li-ion rechargeable battery cell
Description:
Light weight, Ultra high energy density battery
Long cycle life (The capacity retains 80% after 400 cycles at 1C charge and discharge)
Low self discharge rate
Free of maintenance, no memory effect
Green energy, Environmentally friendly
High quality PCM protection IC from Japan
Application:
GPS tracking,Portable electronic products,solar power,Laptop,wind power ,electric motorcycles,power tools , street lights,walkie talkie,Audio Visual equipment, PDA ,handy terminal,mobile phone,communication device,consumer electronic instrument.
Specifications:
MAXPOWER INDUSTRIAL CO.LTD MP- 613048 3.7V 950mAh battery specification |
|
Model |
MP- 613048 950mAh 3.7V |
(Thickness*width*length) |
6.1*30*48mm |
Voltage |
3.7V |
Capacity |
950mAh |
Impedance |
<55 mΩ |
Discharge cut-off voltage |
2.75V |
Maximum Charge voltage |
4.2V |
Standard charge current |
Constant Current 0.2C Constant Voltage 4.2V 0.01 C5A cut-off |
Standard discharge current |
Constant current 1C5A end voltage 2.75V |
Maximum Continuous Discharge Current |
950mA |
Working temperature |
Charge:0-45 degree |
Discharge:-10-60 degree |
|
Storage temperature |
minus 20 - 45degree |
Normal temperature capacity |
950mAh |
Cycle life |
500 cycles |
