Highlight: | Smart GPS tracker,pocket GPS Tracker |
---|

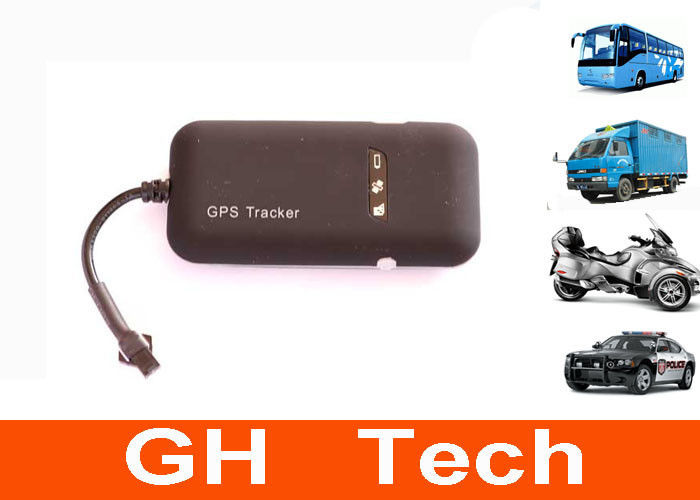

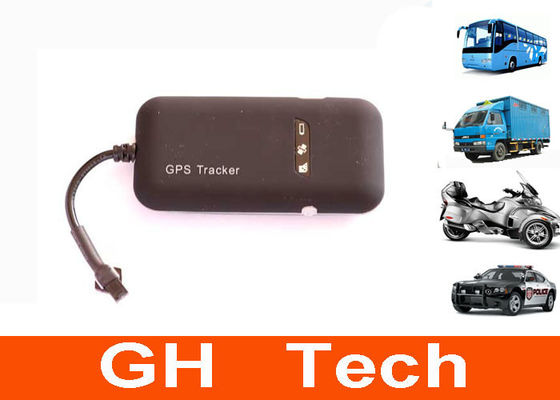

GPRS / GSM Portable GPS Tracking Device Mini with Relay Car Control
G-T005 is a Mini intelligent GPS Vehicle positioning terminal. It combines the GSM wireless communication technology and GPS positioning system technology,terminals using industrial-grade highly integrated design,intelligent power-saving and passive drift suppression,installation is simple,connect the power supply to start work immediately,wide inpute voltage range,wide applicable to all types of cars,motor cycles,electric cars,ships,etc., can provide all-weather,real-time vehicle positioning function,with global positioning service platform,you can achieve remote vehicle management.
1.GPS Tracker Mini Global Real Time GSM/GPRS/GPS Tracking Device Can be used for Cars Trucks and Other Vehicles
2. Real time Electricity bike track 7-50V Car GPS Tracker Syetem with Relay Car Control Motorcycle GSM / GPS / GPRS Tracker
3. Mini GPS Tracker Quad Frequency Car GPS Tracker System With GSM SIM 9 - 50V Voltage for car truck bus motorcycle mini global gps tracker
This tracker is a
1. mini waterproof GSM GPRS GPS Tracker for Cars Motorcycles Trucks and other vehicles,
2. with a voltage of 7-50V voltage
3. Can connect with relay to control the car fuel / electricity.
Brief introductions of Mini GPS Tracker
This is a mini GPS tracker with quad frequency,9-70V DC,SOS which can be used on cars,trucks,motorcycles,taxis.bus and some other vehicles.
Specifications of GPS Tracker
Network |
GSM: 850/900/1800/1900MHz |
GPRS |
Class 12, TCP/IP |
Voltage |
9-70V DC |
Current
|
≈22mA(12vDC) ≈12mA(24vDC) |
GPS fixed time |
Cold start 30sec(open sky) Warm start 29sec(open sky) Hot start 5sec (open sky) |
GPS fixed precision |
10m (2D RM) |
Temperature |
-20 degree ~ +70 degree |
Humidity |
5% ~ 95% RH |
Dimension |
90.0(L)x45.0(W) x13.5(H)mm |
Weight |
80g |
3. Installation comands
Please pay attention to the following matters:
Front windshield decorative below the covert,
Front panel (skin for non-metal material) around the shadow
Rear window below decorative
3.3 Relay connection comands
Oil pump cut-off relay connection method:Coil ends connection were white line (85) and the yellow line (86), white line (85) joint car positive (+ 12 v), the yellow line (86) joint device relay control line.
The vehicles on the tubing string attached to oil pump, cut the wire of oil pump positive, the wire of oil pump positive joint the normally closed end of the relay (green line 87 a), the other end joint the relay’s other end (green line 30).
Note: this product with standard for 12V relay. Fit for installation on 12V car battery vehicles.
If the battery of the vehicle is 24Vs battery, need to be choose 24V relay.
LED scintillation state meaning interpretation
LED |
Scintillation state |
Meaning |
Red Power LED |
Shine 0.1 sec, dim 2 sec |
Working |
Shine 1 sec, dim 2 sec |
Low power |
|
Always dim |
Power off or fault |
|
Blue GPS LED |
Shine 0.1 sec, dim 2 sec |
GPS Fixed |
Shine 1 sec, dim 2 sec |
GPS not Fixed |
|
Always dim |
Power off or fault |
|
Yellow GSM LED |
Shine 0.1 sec, dim 2 sec |
GSM ready |
Shine 1 sec, dim 2 sec |
GSM not ready |
|
Always dim |
Power off or fault |
5.2 Location check
5.2.1 Get address by SMS from server
Command: where#
This function needs server support. If server not support, please ignore it.
If GPS fixed, the device replies address.
If GPS not fixed, the device replies: "unable to get the correct GPS data, please try again!"
5.2.2 Get location by Google map by SMS
Command: url#
If GPS fixed, the device reply: Google map’s location link
If GPS not fixed, the device replies: "Not fixed, the last fixed location is Google map’s location link"
If your mobile phone can connect to the Internet, you can open the Google map link to get the address of the device; also can get the address by the browser of computer for input the Google map link.
5.2.3 Vehicle management by server
User can login in server’s website to manage vehicles. You can get the account and password form vendors.
5.3 Alarm setting and cut off vehicle’s oil or power
5.3.1 Turn on or off stolen alarm
When turn on the device’s alarm, if the device was vibrated continuous, it will trigger the stolen alarm. The device will send alarm message and latitude and longitude to the service platform; and send alarm message and latitude and longitude to the center number by SMS and call the center number. If service center number doesn’t answer, the device will call six times.
Command: fortify,x#
x is 1 means: Turn on alarm
x is 0 means: Turn off alarm
5.3.2 Alarm clear
When alarm was triggered, the device will call the center number, if you answer it, the device you want to clear it, you can send this command to the device.
Command: alarm#
Reply Message: "alarm has lift!"
5.3.3 Cut off vehicle’s oil or power
When the vehicle was stolen, you can cut off the vehicle’s oil or power by SMS.
Command: relay,x#
x is 1 means: Cut off the vehicle’s oil or power success
x is 0 means: Recovery the vehicle’s oil or power
5.3.4 Alarm of cut off outside power
If the outside power was cut off, the device will trigger the power cut off alarm. The device will send alarm message and latitude and longitude to the service platform; and send alarm message and latitude and longitude to the center number by SMS and call the center number. If service center number doesn’t answer, the device will call six times.
