| Size: | 137*75*29mm | Weight: | 750g |
|---|---|---|---|
| Camera: | High Definition Camera | GPS Chip: | SIRF Star III/IV |
| GSM Chip: | SIMCOM Quad Bands | Navigator: | 5'' Inch |
| High Light: | gps location tracker,anti theft gps tracker |
||

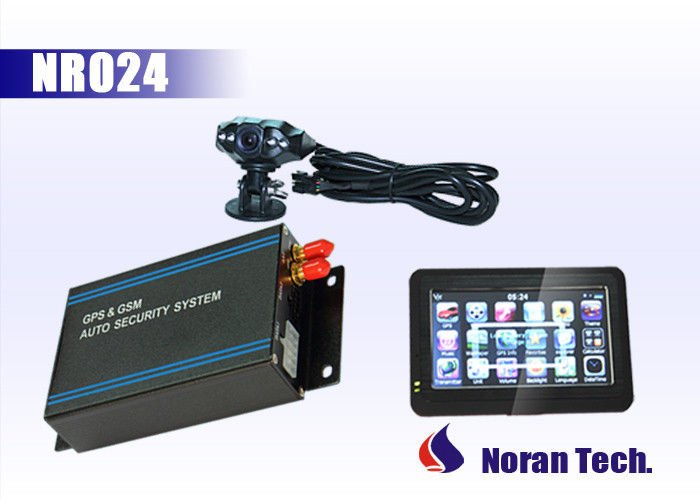

Global Hidden Car Gps Tracker Camera , Wireless Cell Phone Gps Tracker By SMS
Main features:
Through the online positioning platform or the cell phone to locate at any time, and get the working status. You can choose the positioning Platform by yourself
When the target moves exceeding a preset speed the unit will send an SMS+Geo info to the authorized numbers
Set up a geo fence for the unit to restrict its movements within a district.
The unit will send the message to the authorized numbers when it breaches the district
Auto track by SMS or online positioning platform; Mileage statistics; ACC checking
Auto track by SMS or online positioning platform; Mileage statistics; ACC checking
Any error happens on the tracker, it can analysis itself and restart.
When tracker is cut off from the power, the tracker sends alert SMS to user
You can Cut off or turn on the oil & circuit remotely via SMS or Online whenever you want
Remote monitoring vehicle fuel (oil, oil spills, oil steals, fuel consumption, etc.)
Using Global Satellite Positioning technology, LBS(Location Based Service) technology(when it can’t be located via GPS, the devices will get the location information via LBS)
You can ring the GPS unit and simply listen in discreetly.(the GPS unit does not vibrate or ring )
You can press the SOS alarm button to send an alert.
This will give the location to the registered phone numbers in case of an emergency.
The SOS function also allows you to talk into the GPS tracker & make yourself heard on the receivers end with the mobile cell phone
Take photo by the digital camera, to check what's happened in the vehicles.
Noran gps tracker optional funcations:
1. Add flash memory
2. Support vibration sensor
3. Add buzzer
4. Support TCP/UDP protocol
5. Support fuel anti-theft alert
6. Support 2 fuel sensors at most
7. Support fuel theft early sound/light warning
8. Support 2 cameras at most
9. Support RFID Reader
10. Support customized firmware
Specifications:
|
Size |
137*78*29mm |
|
Working Voltage |
DC:6.3~40V |
|
Input Fuse |
5A |
|
Working Temperature |
-40~85°C |
|
Humidity |
10% to 90% |
|
CPU |
TI:MSP430F5419(100MHz) |
|
GSM Module: |
Tri-mode:850/900/1800/1900MHz Tally with: GSM phase 2/2+ -Class 4 (2W @ 850/900MHz) -Class 1 (1W @ 1800/1900MHz) Max RF Output: 33.0dBm±2dBm Dynamic Input Range: -15 ~ -102dBm Receiving delicacy: Class RBER≤2%(-102dBm) Frequency Stability: > 2.5ppm Max Frequency Deviation: ±0.1ppm RMS Deviation: ≤5deg |
|
GPS Module
|
GPS chip set: SiRF Star III Frequency: L1, 1575.42 MHz Number of Channel: 20 Reacquisition: 0.1 sec, average Hot boot: 2 sec., average Warm boot: 38 sec., average Cold boot: 44 sec., average Altitude limit: 18000 m Velocity limit: 515 m/s |
|
Input I/O |
3 |
|
RS232 |
2 |
|
Microphone |
Inside Mic without phone |
|
earphone |
No |
|
Current |
Not working Current 16mA working Current:60~150mA Current of opening infrared of Camera at night :100~200mA Charging current: Max<500mA |
|
Battery |
Lithium battery : 400~800mA( working time is about 3.5~8 hours) |
|
Accessories |
Device , Connecting cable , GPS antenna , GSM antenna , Relay , Camera |
Special Technical Service
1. All of our devices have two years warranty .
2. Help you setup your own GPS tracking system for free
3. Free server service period: 12-month
4. We accept OEM /ODM and customised orders.(logo, functions, language)
