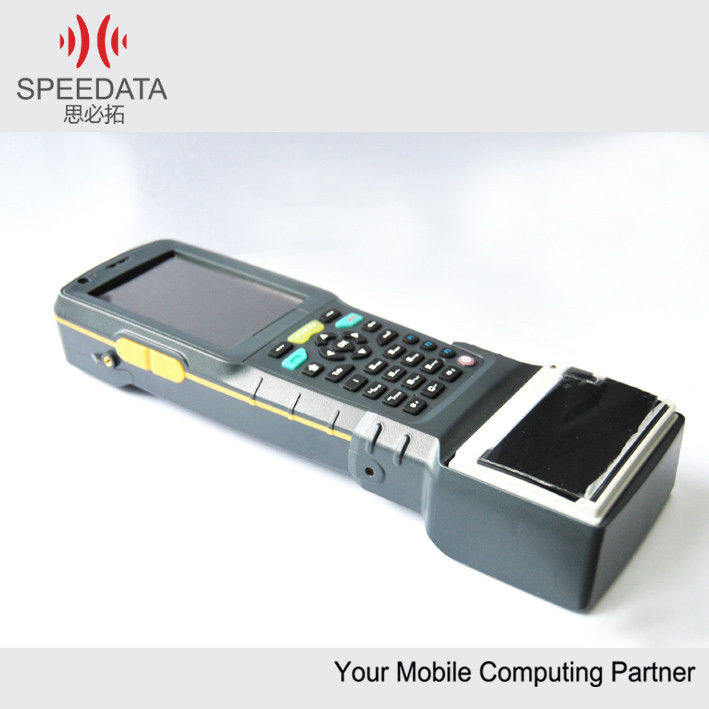

Android Ticket Portable Data Collection Terminal With Wireless Gps Tracking Device

Android Ticket Portable Data Collection Terminal With Wireless Gps Tracking Device
Android Ticket Portable Data Collection Terminal With Wireless Gps Tracking Device Android Ticket Portable Data Collection Terminal With Wireless Gps Tracking Device

Large Image :  Android Ticket Portable Data Collection Terminal With Wireless Gps Tracking Device

Product Details:
Place of Origin: Beijing, China
Brand Name: SPEEDATA
Certification: IP65,GB/T 18220-2000
Model Number: MT35
Barcode reader:: 1D or 2D
RFID reader:: LF/HF/UHF RFID Reader
Interface:: USB2.0/ rs232
Display:: 3.5inch TFT LCD(Transflective screen VGA)
Screen:: resolution 640*480 , sunlight visible , outside used ok
IP Class:: IP 65
Battery:: rechargeable Li-ion battery 4500mAh
Wireless and Communication:: Wifi,GPS,GPRS,GSM,Phone features
Camera:: 5M AF
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Delivery Time: 3-7days
Payment Terms: T/T, PAYPAL , Western Union
Supply Ability: 1000 Piece
Detailed Product Description
High Light:

barcode scanner machine

,

data collection terminals

Android Ticket Portable Data Collection Terminal With Wireless Gps Tracking Device





Quick Detail:

 1.EDGE
2.WIFI GPS Bluetooth
3.windows mobile 6./ android 2.3 OS
4. 3.5inch TFT LCD
5.android ticket built in printer



Speedata MT35 Series:

1. 3.5 inch Transflective screen VGA TFT LCD.
2. Superior scalability: Maximum can support 4 extensions. For example: MT35-B2-SE45SR-UHF-R6-D6T-E27 (1D & 2D barcode,UHF RFID, HF RFID, DGPS,Printer) ,Flexible customized according to clients' requirements .
3. IP65

4. Android/Win Mobile/Win CE operationg system (optional)

5.android ticket built in printers



Android Ticket Portable Data Collection Terminal With Wireless Gps Tracking Device 0



Specifications:



Features "ALL IN ONE"

Support :1D/2D Barcode scanner/ LF/HF/UHF RFID tags read and write/  WiFi/GPRS/3G(WCDMA)/Bluetooth wireless communication,/  GPS positioning and

Camera/  Interface:USB HOST/RS232/IIC (customized)

high industrial grade

IP65 ,1.5m drop test,work in harsh environments

customizable

Windows Mobile/Wince/Android OS (Option) / Multi-language customized/ Option customized:Embed in printer ,Fingerprint reader/

Temperature and humidity sensor

Core Board



WM6.1/6.5 OS

option 1

Marvell PXA310(624MHz)+qualcomm (GSM band 900/1800/1900MHz, GPRS,  EDGE/WCDMA 2100MHz HSDPA 3.6Mbps)

Android 2.3 OS

yes

Marvell PXA910(806MHz)+qualcomm  (GSM Quad-band 850 /900 /1800 /1900 MHz, GPRS, EDGE WCDMA 3G 900/1710/2100MHz HSDPA 3.6Mbps

Memory

Flash ROM

512MB

RAM

512MB DDR

Extend Slot

Micro SD 16G (SDHC)

Data sheet



Display

3.5inch TFT LCD (Transflective screen VGA )

touch screen

4-wire resistive

Form Factor

Bar type classical Pocket PC,Industrial appearance

GPS

Qualcomm chipset (WM OS)

UBLOX module (Android OS )

Bluetooth

Bluetooth SIG version 2.0 compliant; Supported profiles:  headset, hands-free, object push, serial port, dial up network

WiFi

WiFi (802.11 b/g/n)

Fingerprint reader(optional)

SM-621B

Thermal Printer  (yes)

Direct thermal line printing

Far Infrared Meter Reading (Optional)

IEC62056-21(IEC1107) communication protocol

PSAM (optional)

PSAM ISO 7816 class A,B

RFID Reader

option 1

LF RFID(134.2khz, ISO11784/11785, FDX-B/HDX)

option 2

LF RFID(125KHz)

option 3

HF RFID(13.56MHz ISO 14443A/B)

option 4

HF RFID(13.56MHz  ISO 1443A/B    ISO 15693)

option 5

UHF RFID 860-960MHZ  ISO18000-6C (EPC Gen2)  /

ISO18000-6A,B compatibility in direct mode

barcode scanner

option 1

NEWLAND:EM1300(1D barcode reader)

option 2

NEWLAND:EM3000(1D/2D barcode reader)

option 3

symbol:SE955(1D laser barcode reader)

option 4

HoneyWell:N4313 (1D laser barcode reader)

option 5

Honeywell:5100(1D/2D barcode reader)

option 6

Symbol: se4500(1D&2D barcode reader)



Physical Characteristics:





External Interface

USB HOST/RS232(Customized)

Protection class

IP65

Drop resistance level

1.5m

Camera Function

Camera

5MP Camera

Video

Support still image and video capture

Keypad

Front

30keys

Side

4keys

Interface

Mini-USB connector

USB2.0 connection

SIM card slot

Yes

PSAM card slot

option

TF card slot

Yes

power jack

Yes

Audio Jack

Yes

Battery

Type

rechargeable Li-ion battery 4500mAh

Standby Time

500hours

Calls Time

Up to 6hours

Charging Time

4 hours

Physical Characteristics

Dimension

182*82*36mm

Weight

>400g with battery (according config)

Accessories:

 Rechargeable Li-ion battery 4500mAh Standard

 Packaging: Main Unit*1pc, Charger*1pc, USB Cable*1pc, battery*1pc, Case*1pc, Strap*1pc





 Android Ticket Portable Data Collection Terminal With Wireless Gps Tracking Device 1





Competitive Advantages :

 1. We have our own manufacture factory in Beijing ;

2. Own r&d team and technical personnel;

3. Scientific management, advanced production equipment;

4. Excellent after-sales service and technical support;
