| Video Compression: | H.264 | Video Format: | PAL / NTSC |
|---|---|---|---|
| Type: | 4CH D1 Mobile Vehicle DVR | 3G Remore Control: | Support |
| GPS Location Track: | Support | WIFI: | Optional |
| HDD Storage: | Normall1 TB, Maximum 2TB | Power Input: | 8 ~ 36V |
| High Light: | Digital Video Recorder,Vehicle DVR Recorder |
||

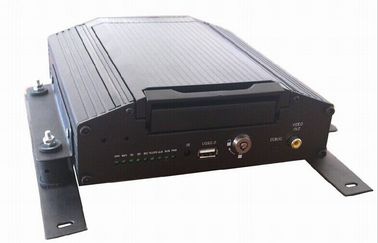

Bus Surveillance 3G GPS Real Time 4CH Full D1 h.264 HDD CCTV Mobile Vehicle DVR
Features:
Description:
Specifications:
|
System |
Processor |
Hi3515 |
|
OS |
Embedded Linux OS |
|
|
Operator interface |
GUI, support mouse |
|
|
Safety management |
User password, Admin password in two layer management system |
|
|
Video |
Video standard |
PAL(625 lines,50 scenes/sec);NTSC(525lines,60 scenes/sec) |
|
Compression |
H.264(Main Profile) |
|
|
Live view quality |
D1 |
|
|
Playback quality |
CIF/D1 |
|
|
Encoding capacity |
4D1 realtime |
|
|
Decoding capacity |
4D1 realtime |
|
|
Input |
4 channel composite video input |
|
|
Output |
2 channel composite video output |
|
|
Display |
Single picture,4 pictures; alarm screen automatic switch |
|
|
Audio |
Compression |
ADPCM |
|
Input |
4 channel audio input |
|
|
Output |
1 channel audio output |
|
|
Recording mode |
Video and audio synchronously recording |
|
|
Recording & playback |
Recording type |
Manual,Schedule,Alarm,Circle recording |
|
Video bitrate |
64Kbps~1.5Mbps |
|
|
Audio bitrate |
8KB/s |
|
|
Storage medium |
Support 1 SD card and 1 SATA hard disk |
|
|
Playback |
Playback by files; 4 channels playback |
|
|
Startup/ Shutdown |
Startup mode |
ACC, Schedule |
|
Shutdown mode |
ACC delayed shutdown.,Schedule shutdown,hard disk lock off shutdown |
|
|
Software updating |
Update mode |
Manual,automatic updating when power on |
|
Update method |
USB interface; SD card; wireless |
|
|
Interface
|
SD card |
1 SDHC(Maximum support 64G) |
|
USB interface |
5 USB 2.0 |
|
|
Hard disk interface |
1 SATA interface(use USB2.0 interface to convert) |
|
|
Alarm input |
8 |
|
|
RS485 port |
1 |
|
|
RS232 port |
2(one for GPS) |
|
|
Network port |
1 RJ45 10/100M Adaptive |
|
|
IR port |
1 |
|
|
Wireless interface |
3G(through 3G daughter board expansion) |
|
|
3G function (optional) |
GPS |
RS232 interface, according to NMEA-0183 protocol |
|
3G |
USB interface, support EVDO & WCDMA |
|
|
WIFI |
802.11 B/G/N |
|
|
Auxiliary software |
PC playback software |
Playback the recording files on PC, and analyze all informations that overlayed in the file, such as IO signal, GPS info. |
|
CMS |
Through wireless network achieve the functions such as remote video preview,GPS uploading,alarm uploading, central command issuing ,parameter setup. |
|
|
Others |
Power input |
DC: 8V~36V |
|
Power output |
+5V 1.5A |
|
|
Work temperature |
-20 --- 60℃ |
|
|
Power consumption |
Standby: 6.6W Fully loaded: 34W |
|
|
Size |
201*180*60(mm) |
Bus Surveillance 3G GPS Real Time 4CH Full D1 h.264 HDD CCTV Mobile Vehicle DVR
