GPS Double Stream Mobile DVR Recorder , Aluminium Frame 4 Channel Security DVR

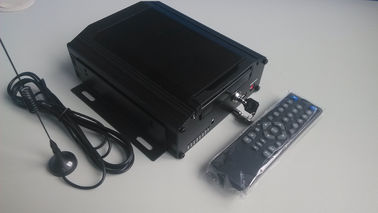

Large Image : GPS Double Stream Mobile DVR Recorder , Aluminium Frame 4 Channel Security DVR

Product Details:

Place of Origin:	China
Brand Name:	Vicord
Certification:	CE,ROHS, FCC
Model Number:	MCH8GNW

Payment & Shipping Terms:

Minimum Order Quantity:	200pcs
Price:	Negotiation
Delivery Time:	1-4 weeks after get the full payment
Payment Terms:	T/T 100% before shipment
Supply Ability:	50000 Pcs/Year

Contact Now

Detailed Product Description

Wifi Function:	Support	Main Processor:	Hi3520D
Preview Screen:	1/4/8	Signal System:	NTSC/PAL
Storage:	HDD Max 4T	Exclusive Player:	Support Google Map
High Light:	vehicle mobile dvr , vehicle dvr systems

GPS Double Stream Mobile DVR Recorder , Aluminium Frame 4 Channel Security DVR

Application
This device adopts high speed processor and embedded operating system, and applies various advanced technologies in IT field, such as A/V codec, high capacity HDD card storage, network streaming media, A/V noise reduction, wide range voltage design.
Applied to bus, taxi, bus, transportation, mining vehicles, engineering vehicles, traffic, police, medical car, bus, etc, reducing the occurrence of sudden accident, travel can let family feel more at ease at the same time, travel safe, happy family.
Feature:

Wide voltage design, suitable for all kinds of vehicles
Hard disk smoked pull box, compatible with all 2.5 -inch hard disk
Support intercom function
With complete client Software Platform, support Real time Video view, Record, Snap, Replay analysis
Support super high files fragmentation clearing technology and data protection
support the large capacity hard disk, maximum 4TB
Multiple language options, covers almost all main languages all over the world
Supports Mouse & IR remote control for easy operation
Supports Manual Record, Motion Detect and scheduled Record
Can work with power supply ranging from DC6V to DC36V
Working temperature: 0℃-＋55℃
Support local and remote PTZ control

Specification

	Model	MCH8GNW
system	Main processor	Hi3520D
	Operating system	Embedded LINUX operating system
	System resources	Simultaneous multi-channel real-time recording, playback, network operation, USB backup
interface	user interface	support 16-bit true color graphical menu interface and mouse operation
interface	preview screen	1/4/8
video	Video standards	PAL(625line,50f/s)；NTSC(525line,60f/s)
	Video compression	H.264(Main Profile)
	display quality	Monitor:D1
	play quality	D1/Half-D1/CIF/QCIF
	encode capacity	8ch D1 real-time
	decode capacity	1ch D1 real-time
	motion detect	Zones: 392(22*18)detection zones per window,multi-level sensitivity
audio	audio compression	G.711A
audio	bidrectional talk	supported
Record & playback	record mode	manual>alarm>motion detection>timing
	local playback	Any channel playback simultaneously(1-4ch)
	search mode	Time/calendar/event/channel search
Storage & backup	space occupation	video:CIF 4~5G/ daychannel, D1 8~10G/ daychannel； audio:691.2M/ day*channel
	record storage	HDD,network
	backup mode	Network backup,USB HDD,USB writer,U disk
interface	video input	8ch
	video output	1ch RCA (1.0Vp-p,75Ω),1ch for cable
	audio input	8ch
	audio output	1ch (200-3000mV,5K)
	alarm input	4ch(multiplexing vehicle signal)
	alarm output	2ch
	RJ45 interface	no
	RS485, RS232	One RS485,one RS232
	USB	One USB
	HDD	One SATA port,max.4T
Mobile interface &functions	GPIO signal	Support vehicle name,speed,turn light,vehicle door,brake,Steering Information and other signals input；support vehicle information OSD overlay,storage etc.
	GPS	Support
	WIFI module	Support
	3G module	Not Support
	G-Sensor (optional)	Not supported
	others	support delay boot up/shut down
complement	Exclusive player	Support google map,showing vehicle running track and data.
	Platform	Support auto registration,no need of port Mapping,getting rid of 3G access problem.Support google map,showing vehicle running track and data
	SDK	Free SDK for second development
others	Power supply	Wide voltage input 6V~36V,15% overvoltage protection,500MS 60V voltage surge
	External power supply	Support 8* 12V controllable power supply for external camera,exclusive 12V and 5V output
	Power consumption	<10W(HDD without)
	Working temperature	0℃-＋55℃
	Working humudity	10%－90%
	Atmospheric pressure	86kpa－106kpa
	Dimension	193(length)*198(width)86(height)mm
	weight	1.5kg
