H.264 8CH Real-time Detection GPS Mobile DVR With 3G Module Bidrectional Talk Function

China H.264 8CH Real-time Detection GPS Mobile DVR With 3G Module Bidrectional Talk Function supplier

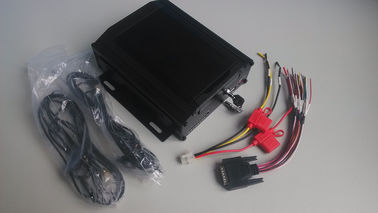

Large Image :  H.264 8CH Real-time Detection GPS Mobile DVR With 3G Module Bidrectional Talk Function

Product Details:

Place of Origin: China
Brand Name: Vicord
Certification: CE,ROHS, FCC
Model Number: MCH8G3N

Payment & Shipping Terms:

Minimum Order Quantity: 200pcs
Price: Negotiation
Delivery Time: 1-4 weeks after get the full payment
Payment Terms: T/T 100% before shipment
Supply Ability: 50000 Pcs/Year
Contact Now
Detailed Product Description
Preview Screen: 1/4/8 Local Storage: HDD Max 4T
Display Quality: Monitor:D1 Signal System: NTSC/PAL
Power Consumption: Less Than 10W(HDD Without) Working Temperature: 0℃-+55℃
Dimension: 193(length)*198(width)86(height)mm

H.264 8CH Real-time Detection GPS Mobile DVR With 3G Module Bidrectional Talk Function


 Advantages:

  1. Wide voltage design, suitable for all kinds of vehicles
  2. variety of video mode, meet the needs of different customers
  3. With password protection function
  4. Transport fast, h. 264 compression format, have higher data compression ratio, transmission faster
  5. Airframe adopt high-end aluminum alloy, heat faster, can avoid work long time in high temperature environment, prevent aging

Feature:

  1. support the large capacity hard disk, maximum 4TB
  2. support TV output,taking the lead in HD resolution technology
  3. Powerful network services (support DAS,DHCP,PPPOE,FTP,DNS,DDNS,NTP,UPNP,EMAIL, IP permissions, IP searches, Alarm Center, etc.) and perfect support (WEB, Client, SDK), easy to achieve interoperability.
  4. Supports Mouse & IR remote control for easy operation
  5. Supports Manual Record, Motion Detect and scheduled Record
  6. Support local and remote PTZ control
  7. 8 channel Video Input
  8. With complete client Software Platform, support Real time Video view, Record, Snap,
  9. Replay analysis


Specification




Model

MCH8G3N

system

Main processor

Hi3520D

Operating system

Embedded LINUX operating system

System resources

Simultaneous multi-channel real-time recording, playback, network operation, USB backup

interface

user interface

support 16-bit true color graphical menu interface and mouse operation

preview screen

1/4/8

video

vdieo standards

PAL(625line,50f/s);NTSC(525line,60f/s)

vdieo compression

H.264(Main Profile)

display quality

Monitor:D1

play quality

D1/Half-D1/CIF/QCIF

encode capacity

8ch D1 real-time

decode capacity

1ch D1 real-time

motion detect

Zones: 392(22*18)detection zones per window,multi-level sensitivity

audio

audio compression

G.711A

bidrectional talk

supported

Record
&
playback

record mode

manual>alarm>motion detection>timing

local playback

Any channel playback simultaneously(1-4ch)

search mode

Time/calendar/event/channel search

Storage
&
backup

space occupation

video:CIF 4~5G/ day*channel, D1 8~10G/ day*channel;
 audio:691.2M/ day*channel

record storage

HDD,network

backup mode

Network backup,USB HDD,USB writer,U disk

interface

video input

8ch

video output

1ch RCA (1.0Vp-p,75Ω),1ch for cable

audio input

8ch

audio output

1ch (200-3000mV,5K)

alarm input

4ch(multiplexing vehicle signal)

alarm output

2ch

RJ45 interface

no

RS485, RS232

One RS485,one RS232

USB

One USB

HDD

One SATA port,max.4T

Mobile interface &functions

GPIO signal

Support vehicle name,speed,turn light,vehicle door,brake,Steering Information and other signals input;support vehicle information OSD overlay,storage etc.

GPS

Not Support

WIFI module

Support

3G module

Support(Support EVDO,WCDMA,TD-SCDMA)

G-Sensor
(optional)

Not supported



others

support delay boot up/shut down

complement

Exclusive player

Support google map,showing vehicle running track and data.

Platform

Support auto registration,no need of port Mapping,getting rid of 3G access problem.Support google map,showing vehicle running track and data

SDK

Free SDK for second development

others

Power supply

Wide voltage input 6V~36V,15% overvoltage protection,500MS 60V voltage surge

External power supply

Support 8* 12V controllable power supply for external camera,exclusive 12V and 5V output

Power consumption

<10W(HDD without)

Working temperature

0℃-+55℃

Working humudity

10%-90%

Atmospheric pressure

86kpa-106kpa

Dimension

193(length)*198(width)86(height)mm

weight

1.5kg
