Double Stream Remote Control Car Mobile DVR H.264 HD Mobile Monitoring

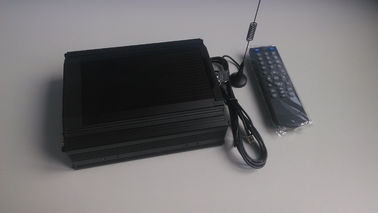

Large Image : Double Stream Remote Control Car Mobile DVR H.264 HD Mobile Monitoring

Product Details:

Place of Origin:	China
Brand Name:	Vicord
Certification:	CE,ROHS, FCC
Model Number:	MCH4GNN

Payment & Shipping Terms:

Minimum Order Quantity:	200pcs
Price:	Negotiation
Delivery Time:	1-4 weeks after get the full payment
Payment Terms:	T/T 100% before shipment
Supply Ability:	50000 Pcs/Year

Contact Now

Detailed Product Description

Operating System:	Embedded LINUX	Display Quality:	Monitor：D1
Play Quality:	960H/D1/Half-D1/CIF/QCIF	Encode Capacity:	4ch 960H Real-time
Record Storage:	HDD,network	Working Humudity:	10%－90%
High Light:	vehicle mobile dvr , vehicle dvr systems

Double Stream Remote Control Car Mobile DVR H.264 HD Mobile Monitoring

Application

Law Enforcement - Patrol Cars,Military - Tanks,Emergency Ambulances, Fire Trucks,Public Buses, Trains, Railways, Subways,Commercial Boats, Heavy Equipment, Limousines, Taxis, Van,Transportation - Freight Liners,Aviation Helicopters, Commercial and Private Aircraft.

Feature:

support the large capacity hard disk, maximum 4TB
Multiple language options, covers almost all main languages all over the world
Supports Mouse & IR remote control for easy operation
Supports Manual Record, Motion Detect and scheduled Record
Can work with power supply ranging from DC6V to DC36V
ith anti-vibration, anti-high temperature protection and low temperature pre-heated function, the quality of video files is always guaranteed. Working temperature: 0℃-＋55℃
Support local and remote PTZ control
Wide voltage design, suitable for all kinds of vehicles
Hard disk smoked pull box, compatible with all 2.5 -inch hard disk

Specification

	Model	MCH4GNN
system	Main processor	Hi3520D
	Operating system	Embedded LINUX operating system
	System resources	Simultaneous multi-channel real-time recording, playback, network operation, USB backup
interface	user interface	support 16-bit true color graphical menu interface and mouse operation
interface	preview screen	1/4
video	vdieo standards	PAL(625line,50f/s)；NTSC(525line,60f/s)
	vdieo compression	H.264(Main Profile)
	display quality	Monitor:D1
	play quality	960H/D1/Half-D1/CIF/QCIF
	encode capacity	4ch 960H real-time
	decode capacity	1ch 960H real-time
	motion detect	Zones: 392(22*18)detection zones per window,multi-level sensitivity
audio	audio compression	G.711A
audio	bidrectional talk	supported
Record & playback	record mode	manual>alarm>motion detection>timing
	local playback	Any channel playback simultaneously(1-4ch)
	search mode	Time/calendar/event/channel search
Storage & backup	space occupation	video:CIF 4~5G/ daychannel, D1 8~10G/ daychannel； audio:691.2M/ day*channel
	record storage	HDD,network
	backup mode	Network backup,USB HDD,U disk
interface	video input	4ch
	video output	1ch RCA (1.0Vp-p,75Ω),1ch for cable
	audio input	4ch
	audio output	1ch (200-3000mV,5K)
	alarm input	4ch(multiplexing vehicle signal)
	alarm output	2ch
	RJ45 interface	no
	RS485, RS232	One RS485,one RS232
	USB	One USB
	HDD	One SATA port,max.4T
Mobile interface &functions	GPIO signal	Support vehicle name,speed,turn light,vehicle door,brake,Steering Information and other signals input；support vehicle information OSD overlay,storage etc.
Mobile interface &functions	GPS	Support
	others	support delay boot up/shut down
complement	Exclusive player	Support google map,showing vehicle running track and data.
	Platform	Support auto registration,no need of port Mapping,getting rid of 3G access problem.Support google map,showing vehicle running track and data
	SDK	Free SDK for second development
others	Power supply	Wide voltage input 6V~36V,15% overvoltage protection,500MS 60V voltage surge
	External power supply	Support 8* 12V controllable power supply for external camera,exclusive 12V and 5V output
	Power consumption	<10W(HDD without)
	Working temperature	0℃-＋55℃
	Working humudity	10%－90%
	Atmospheric pressure	86kpa－106kpa
	Dimension	193(length)*198(width)86(height)mm
	weight	1.5kg
