H.264 3G GPS Mobile DVR Recorder SD SATA With 4 channel SD Card Mobile DVR

China H.264 3G GPS Mobile DVR Recorder SD SATA With 4 channel SD Card Mobile DVR supplier
H.264 3G GPS Mobile DVR Recorder SD SATA With 4 channel SD Card Mobile DVR supplier H.264 3G GPS Mobile DVR Recorder SD SATA With 4 channel SD Card Mobile DVR supplier H.264 3G GPS Mobile DVR Recorder SD SATA With 4 channel SD Card Mobile DVR supplier

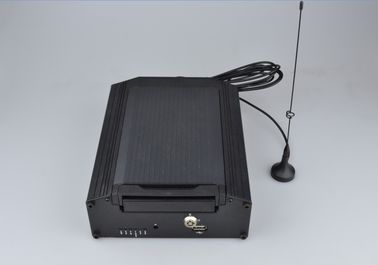

Large Image :  H.264 3G GPS Mobile DVR Recorder SD SATA With 4 channel SD Card Mobile DVR

Product Details:

Place of Origin: China
Brand Name: Vicord
Certification: CE,ROHS, FCC
Model Number: MDVR-C22043G

Payment & Shipping Terms:

Minimum Order Quantity: 200pcs
Price: Negotiation
Delivery Time: 2 weeks for PO with sales forecast ; 4 weeks for PO without sales forecast
Payment Terms: T/T ; 30% prepayment upon PO release and balance to be paid before shipment
Supply Ability: 50000 Pcs/Year
Contact Now
Detailed Product Description

H.264 3G GPS Mobile DVR Recorder SD SATA With 4 channel SD Card Mobile DVR





Feature:

Special function: Mobile data,GPSdata,wide voltage,WIFI/3G,mobile DVR player,central management software,SDK etc.



Compression algorithm ideal: H.264 High Profile compression algorithm,30% decrease of stream due to advanced space-time filtering technology.



Playback quality: support 4ch D1 real-time record,multi-channel full real-time playback synchronously.



Main and Sub Stream: Main stream for local storage, ensure image quality;Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem.



Mobite monitor: Support various mobile monitoring(iPhone,Windows Mobile,BlackBerry,Symbian,Android)



Display: support TV output,taking the lead in HD resolution technology.



Operation interface: similar to Windows operating style, easy to get started with powerful mouse right-click function.



Network: Powerful network services (support DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP permissions, IP searches, Alarm Center, etc.) and perfect support (WEB, Client, SDK), easy to achieve interoperability.



Browsers: Support multiple web browsers (ie,chrome,firefox, safari)



Remote Access: With its own domain name service functions (ARSP), and one key to remote monitoring,monitoring becomes easy and enjoyable. 3322 (Greek network), dyndns, oray (peanut shells), myq-see and other Domain Name Services are also provided.



Differentiation: Boot screen free replacement, more than twenty languages, over 10 sets of GUI interface, ten kinds of remote control, available in dozens of button panel, which make our products different from others.



Others:Perfect circuit protection, unique triple watchdog function, ensure that the equipment never crashesWith unique black box technology, the whole process can be monitored, which greatly reduces maintenance costs.



4channel Video Input



support 1*SD hard disk and 1*SATA Card Storage;(HDD Maximum 64G, 1*SATA maximum 2T)



support 3G or GPS, not support Wifi





Specification:

  Model MDVR-C22043G
system Main processor Hi3515
Operating system Simultaneous multi-channel real-time recording, playback, network operation, USB backup
System resources support 16-bit true color graphical menu interface and mouse operation
interface user interface Simultaneous multi-channel real-time recording, playback, network operation, USB backup
preview screen 1/4
video vdieo standards PAL(625line,50f/s);NTSC(525line,60f/s)
vdieo compression H.264(Main Profile)
display quality monitor:D1
play quality D1/Half-D1/CIF/QCIF
encode capacity 4ch D1 real-time
decode capacity 2ch D1 real-time
audio motion detect Zones: 392(22*18)detection zones per window,multi-level sensitivity
audio compression G.711A

Record

&

playback

bidrectional talk supported
record mode manual>alarm>motion detection>timing
local playback Any channel playback simultaneously(1-4ch)

Storage

&

backup

search mode Time/calendar/event/channel search
space occupation video:CIF 4~5G/ day*channel, D1 8~10G/ day*channel;
audio:691.2M/ day*channel
record storage 2.5'SATA,network
interface backup mode Network backup,USB,USB Burn
video input 4ch BNC
video output 1ch (1.0Vp-p,75Ω)
audio input 4ch
audio output 1ch(200-3000mV,5K)
alarm input 4ch(uncompatible with mobile signal)
alarm output no(support 1ch expansion)
net interface no
PTZ control One RS485 port
usb One USB port
hard disk One SATA port,max.2T
GPS 3.5mm audio interface

Mobile interface

&

functions

GPIO Support vehicle name,speed,turn light,vehicle door,brake,Steering Information and other signals input;support vehicle information OSD overlay,storage etc..

GPS Module



Supported



WIFI

Not supported





3G



.

Supported(Support EVDO,WCDMA,TD-SCDMA)

  others support delay boot up/shut down
complement player Support google map,showing vehicle running track and data.
Platform Support auto registration,no need of port Mapping,getting rid of 3G access problem.Support google map,showing vehicle running track and data.
SDK Free SDK for second development
others Power supply Wide voltage input 8V~32V,15% overvoltage protection,500MS 60V voltage surge
External power supply Support 4* 12V controllable power supply for external camera
Power consumption <10W(HDD without)
Working temperature 0℃-+55℃
Working humudity 10%-90%
Atmospheric pressure 86kpa-106kpa
Dimension 193(length)*158(width)*66(height)mm
weight 1.4kg
