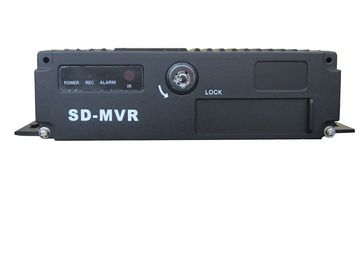

Double SD GPS Mobile CIF DVR Recorder 4 Channel With H.264 Main Profile

Double SD GPS Mobile CIF DVR Recorder 4 Channel With H.264 Main Profile
Double SD GPS Mobile CIF DVR Recorder 4 Channel With H.264 Main Profile Double SD GPS Mobile CIF DVR Recorder 4 Channel With H.264 Main Profile

Large Image :  Double SD GPS Mobile CIF DVR Recorder 4 Channel With H.264 Main Profile

Product Details:
Place of Origin: China
Brand Name: Vicord
Certification: CE,ROHS, FCC
Model Number: MDVR-C1104G
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: Negotiation
Delivery Time: 2 weeks for PO with sales forecast ; 4 weeks for PO without sales forecast
Payment Terms: T/T ; 30% prepayment upon PO release and balance to be paid before shipment
Supply Ability: 50,000PCS/month
Detailed Product Description
High Light:

vehicle mobile dvr

,

vehicle dvr systems

Double SD GPS Mobile CIF DVR Recorder 4 Channel With H.264 Main Profile



Features:

  •  Special Function: Mobile Data, GPS Data, Wide Voltage, WIFI/3G, mobile DVR player, central manage client software, SDK etc...
  •  Compression Algorithm ideal: H.264 Main Profile
  •  Playback quality: 4ch Full D1 playback synchronous;8ch D1 non-realtime or under 2ch D1 +6ch CIF realtime record,Multiple channels realtime playback synchronous
  •  Main and Sub Stream: Dual Stream, Main stream is for local record , sub stream is for network transmission.
  •  Mobile monitor: Support iPhone, Windows Mobile, BlackBerry, Symbian,Android mobile monitor
  •  Display: Support TV, VGA, HDMI(optional) output at the same time.
  •  Operation interface: Similar with WINDOWS, easy and convenient to operate it.
  •  Network: Powerful Network service(Support DAS, DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP permissions, IP search, ALARM CENTER etc...), WEB, mobile CMS, SDK...
  •  Browsers: Support IE, Chrome,Firefox and Safari.
  •  Remote Access: Built-in DDNS(ARSP),dyndns,oray, myq-see, no-ip etc....
  •  Differentiation: boot screen free replacement,twenty multinational language,more than ten kinds of GUI interface,ten kinds of remote control,dozens of key-press panel for combination selection,easy to achieve product differentiation.
  •  Others: With the sound system for the protection circuit, unique triple watchdog function, very low power consumption, to ensure the equipment never be hang up. With the unique black box technology, can monitor the whole run process of the equipment, can greatly reduce the maintenance costs.

Ø 4 channel Video Input

Ø support 2*SD Cardtorage;(2*SD maximum 128G)

Ø support GPS, not support Wifi/3G





Specification:

 ModelMDVR-C1104G
SystemCPUHigh performance embedded microprocessor HuaWei HI3515
Operation SystemEmbedded LINUX
System ResourceMultiple channels realtime recording,playback,network operation and USB backup
ScreenUser InterfaceGUI,on-screen menu tips
Screen Display1/4 screen
VideoStandardPAL(625 line,50f/s); NTSC(525 line,60f/s)
CompressionH.264(Main Profile)
Display QualityTV: D1
Playback QualityD1/HD1/CIF/QCIF
Encode Capacity

100/120fps D1


Decode Capacity50/60fps D1
Motion detectZones:396(22*18)detection zones,Sensitivity:1-6(6 is highest)
AudioCompressionG711A
Talk backSupport

Record
&
Playback

Record ModeManual>Alarm>Video Detection>Timing
Local Playback1~4 channels
Record SearchTime/Date,Alarm,Motion Detection & exact search(accurate to second)

Storage
&
Backup

HDD Occupation

Video: CIF 4~5G/day/channel, D1 16~20G/day/channel
Audio: 691.2M/day/channel

Record StorageLocal HDD,Network, SD card
Backup ModeNetwork/USB movable HDD/USB DVD-RW/SATA DVD-RW/SD card

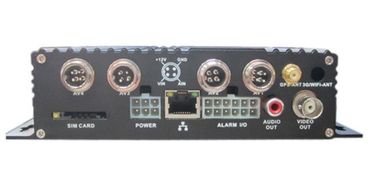

InterfaceVideo Input4ch
Video Output1ch BNC
Audio Input4ch
Audio Output1ch RCA(200-3000mV,5K)
Alarm Input4ch(multiplexing car signals)
Alarm Output1ch
NetworkRJ45 10M/100M
PTZ1 RS485
USB1 USB
SD card2 SD card (Max 2 x 32G,for regular record,redundancy record, backup, snapshot etc...)
GPIOSupport speed,turn light,brake signals input;vehicle information OSD overlay,storage etc...
Mobile Interface and FunctionGPSSupport
WIFINot support
3GNot support
 OthersSupport timing and delay boot up/shut down
ComplementPlayerMobile DVR player,support google map,show vehicle running track and data
Platform Support auto registration, no need router mapping,support google map,show vehicle running track and data
SDKFree SDK for second development
OthersPower SupplyWide voltage input 6V~40V
Dimension170mm * 139mm*40mm
Weight730g
