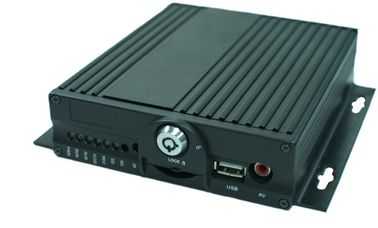

Embedded LINUX 4 Channel Mine Car GPS Mobile DVR Recorder SD With H.264

Embedded LINUX 4 Channel Mine Car GPS Mobile DVR Recorder SD With H.264
Embedded LINUX 4 Channel Mine Car GPS Mobile DVR Recorder SD With H.264 Embedded LINUX 4 Channel Mine Car GPS Mobile DVR Recorder SD With H.264 Embedded LINUX 4 Channel Mine Car GPS Mobile DVR Recorder SD With H.264

Large Image :  Embedded LINUX 4 Channel Mine Car GPS Mobile DVR Recorder SD With H.264

Product Details:
Place of Origin: China
Brand Name: Vicord
Certification: CE,ROHS, FCC
Model Number: MCS1GNN
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: Negotiation
Delivery Time: 2 weeks for PO with sales forecast ; 4 weeks for PO without sales forecast
Payment Terms: T/T ; 30% prepayment upon PO release and balance to be paid before shipment
Supply Ability: 50000 Pcs/Year
Detailed Product Description
High Light:

vehicle mobile dvr

,

vehicle dvr systems

Embedded LINUX 4 Channel Mine Car GPS Mobile DVR Recorder SD With H.264

Feature:

Special function: GPS data,wide voltage,mobile DVR player,SDK etc.
Compression algorithm ideal: H.264 High Profile compression algorithm,30% decrease of stream due to advanced space-time filtering technology
Playback quality: support 4ch D1 real-time recording,2ch Dl real-time playback.
Main Stream: Main stream for local storage, ensure image quality
Display: support TV output
Operation interface: similar to Windows operating style
Differentiation: Boot screen free replacement, more than twenty languages, over 10 sets of GUI interface, ten kinds of remote control, available in dozens of button panel, which make our products different from others.
Others: Perfect circuit protection, unique triple watchdog function, ensure that the equipment never crashes;With unique black box technology, the whole process can be monitored, which greatly reduces maintenance costs.
4 channel Video Input
support 1*SD Card Storage;( SD maximum 64G)
support GPS;


Specification:

 ModelMCS1GNN
systemMain processorIndustrial Embedded Microcontrollers
Operating systemEmbedded LINUX
System resourcesSimultaneous multi-channel real-time recording, playback, network operation, USB backup
interfaceuser interfacesupport 16-bit true color graphical menu interface and mouse operation
preview screen1/4
videovdieo standardsPAL(625line,50f/s);NTSC(525line,60f/s)
vdieo compressionH.264(High Profile)
display qualitymonitor:D1
play qualityD1/Half-D1/CIF/QCIF
encode capacity4ch D1 real-time(default CIF)
decode capacity2ch D1 real-time
motion detectZones: 392(22*18)detection zones per window,multi-level sensitivity
audioaudio compressionG.711A
bidrectional talksupported

Record
&
playback

record modemanual>alarm>motion detection>timing
local playbackAny channel playback simultaneously(1-4ch)
search modeTime/calendar/event/channel search

Storage
&
backup

space occupationvideo:CIF 4~5G/ day*channel, D1 8~10G/ day*channel;
audio:691.2M/ day*channel
record storageSD
backup modeNetwork backup,USB,USB Burn
interfacevideo input4ch
video output1ch RCA (1.0Vp-p,75Ω),1ch cable
audio input4ch
audio output1ch(200-3000mV,5K)
alarm inputno
alarm outputno
net interfaceno
PTZ controlOne RS485,one RS232
usbOne USB

Mobile interface
&
functions

GPIOSupport OSD overlay, storage(optional) etc
GPSSupport
 otherssupport delay boot up/shut down,timing boot up/shut down
complementplayermobile exclusive player,Support google map,showing vehicle running track and data.
SDKFree SDK for second development
othersPower supplyWide voltage input 8V~32V,15% overvoltage protection,500MS 60V voltage surge
External power supplySupport 4* 12V controllable power supply for external camera,independent 12V/1.5A,5V/1.5A output
Power consumption<10W
Working temperature0℃-+55℃
Working humudity10%-90%
Atmospheric pressure86kpa-106kpa
Dimension130(L)*147(W)*36(H)mm
weight420g



Embedded LINUX 4 Channel Mine Car GPS Mobile DVR Recorder SD With H.264 0

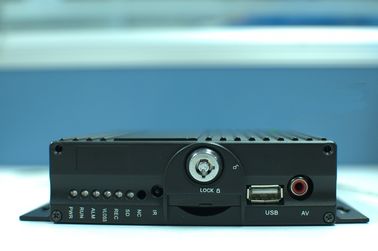

1. Power Indicator    2. Run Indicator    3. Alarm Indicator    4. Video Loss Indicator    5. Record Indicator
6. SD Indicator     7. NC      8. IR receiver     9. SD card      10. USB    11.  video output     12. SD lock
Embedded LINUX 4 Channel Mine Car GPS Mobile DVR Recorder SD With H.264 1

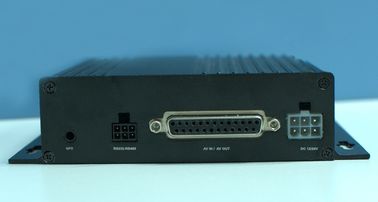

1. GPS     2. RS232&RS485     3. Video & audio input/output,power output     4. Power input
