H.264 Compression GPS Mobile DVR Algorithm Local Playback With Wifi GPS

H.264 Compression GPS Mobile DVR Algorithm Local Playback With Wifi GPS
H.264 Compression GPS Mobile DVR Algorithm Local Playback With Wifi GPS

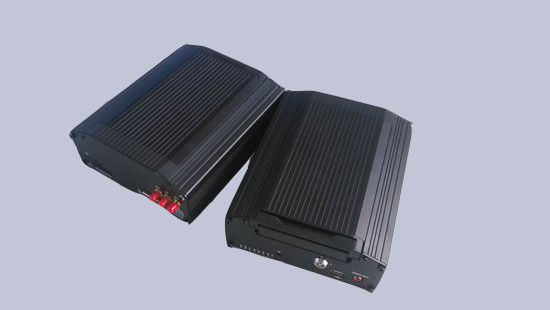

Large Image :  H.264 Compression GPS Mobile DVR Algorithm Local Playback With Wifi GPS

Product Details:
Place of Origin: China
Brand Name: Vicord
Certification: CE,ROHS, FCC
Model Number: MCH4GNW
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: Negotiation
Delivery Time: 2 weeks for PO with sales forecast ; 4 weeks for PO without sales forecast
Payment Terms: T/T ; 30% prepayment upon PO release and balance to be paid before shipment
Supply Ability: 50000 Pcs/Year
Detailed Product Description
Vdieo Standards: PAL(625line,50f/s);NTSC(525line,60f/s) Play Quality: 960H/D1/Half-D1/CIF/QCIF
Vdieo Compression: H.264(Main Profile) Video Input/output: 4ch
USB: One USB Power Consumption: Less Than10W(HDD Without)
High Light:

vehicle mobile dvr

,

vehicle dvr systems

H.264 Compression GPS Mobile DVR Algorithm Local Playback With Wifi GPS







Application



 Mainly in the bus, taxi, bus, transportation, mining vehicles, engineering vehicles, traffic, police, medical car, bus used on these occasions, improve security and safeguard the personal safety.
      The car in addition to the driver, there will be the passenger, in the protection of its own security, at the same time, we are also responsible for the safety of others.So on the vehicle safety of this product, and time will guarantee your safety, make you relaxed driving, Home safely.



Feature:

  • Special function:Mobile data,BDS,GPS data,G-Sensor ,wide voltage,WIFI/3G,mobile DVR player,central management software,SDK etc.
  • Compression algorithm ideal:H.264 High Profile compression algorithm,30% decrease of stream due to advanced space-time filtering technology.
  • Playback quality:support 4ch D1,4ch 960H,8ch D1 real-time recording
  • Main and Sub Stream:Main stream for local storage, ensure image quality;Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem.
  • Mobite monitor: Support various mobile monitoring(iPhone,Windows Mobile,BlackBerry,Symbian,Android)
  • Display:support TV output,taking the lead in HD resolution technology.
  • Operation interface:similar to Windows operating style, easy to get started with powerful mouse right-click function.
  • Network:Powerful network services (support DAS,DHCP,PPPOE,FTP,DNS,DDNS,NTP,UPNP,EMAIL, IP permissions, IP searches, Alarm Center, etc.) and perfect support (WEB, Client, SDK), easy to achieve interoperability.
  • Browsers:Support multiple web browsers (ie,chrome,firefox, safari)
  • Remote Access:With its own domain name service functions (ARSP), and one key to remote monitoring,monitoring becomes easy and enjoyable. 3322 (Greek network), dyndns, oray (peanut shells), myq-see and other Domain Name Services are also provided.

Ø 4 channel Video Input

Ø support 1*HDD Storage;( HDD maximum 2T)

Ø  support Wifi;

Ø Support GPS;



Specifications:



  Model

MCH4GNW

system Main processor Hi3520D
Operating system Embedded LINUX operating system
System resources Simultaneous multi-channel real-time recording, playback, network operation, USB backup
interface user interface support 16-bit true color graphical menu interface and mouse operation
preview screen 1/4
video vdieo standards PAL(625line,50f/s);NTSC(525line,60f/s)
vdieo compression H.264(Main Profile)
display quality Monitor:D1
play quality 960H/D1/Half-D1/CIF/QCIF
encode capacity 4ch 960H real-time
decode capacity 1ch 960H real-time
motion detect Zones: 392(22*18)detection zones per window,multi-level sensitivity
audio audio compression G.711A
bidrectional talk supported

Record

&

playback

record mode manual>alarm>motion detection>timing
local playback Any channel playback simultaneously(1-4ch)
search mode Time/calendar/event/channel search

Storage

&

backup

space occupation video:CIF 4~5G/ day*channel, D1 8~10G/ day*channel;
audio:691.2M/ day*channel
record storage HDD,network
backup mode Network backup,USB HDD,USB writer,U disk
interface video input 4ch
video output 1ch RCA (1.0Vp-p,75Ω),1ch for cable
audio input 4ch
audio output 1ch (200-3000mV,5K)
alarm input 4ch(multiplexing vehicle signal)
alarm output 2ch
RJ45 interface no
RS485, RS232 One RS485,one RS232
USB One USB
HDD One SATA port,max.4T
Mobile interface &functions GPIO signal Support vehicle name,speed,turn light,vehicle door,brake,Steering Information and other signals input;support vehicle information OSD overlay,storage etc.
GPS Support
WIFI module Not Support
3G module Not Support

G-Sensor

(optional)

Not supported
  others support delay boot up/shut down
complement Exclusive player Support google map,showing vehicle running track and data.
Platform Support auto registration,no need of port Mapping,getting rid of 3G access problem.Support google map,showing vehicle running track and data
SDK Free SDK for second development
others Power supply Wide voltage input 6V~36V,15% overvoltage protection,500MS 60V voltage surge
External power supply Support 8* 12V controllable power supply for external camera,exclusive 12V and 5V output
Power consumption <10W(HDD without)
Working temperature 0℃-+55℃
Working humudity 10%-90%
Atmospheric pressure 86kpa-106kpa
Dimension 193(length)*198(width)86(height)mm
weight 1.5kg
