Wide Voltage 4 Channel 960H GPS HDD Storage Motion Detect Bidrectional Talk Mobile DVR

China Wide Voltage 4 Channel 960H GPS HDD Storage Motion Detect Bidrectional Talk Mobile DVR supplier

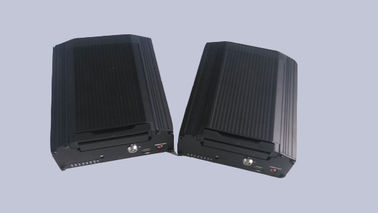

Large Image :  Wide Voltage 4 Channel 960H GPS HDD Storage Motion Detect Bidrectional Talk Mobile DVR

Product Details:

Place of Origin: China
Brand Name: Vicord
Certification: CE,ROHS, FCC
Model Number: MCH4GNN

Payment & Shipping Terms:

Minimum Order Quantity: 200pcs
Price: Negotiation
Delivery Time: 2 weeks for PO with sales forecast ; 4 weeks for PO without sales forecast
Payment Terms: T/T ; 30% prepayment upon PO release and balance to be paid before shipment
Supply Ability: 50000 Pcs/Year
Contact Now
Detailed Product Description
Bidrectional Talk: Supported Record Storage: HDD,network
Backup Mode: Network Backup,USB HDD,U Disk Exclusive Player: Support Google Map
Main Processor: Hi3520D Network Transmission: Support

Wide Voltage 4 Channel 960H GPS HDD Storage Motion Detect Bidrectional Talk Mobile DVR



       Mobile Dvr Security products, to provide you with a safe and comfortable driving time, our product is standing in the user's perspective, the more used for bus, taxi, bus, transportation, mine vehicles, engineering vehicles, traffic, police, medical vehicles, car occasions like this.
       Safety and health of customers and making our motivation.Usually sit in the car I wonder if you a person, there will be others, you more considering the safety of others, so your responsibility greaten, put this product installed on your car, can reduce the fatigue driving, safety comfort.





       1. Special function:Mobile data,BDS,GPS data,G-Sensor ,wide voltage,WIFI/3G,mobile DVR player,central management software,SDK etc.

2. Compression algorithm ideal:H.264 High Profile compression algorithm,30% decrease of stream due to advanced space-time filtering technology.

3.Playback quality:support 4ch D1,4ch 960H,8ch D1 real-time recording

4. Main and Sub Stream:Main stream for local storage, ensure image quality;Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem.

5.Mobite monitor: Support various mobile monitoring(iPhone,Windows Mobile,BlackBerry,Symbian,Android)

6.Display:support TV output,taking the lead in HD resolution technology.

7.Operation interface:similar to Windows operating style, easy to get started with powerful mouse right-click function.

8. Network:Powerful network services (support DAS,DHCP,PPPOE,FTP,DNS,DDNS,NTP,UPNP,EMAIL, IP permissions, IP searches, Alarm Center, etc.) and perfect support (WEB, Client, SDK), easy to achieve interoperability.

9.Browsers:Support multiple web browsers (ie,chrome,firefox, safari)

10.Remote Access:With its own domain name service functions (ARSP), and one key to remote monitoring,monitoring becomes easy and enjoyable. 3322 (Greek network), dyndns, oray (peanut shells), myq-see and other Domain Name Services are also provided.

11.Differentiation: Boot screen free replacement, more than twenty languages, over 10 sets of GUI interface, ten kinds of remote control, available in dozens of button panel, which make our products different from others.

12.Others:Perfect circuit protection, unique triple watchdog function, ensure that the equipment never crashes;With unique black box technology, the whole process can be monitored, which greatly reduces maintenance costs.

13.8 channel Video Input

14.upport 1*HDD Storage;( HDD maximum 2T)

15. Support GPS



  Model MCH4GNN
system Main processor Hi3520D
Operating system Embedded LINUX operating system
System resources Simultaneous multi-channel real-time recording, playback, network operation, USB backup
interface user interface support 16-bit true color graphical menu interface and mouse operation
preview screen 1/4
video vdieo standards PAL(625line,50f/s);NTSC(525line,60f/s)
vdieo compression H.264(Main Profile)
display quality Monitor:D1
play quality 960H/D1/Half-D1/CIF/QCIF
encode capacity 4ch 960H real-time
decode capacity 1ch 960H real-time
motion detect Zones: 392(22*18)detection zones per window,multi-level sensitivity
audio audio compression G.711A
bidrectional talk supported




record mode manual>alarm>motion detection>timing
local playback Any channel playback simultaneously(1-4ch)
search mode Time/calendar/event/channel search




space occupation video:CIF 4~5G/ day*channel, D1 8~10G/ day*channel;
audio:691.2M/ day*channel
record storage HDD,network
backup mode Network backup,USB HDD,USB writer,U disk
interface video input 4ch
video output 1ch RCA (1.0Vp-p,75Ω),1ch for cable
audio input 4ch
audio output 1ch (200-3000mV,5K)
alarm input 4ch(multiplexing vehicle signal)
alarm output 2ch
RJ45 interface no
RS485, RS232 One RS485,one RS232
HDD One SATA port,max.4T
Mobile interface &functions GPIO signal Support vehicle name,speed,turn light,vehicle door,brake,Steering Information and other signals input;support vehicle information OSD overlay,storage etc.
GPS Support
WIFI module Support
3G module Support( support EVDO & WCDMA & TD-SCDMA)



Not supported
  others support delay boot up/shut down
complement Exclusive player Support google map,showing vehicle running track and data.
Platform Support auto registration,no need of port Mapping,getting rid of 3G access problem.Support google map,showing vehicle running track and data
SDK Free SDK for second development
others Power supply Wide voltage input 6V~36V,15% overvoltage protection,500MS 60V voltage surge
External power supply Support 8* 12V controllable power supply for external camera,exclusive 12V and 5V output
Power consumption <10W(HDD without)
Working temperature 0℃-+55℃
Working humudity 10%-90%
Atmospheric pressure 86kpa-106kpa
Dimension 193(length)*198(width)86(height)mm
weight 1.5kg
