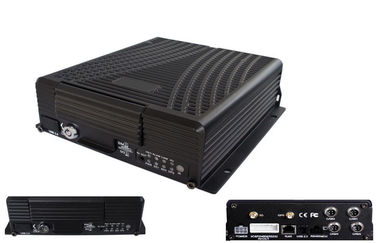

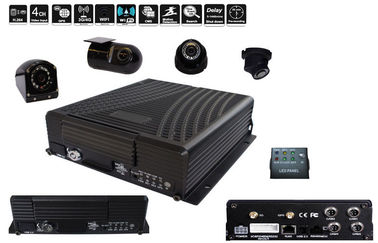

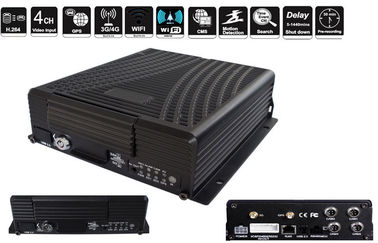

G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus

G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus
G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus

Large Image :  G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus

Product Details:
Place of Origin: China
Brand Name: QOHO
Certification: CE,FCC
Model Number: QH-MDVR8104HG
Payment & Shipping Terms:
Minimum Order Quantity: 1pc(sample test)
Price: Negotiate
Packaging Details: 8pcs/CTN
Delivery Time: Within 5-7 days after received payment
Payment Terms: T/T or West union
Supply Ability: 10000pcs/month
Detailed Product Description
High Light:

mobile digital video recorder

,

digital video recorder h.264

G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus





Description:



GPS Mobile DVR H.264 G-sensor HDD 4 Channel MDVR 4-ch Online For Bus



• 4-CH HDD mobile DVR can support alarm button, intercom, LED panel(MDVR work status) and BUS IC reader function.

• 1TB HardDisk anti-vibration or SD.

• 4-CH Full D1 3G Mobile DVR.

• H.264 video compression.

• Supports 3G(WCDMA/EVDO/HSPA)/4G network.

• supports 4 channels full D1, 8 alarm input, 4 alarm output. wifi and GPS.

• UPS battery support 1 hours after power off.



It can install all kinds of vehicles, such as, taxi, bus, school bus, truck, trailer, car, SUV, ambulance and so on.





Product Technical parameters:



System

language

Chinese/ English

Operation system

Linux

Operation interface

Graphical User interface(OSD menu)

Password

User /Admin password

Control mode

IR remote control

Video

Video input

4-ch video composite input

Video output

1-ch composite output

Display mode

Single/ 4-ch video

Video compression

H.264 Main profile

PAL:100f at D1/s, NTSC: 120f at D1/s

Video Signal

NTSC,PAL

Audio

Audio input

4-ch audio input

Audio output

1-ch audio output

Recording mode

Audio & Video sync Recording

Phone

Support IP call and analog voice call

Image processing & storage



Image format mode

CIF/HD1/D1 optional

Video stream Standard

ISO14496-10

Video bitrate

CIF: 1536Kbps ~ 128Kbps,4 levels optional.

Highest:0 level; Lowest: 3 level

HD1: 2048Kbps ~ 512Kbps,4 levels optional.

Highest:0 level; Lowest: 3 level

D1:  4Mbps ~ 1Mbps,4 levels optional.

Highest:0 level; Lowest: 3 level

Audio Bitrate

8KB/s

Storage

Built-in a SATA HDD, support HDD Max 1TB;

And built-in a SD card, Support SD card Max 128GB;

Alarm

Alarm input

8 alarm input, below 4V is low level alarm, above 4V are high level alarm

Alarm output

2 alarm output, output high level:12V

Communication Interface

RS485 Interface

Support 3-RS485 interface

RS232 Interface

Support 1-RS232 interface

WIFI Interface

Support RJ45 interface external 802.11b/g

USB interface

Include 2 USB interfaces,1 USB interface connect with external Vehicle Black data box, another USB interface to upgrade software and copy data.

Audio&Video interface

Support Audio and Video output

Acceleration Sensor

Built in acceleration G-Sensor

Module

GPS

GPS module. GPS Graph and GPS speed can be read in coding flow, and

can beuploadedvia wireless

3G

WCDMA / EVDO/HSPA(TD-SCDMA) module

WIFI

RJ45 interface external WIFI, IEEE802.11n, Up to 300 Mbps physical data transfer speed, satisfy huge data Transmission;

Software

PAS(Playback Analysis Software)

Playback Recording on PC, and analyze the vehicle recording information.

CMS(Center Management Software)

Center management software to meet Video preview, upload and central command and parameters configuration, etc.

Software upgrade

U-disk upgrade directly.





MDVR Electric Specifications



Items

Parameters

Specifications

Power input

8—36V

Input voltage:+8V~+36V, When long-term under 8V, or long-term over 36V, Auto power off, enter protected mode.

Power output

12V

12V(+/-0.2V), Max:3A.

Power-off working time

8S

If main power supply is off, MDVR can continue running 8 seconds. If connect built-in Patent UPS power-supply, MDVR can continue running 30 minutes.

Vehicle key signal

≤4V

OFF

≥5V

ON

Video input impedance

75Ω

75Ω for each video input impedance

Video output Volt

2Vp-p

Input 2Vp-p CVBS analog signal, reveal device input need 75Ω impedance to fit

I/O interface

0—4V

Low level alarm

4V above

High level alarm



-4V below

Negative voltage alarm

Operating Temperature

-25℃-85℃

Under well-ventilated environment condition.

Body Dimension

186(W)mm x 61(H) x 192(L)mm

G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 0



Our mobile DVR and car cameras have been got great effect from over all the world!



G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 1





Installation picture.



G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 2



Our mobile DVR and car cameras have had a great contribution for Government and Policeman in Australia!



G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 3G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 4





HDD Mobile DVR can install all kinds of vehicles, bus, school bus, car(SUV), taxi, truck and longer trailer and so on...

G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 5G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 6



4-CH Full D1 3G Mobile DVR SATA HDD



G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 7

G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 8

G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 9





Product size:



   G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 10    G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 11



Product work diagram:

G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 12



Advantage:



Remote view in real time recording on Iphone/Ipad/Android phone/PC once MDVR is built-in 3G.



G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 13

G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 14

Support Intercom and Alarm button:



G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 15G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 16



LED panel for MDVR working status



G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 17



Work 1 hour after power off



G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 18



Support Bus IC reader



G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 19



Production line:



G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 20

G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 21





Playback all video file and GPS tracking(Playback Analysis Software).



G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 22


G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 23


G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 24


Center Management Software:



G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 25



G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 26



G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 27



CMSViewer(Remote view in realtime recording once mobile DVR is built-in 3G):



G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 28

G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 29

G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 30

G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 31

G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 32

G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 33

Remote live via via website/internet for FLV format.

G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 34

G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 35

G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 36

G-sensor GPS Mobile DVR H.264 HDD 4 Channel MDVR 4-ch Online For Bus 37
