Internal Wi-Fi car DVR with H.264 GPS mobile DVR , supports 1 SD cards up to 128GB , GPS

China Internal Wi-Fi car DVR with H.264 GPS mobile DVR , supports 1 SD cards up to 128GB , GPS supplier
Internal Wi-Fi car DVR with H.264 GPS mobile DVR , supports 1 SD cards up to 128GB , GPS supplier Internal Wi-Fi car DVR with H.264 GPS mobile DVR , supports 1 SD cards up to 128GB , GPS supplier Internal Wi-Fi car DVR with H.264 GPS mobile DVR , supports 1 SD cards up to 128GB , GPS supplier Internal Wi-Fi car DVR with H.264 GPS mobile DVR , supports 1 SD cards up to 128GB , GPS supplier

Large Image :  Internal Wi-Fi car DVR with H.264 GPS mobile DVR , supports 1 SD cards up to 128GB , GPS

Product Details:

Place of Origin: China
Brand Name: QOHO
Certification: CE,FCC
Model Number: QH-MDVR7104S

Payment & Shipping Terms:

Minimum Order Quantity: 1pc(sample test)
Price: Negotiate
Packaging Details: 12pcs/CTN
Delivery Time: Within 5-7 days after received payment
Payment Terms: T/T or West union
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description

Internal Wi-Fi car DVR with H.264 GPS mobile DVR , supports 1 SD cards up to 128GB , GPS





Description:

4-CH Single SD card mobile DVR support GPS and 3G.

• 4 ch video & audio inputs;

• 2 D1+ 2 CIF H.264 Compression;

• Four alarm inputs & one alarm output;

• one RS485, one RS232;

• Embedded G-sensor;

• power input: +8V --- +36V;

• Built-in  GPS function,3G. Support Dual SD card if don't need WIFI.

Our mobile DVR supports almost 3G and 4G in different frequency.

Internal Wi-Fi car DVR with H.264 GPS mobile DVR , supports 1 SD cards up to 128GB , GPS

Product Technical parameters:

System

language

Chinese/ English

Operation system

Linux

Operation interface

Graphical User interface(OSD menu)

Password

User /Admin password

Control mode

IR remote control

Video

Video input

4-ch video composite input

Video output

1-ch output

Display mode

Single/ 4-ch video

Video compression

H.264 Main profile

PAL:100f at D1/s, NTSC: 120f at D1/s

Video Signal

PAL, NTSC

Audio

Audio input

4-ch audio input

Audio output

1-ch audio output

Recording mode

Audio & Video sync Recording

Image processing & storage

Image format mode

CIF/HD1/D1 optional

Video stream Standard

ISO14496-10

Video bitrate

CIF: 1536Kbps ~ 128Kbps,

HD1: 2048Kbps ~ 380Kbps,

D1:  2048Kbps ~ 400Kbps

8 levels optional. Highest:1 level; Lowest: 8 level

Audio Bitrate

8KB/s

Storage

Support Dual SD card, Max 64GB(single),total 128GB;

Alarm

Alarm input

4 alarm input, below 4V is low level alarm, above 4V are high level alarm

Alarm output

2 alarm output, output high level:12V

Communication Interface

RS485 Interface

Support 2-RS485 interface

RS232 Interface

Support 1-RS232 interface

Extended interface

announce

support extended announcer or LED panel

SPEAK

SPEAK+,SPEAK-

Acceleration Sensor

Acceleration G-Sensor(optional)

Module

GPS

GPS module. GPS Graph, GPS speed etc can be read in coding flow,and can be uploaded via wireless

3G/4G

WCDMA / EVDO/HSPA(TD-SCDMA) module

WIFI

Built-in WIFI(can't support)

Software

PAS(Playback Analysis Software)

Playback Recording on PC, and analyze the vehicle recording information.

Software upgrade

Upgrade via SD card directly.

Vehicle key signal

≤4V

OFF

≥5V

ON

Working environment

Working voltage

Input voltage DC8V-36V,enter into protected mode if it’s not in the range.

Power output

Output voltage 12V(±0.2V),Max: 2A

Input impedance

75Ω for each input impedance

Working temperature

 -25℃-85℃

Working humidity

20%-95%

Body Dimension

154x125x45(mm)

Single SD card Car mobile DVR with GPS and 3G support max 128GB SD card

Internal Wi-Fi car DVR with H.264 GPS mobile DVR , supports 1 SD cards up to 128GB , GPS

Internal Wi-Fi car DVR with H.264 GPS mobile DVR , supports 1 SD cards up to 128GB , GPS

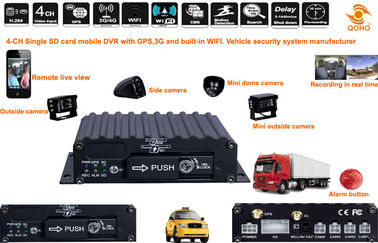

Product work diagram:



Internal Wi-Fi car DVR with H.264 GPS mobile DVR , supports 1 SD cards up to 128GB , GPS



Advantage:

Our mobile DVR have been got good praise and popular in the fair all over the world.



Internal Wi-Fi car DVR with H.264 GPS mobile DVR , supports 1 SD cards up to 128GB , GPS

Installation picture(Most cameras are our own private model):

Internal Wi-Fi car DVR with H.264 GPS mobile DVR , supports 1 SD cards up to 128GB , GPS

Remote view in real time recording on Iphone/Ipad/Android phone/PC once MDVR is built-in 3G.

Internal Wi-Fi car DVR with H.264 GPS mobile DVR , supports 1 SD cards up to 128GB , GPS



Internal Wi-Fi car DVR with H.264 GPS mobile DVR , supports 1 SD cards up to 128GB , GPS



Playback all video file and GPS tracking(Playback Analysis Software).

Internal Wi-Fi car DVR with H.264 GPS mobile DVR , supports 1 SD cards up to 128GB , GPS


Internal Wi-Fi car DVR with H.264 GPS mobile DVR , supports 1 SD cards up to 128GB , GPS


Internal Wi-Fi car DVR with H.264 GPS mobile DVR , supports 1 SD cards up to 128GB , GPS


Center Management Software:



Internal Wi-Fi car DVR with H.264 GPS mobile DVR , supports 1 SD cards up to 128GB , GPS



Internal Wi-Fi car DVR with H.264 GPS mobile DVR , supports 1 SD cards up to 128GB , GPS



Internal Wi-Fi car DVR with H.264 GPS mobile DVR , supports 1 SD cards up to 128GB , GPS

CMSViewer(Remote view in realtime recording once mobile DVR is built-in 3G):

Remote view with Google map,position,speed,position and status:

Internal Wi-Fi car DVR with H.264 GPS mobile DVR , supports 1 SD cards up to 128GB , GPS

Internal Wi-Fi car DVR with H.264 GPS mobile DVR , supports 1 SD cards up to 128GB , GPS



Internal Wi-Fi car DVR with H.264 GPS mobile DVR , supports 1 SD cards up to 128GB , GPS

Track on the CMSviewer software:

Internal Wi-Fi car DVR with H.264 GPS mobile DVR , supports 1 SD cards up to 128GB , GPS

Internal Wi-Fi car DVR with H.264 GPS mobile DVR , supports 1 SD cards up to 128GB , GPS


Internal Wi-Fi car DVR with H.264 GPS mobile DVR , supports 1 SD cards up to 128GB , GPS

Internal Wi-Fi car DVR with H.264 GPS mobile DVR , supports 1 SD cards up to 128GB , GPS

Internal Wi-Fi car DVR with H.264 GPS mobile DVR , supports 1 SD cards up to 128GB , GPS



Internal Wi-Fi car DVR with H.264 GPS mobile DVR , supports 1 SD cards up to 128GB , GPS
Internal Wi-Fi car DVR with H.264 GPS mobile DVR , supports 1 SD cards up to 128GB , GPS
