Product Details:
Place of Origin: China
Brand Name: Jasanwit
Certification: CE;FCC;ROSH
Model Number: JW-MRND-7508-GW001-A01
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiation
Packaging Details: <3.3kg(without hard disk)
Delivery Time: 3-7days after payment
Payment Terms: T/T;Western Union
Supply Ability: 20000/month
Detailed Product Description
High Light:

mobile dvr for ship&boat

,

black box

,

1080p mobile dvr

8CH IP Mobile NVR

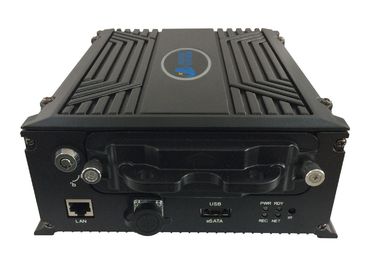

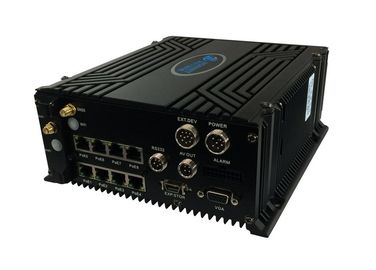

JW-MRND-7508-GW001-A01 MNVR Series

8CH 1080P Mobile DVR NVR with 3G, GPS, WiFi, RS485 / RS232 Alarm Port HDD Storage Mobile DVR Recorder 08CH 1080P Mobile DVR NVR with 3G, GPS, WiFi, RS485 / RS232 Alarm Port HDD Storage Mobile DVR Recorder 1

JW-MRND-7508-GW001-A01 MNVR Series is an embedded Linux operating system of vehicle mounted video and audio monitoring dedicated NVR products, which with function of video and audio code, 3G/4G, WIFI, satellite positioning, safe data storage, disk vibration protection etc, also it can provide a flexible channel selection and coding scheme, especially suitable for all kinds of audio monitoring public transportation, passenger buses, school buses, rail transportation vehicles.

Model: JW-MRND-7508-GW001-A01

Suffix type

Network function

3G(WCDMA)

Mobile 4G(TD-LTE)

/GW

/LTE

/EV

Note: “√” means support wireless network, if you need this function, please add related suffix type at the back of the basic model when place order.

Basic Specification

  • 8 channel IP camera input, POE power supply, 1080P resolution, H.264 video compression.
  • 3 channel CVBS video output, 2 channel CVBS audio output, and G.722 video encoding .
  • One channel VGA output, up to 1920×1080P resolution.
  • Newest GUI interface for vehicle, good user experience, simple operation.
  • Simultaneous two pluggable 2.5 inch HDD/SSD (Max 2TB in storage for each).
  • Hard disk box with patented vibration control technology, with a new generation of independent intellectual property rights.
  • With power-off protection function, enable the built-in standby power automatic when a sudden power-off supply to make the device off normally, to prevent data loss.
  • Internal 3G(WCDMA/EVDO) or 4G(TD-LTE) wireless module, WIFI module reserve, providing flexible wireless transmission solutions.
  • Pluggable communication modules, easily upgrading.
  • With intelligent temperature control system of the hard disk box.
  • With USB interface of the hard disk box, convenient for user transmit data.
  • Internal high sensitivity satellite module, extended Beidou module reserve. Location information packaged into video stream synchronously.
  • With interface that record the details like turns, brake and backing up.
  • Special aviation plugs for vehicle,ensure signal transmit stably.
  • Power boot,power off delay(0-6 hours)and 24 hour timer start up or off.
  • DC 8V to 36V wide range voltage power supply, meet the requirements of vehicle electrical characters.
  • Aluminum metal shell and fanless design, good vehicle working environment adaptability.

Parameters:

Video/Audio input

audio input

8ch,with POE

video input

8ch,with POE

bandwidth

160Mbps

Video/audio output

video output

3ch CVBS output(aviation plug, 1.0Vp-p, 75Ω)

Resolution:PAL:704*576;NTSC:704*480

1ch VGA output,resolution optional:
1920*1080/60Hz;1280*1024/60Hz

1280*760/60Hz;1024*768/60Hz

audio output

3ch,(aviation plug,1.0Vp-p, 75Ω)

video compression

H.264

Video/Audio coding parameters

video resolution

1080P/720P

preview output

8ch

playback

1ch

Hard drive

hard disk storage

2 SATA HDD/SSD hard disk,2.5 inch,external storage

assemble

Plug-pull

panel

with vibration control technology.

data back-up

Plug-pull HD,e-SATA,USB

Wireless transmit

3G

Support EVDO,WCDAM,TD-LTE,dual card reserve

WIFI

Internal WIFI module,802.11 b/g/n,2.4GHz

Satellite

satellite

Internal high sensor GPS module,BDS optional.

Interface

alarm in

7ch,1ch pulse acquisition,3mm connector

alarm out

2ch,digital output

LAN

1 RJ45

POE

8 RJ45,with wires

antenna

3G antenna,2pcs(on extensible module,one position reserve );1 WIFI antenna;1 GPS antenna;SMA interface

e-SATA

1

external storage

1

serial interface

1 RS232,1 RS422(aviation plug)

SIM card

2 SIM slot(on external module,one position reserve)

Other

operate system

Linux

power supply

input:DC +8~ +36V;

output:DC +12V/2A、+5V/1A

operate method

Remote controller

power

Max:0.5W(standby);Max:20W(full load,without IPC and hard disk)

temperature

-10 to + 55

humidity

10%~90%

dimension

245.8*202*86.87mm

weight

<3.3kg(without hard disk)

Why to choose Jasanwin this style Mobile DVR?
1.This Mobile DVR is designed for mass-market mobile monitoring design a cost-effective

vehicle monitoring SD recorder.
2.Wide power input, SD card, USB, use a professional and reliable air plug connector;

support the expansion WIFI, GPS, 3G module.
3.Appearance of small simple operation and easy installation, the system is stable. Support

mobile phone monitoring.
4.Widely used in passenger cars, buses, taxis, school buses, logistics vehicles, dangerous

goods vehicles, private cars, and ships.
5.Software is independent intellectual property rights with Chinese government

department's operation test. 60000 devices can be stable managed by it.
Communication with customers:
A: Hello, May you help me ?
B: What’s the different from JW-MR-HD0415-NN001-A14 and JW-MR-HD0415-GW005

-A14?
A:Dear, We are Jasanwin Intelligent Technology Co., Ltd in China. Pleasure to help

you.NN001 just the basic version for recording, But GW005 can use the 3G SIM card for

the data transmission and Realtime monitoring, plus the GPS can locate the vehicles

precisely that can be understanded easily to the work fields by you. Meanwhile, the series

support PTZ remote control, LED screen remote control, Talkback, Broadcast ..

B: Well ,we never had a problem with them before but we bought some from other

suppliers, hows that for quality control in your factory?
A: We have the FCC,ROHS and CE to inspection the Mobile DVRs and the defective rate

is 0.2%.
B: How long time for 500pcs JW-GW005?
A: 4-8 Days is okay with laser Logo and Silk-print.
B: Which shipping partner is available to UK?
A: DHL, UPS, TNT, FEDEX, EMS and shipment by air or sea are okay. Which shiping cost

is cheaper and speed is good, I will suggestion to you. 5-6 days can arrive UK.
B: How long is your quality guarantee period
A: In usually, the DVR is 24 month.
B: Great, TKS. Do it.
