Product Details:
Payment & Shipping Terms:
|
| Features: | Loop Recording In 4-way DVR | Voltage: | DC 12V/24V |
|---|---|---|---|
| View Angle: | 180 Degree For Each Camera | Resolution: | 720 P |
| Waterproof: | IP67 | Suitable Model: | KIA SporTage |
| High Light: | rearview camera system,around view monitor system |
||
Quick Details:
360 Degree around Bird view Parking System Around View Monitor / AVM Parking Guidance System With DVR function Specific for KIA SporTage
Type: 360 Degree Car Visual Security Parking System
Voltage: DC 12V
Car make: for KIA SporTage
Resolution: 720p
MOQ: 1 set
Place of origin: Guangzhou China.
Description:

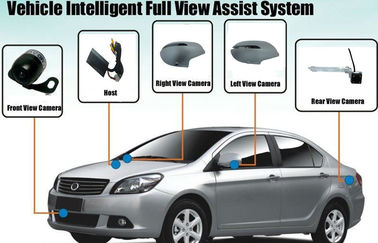

360 degree Bird-view Parking Assistant System is a system that through 4 pcs. extra wide angle cameras at front, rear, left and right side, collecting images around the car to form a 360°bird-view image by image software tool and splicing technology, then sending the images to the SZM display equipment.
Through this system, drivers can visually know car’s position and the around objects, and control parking the car easily, or reduce traffic accidents, like scratch, crash, or sink.
Product Details
|
Item |
usage |
|
Bird-view CPU Box |
system core part |
|
Front camera |
180°wide angle HD night vision Camera at car front |
|
Right camera |
180°wide angle HD night vision Camera at car right side |
|
Rear camera |
180°wide angle HD night vision Camera at car rear |
|
Left camera |
180°wide angle HD night vision Camera at car left side |
|
Camera extension line |
camera’s power supply changeover and extension connection |
|
Controlling wire |
wires to reverse line, left/right signal line, infrared line… |
Applications:
This unit is specific for KIA SporTage car, a helpful tool for drivers to park cars.
We have many models for choice for specific brand cars, like for AUDI, VW, TOYOTA, HYUNDAI, KIA, and so on. If you have special requirement, welcome to send us enquiry!
Specifications:
Key Specifications/Special Features:
o Left/right rear-view mirror cameras specially design for Toyota Crown
o Capture the image of 4 different views with the use of 4 wide angle cameras (fish-eye angle) installed around the car, after image processing and stitching and synthesizes to a panoramic view image with 360° from top-down (bird view) surrounding the car, and the panoramic view timely transferred to the display screen of the control center
o Equipped with DVR to record image from 4 cameras
o Front view + bird view
o Rear view + bird view
o Left/right side view + bird view
o Your on-site witness, automatically record when ignition on
o Shutdown time-lapse delay recording
o Synchronous video replay and recording
o Manually open/close recording quickly
o Replay video at any time
o Date/time shown on video
o Loop recording
o Image sensor: CMOS high-definition sensor AR0130
o Waterproof and weather-resistant housing for outdoor use
o Good night vision performance, small noise and no color aberration
o 180° wide viewing angle
o Picture elements: NTSC/PAL
o Effective pixels: 720p
o Horizontal resolution: 580TVL
o Video output: 1.0Vp-p 75Ω
o Low illumination: 0.5 lux
o Gain control: automatic
o White balance: automatic
o Backlight compensation: automatic
o Working temperature: -20 to 70°C
o Storage temperature: -20 to 70°C
o Waterproof level: IP67
Primary Competitive Advantages:
Tag Words:
360 degree bird view parking system, around view monitor parking guidance system, AVM parking system, 360 degree bird view parking system with DVR function…..
