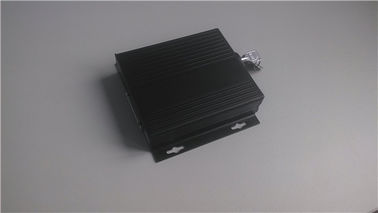

Remote PTZ Control SD Mobile DVR , Main Stream Local Storage Mobile DVR Recorder

China Remote PTZ Control SD Mobile DVR , Main Stream Local Storage Mobile DVR Recorder supplier

Large Image :  Remote PTZ Control SD Mobile DVR , Main Stream Local Storage Mobile DVR Recorder

Product Details:

Place of Origin: China
Brand Name: Vicord
Certification: CE,ROHS, FCC
Model Number: MCS1GNN

Payment & Shipping Terms:

Minimum Order Quantity: 200pcs
Price: Negotiation
Delivery Time: 1-4 weeks after get the full payment
Payment Terms: T/T 100% before shipment
Supply Ability: 50000 Pcs/Year
Contact Now
Detailed Product Description
Record Storage Capacity: 64G USB: One USB
Power Consumption: Less Than 10W Working Temperature: 0℃-+55℃
Video Input: 4ch Video Output: 1ch RCA (1.0Vp-p,75Ω),1ch Cable

Remote PTZ Control SD Mobile DVR , Main Stream Local Storage Mobile DVR Recorder


Application

Law Enforcement - Patrol Cars,Military - Tanks,Emergency Ambulances, Fire Trucks,Public Buses, Trains, Railways, Subways,Commercial Boats, Heavy Equipment, Limousines, Taxis, Van,Transportation - Freight Liners,Aviation Helicopters, Commercial and Private Aircraft.

Feature:

  1. Professional Vehicle Power Supply, adapt 8-36V wide voltage input, provide in DV Out, Reverse voltage, overload, short circuit etc protection;
  2. Support 4CH Video and 4 Audio input, Frame rate and image qualtiy adjustable, support hightest D1 resolution;
  3. Latest Audio and video compression, adopt H.264 Video compression, G.726 Audio compression,high image quality;
  4. Low power consumption
  5. Operating temperature: 0℃-+55℃
  6. good anti-vibration and anti-high temperature function for stable picture quality
  7. Supports VGA high definition video/audio output
  8. Multiple language options, covers almost all main languages all over the world
  9. Startup recording by default, support auto timed, alarm & manual recording
  10. 4CH CIF, HD1, D1 full real-time recording

 Specification




Model

MCS1GNN

system

Main processor

Industrial Embedded Microcontrollers

Operating system

Embedded LINUX

System resources

Simultaneous multi-channel real-time recording, playback, network operation, USB backup

interface

user interface

support 16-bit true color graphical menu interface and mouse operation

preview screen

1/4

video

vdieo standards

PAL(625line,50f/s);NTSC(525line,60f/s)

vdieo compression

H.264(High Profile)

display quality

monitor:D1

play quality

D1/Half-D1/CIF/QCIF

encode capacity

4ch D1 real-time(default CIF)

decode capacity

2ch D1 real-time

motion detect

Zones: 392(22*18)detection zones per window,multi-level sensitivity

audio

audio compression

G.711A

bidrectional talk

supported

Record
&
playback

record mode

manual>alarm>motion detection>timing

local playback

Any channel playback simultaneously(1-4ch)

search mode

Time/calendar/event/channel search

Storage
&
backup

space occupation

video:CIF 4~5G/ day*channel, D1 8~10G/ day*channel;
 audio:691.2M/ day*channel

record storage

SD

backup mode

Network backup,USB,USB Burn

interface

video input

4ch

video output

1ch RCA (1.0Vp-p,75Ω),1ch cable

audio input

4ch

audio output

1ch(200-3000mV,5K)

alarm input

no

alarm output

no

net interface

no

PTZ control

One RS485,one RS232

USB

One USB

Mobile interface
&
functions

GPIO

Support  OSD overlay, storage(optional) etc

GPS

Support



others

support delay boot up/shut down,timing boot up/shut down

complement

player

mobile exclusive player,Support google map,showing vehicle running track and data.

SDK

Free SDK for second development

others

Power supply

Wide voltage input 8V~32V,15% overvoltage protection,500MS 60V voltage surge

External power supply

Support 4* 12V controllable power supply for external camera,independent 12V/1.5A,5V/1.5A output

Power consumption

<10W

Working temperature

0℃-+55℃

Working humudity

10%-90%

Atmospheric pressure

86kpa-106kpa

Dimension

130(L)*147(W)*36(H)mm

weight

420g
