Camera Car Gps Tracker Device

Camera Car Gps Tracker Device
Camera Car Gps Tracker Device

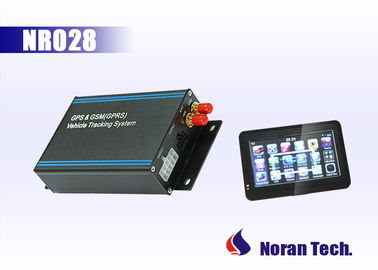

Large Image :  Camera Car Gps Tracker Device

Product Details:
Place of Origin: CHINA
Brand Name: Noran
Certification: CE
Model Number: NR028
Payment & Shipping Terms:
Minimum Order Quantity: 50PCS
Packaging Details: Gift Package/Compressed Package in Carton
Payment Terms: T/T, Western Union, PAYPAL
Supply Ability: 10000PCS/MONTH
Detailed Product Description
Screen: 5inch Touch Screen Brand: Noran NR028
Function: Touch Screen, Mp3/Mp4, Photo Viewer, Car Locator Module: GPS / GSM
Over Speed Alarm: Yes Use: Car / Truck / Bus
High Light:

hidden car gps tracker

,

free car gps tracker

Google Map Camera Car Gps Tracker Device With 5inch Touch Screen Navigator





Defaults Main features:



1. Real time uploads location information via time/distance interval

2. Image transmit

3. Real-time Positioning & Tracking

4. SOS emergency Alert & Power-cut Alert

5. Audio Monitoring(listen-in)

6. Geo-fence Alert & Over Speed Alert

7. Remote Stop Engine

8. With a camera(take photo)

9. Special Vehicle Monitoring (dump trucks pouring, mixers rotating, etc.)

10. Car Door Open/Closed, Air-conditioner ON/OFF Detection

11. GPS & LBS(location based service) tracking

12. LED Advertising Screen, GPS Navigation, Temperature sensor, RFID

Reader (optional)





Specifications:



Dimension

137*75*29mm

Weight

750g

Working  Voltage

DC:6.3~40V

Input Fuse

2A

Working Temperature

100mA

Operating Temperature

-40~85°C

Humidity

10% to 90%

CPU

TI:MSP430F5419(100MHz)

GSM Module

GSM Module: Simcom

Band:850/900/1800/1900MHz

Tally with: GSM phase 2/2+

-Class 4 (2W @ 850/900MHz)

-Class 1 (1W @ 1800/1900MHz)

Max RF Output: 33.0dBm±2dBm

Dynamic Input Range: -15 ~ -102dBm

Receiving delicacy: Class RBER≤2%(-102dBm)

Frequency Stability: > 2.5ppm

Max Frequency Deviation: ±0.1ppm

RMS Deviation: ≤5deg

GPS Module

GPS chip set: SiRF Star III

Frequency: L1, 1575.42 MHz

Number of Channel: 20

Sensitivity: To-159Bm Tracking, Superior Urban Canyon

Performance

Reacquisition: 0.1 sec, average

Hot boot: 2 sec., average

Warm boot: 38 sec., average

Cold boot: 44 sec., average

Altitude limit: 18000 m

Velocity limit: 515 m/s

Input I/O

7 I/O input Port

1 port use to check the engine ( ACC check)

1 port use to SOS

1 A/D Input port( Fuel monitoring)

1 Output port ( Car engine control )

3 Extend ports ( Input/Output control by software)

RS232

Two

One is connect to the camera (130M pixel)

Other is extending ports, can connect to GPS

Navigator/RFID Reader/LED Screen.

Microphone

3.5mm Single track

Earphone

3.5mm

Current

Not working Current 16mA

working Current:60~150mA

Current of opening infrared of Camera at

night :100~200mA

Charging current: Max<500mA

Battery

Lithium battery :350mA( working time is about 3.5 hours)

Accessories

Device, Connecting cable ,GPS antenna ,GSM antenna,

Engine controller, SOS button, Microphone, Camera,

5inch touch screen navigator





Optional features:



1. Add flash memory

2. Support vibration sensor

3. Add temperature sensor

4. Support TCP/UDP protocol

5. Support fuel anti-theft alert

6. Support 2 fuel sensors at most

7. Support fuel theft early sound/light warning

8. Support 2 cameras at most

9. Support RFID Reader

10. Support customized firmware





Main features:



1. Positioning and tracking:

 through the online positioning platform or the cell phone to locate at any time,

and get the working status. You can choose the positioning Platform by yourself



2. Over Speed Alert:

When the target moves exceeding a preset speed the unit will send an SMS+Geo-info to the

authorized numbers



3. Geo-Fence Mode:

Set up a geo fence for the unit to restrict its movements within a district.

The unit will send the message to the authorized numbers when it breaches the district



4. Auto track:

 Auto track by SMS or online positioning platform; Mileage statistics; ACC checking



5. Real time Track by Time/Distance Interval:

Auto track by SMS or online positioning platform; Mileage statistics; ACC checking



6. Remote Self Failure Analysis:

Any error happens on the tracker, it can analysis itself and restart.



7. Power cut alert:

When tracker is cut off from the power, the tracker sends alert SMS to user



8. Remote controlling oil and circuit:

You can Cut off or turn on the oil & circuit remotely via SMS or Online whenever you want



9. Fuel Monitoring:

Remote monitoring vehicle fuel (oil, oil spills, oil steals, fuel consumption, etc.)



10. GPS & A-GPS (LBS—location based service):

Using Global Satellite Positioning technology, LBS(Location Based Service) technology

(while it’s can’t location via GPS, the devices will get the location information via LBS)



11. Audio Monitor:

You can ring the GPS unit and simply listen in discreetly.(the GPS unit does not vibrate or ring )



12. SOS Function:

You can press the SOS alarm button to send an alert.

This will give the location to the registered phone numbers in case of an emergency.

The SOS function also allows you to talk into the GPS tracker & make yourself heard

on the receivers end with the mobile cell phone



13. Images transmit:

Take photo by the digital camera, to check what's happened in the vehicles.



14. Led Advertising Screen:

It could display the text messages which were sent from the control center.

15. Touch screen navigation:

insert a SD card with navigation map, TOMTOM/IGO, it will work .





Package:



In box: 1 Tracker Device, 1 Wire, 1 Microphone, 1 GSM Antenna, 1 GPS

Antenna, 1 SOS Button, 1 Relay, 1 camera, 1 5inch touch screen navigator.





Many business benefits include:



1. Offering fellow employees and clients visibility over service delivery vehicles

2. Monitoring driver’s behavior

3. Fuel anti-theft purpose

4. Providing detailed usage reports

5. All types of static and mobile vehicle GPS tracking and security
