GPS Mobile DVR Recorder HDD Storage Remote Monitoring View Local Playback

China GPS Mobile DVR Recorder HDD Storage Remote Monitoring View Local Playback supplier

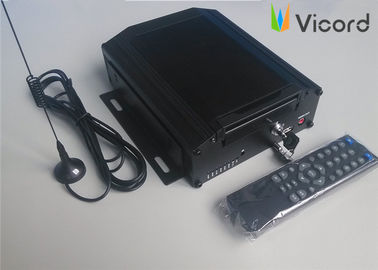

Large Image :  GPS Mobile DVR Recorder HDD Storage Remote Monitoring View Local Playback

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Vicord
Certification: CE, FCC,ROHS
Model Number: MCH8GNN

Payment & Shipping Terms:

Minimum Order Quantity: 200
Delivery Time: 1-4 weeks after get the full payment
Payment Terms: T/T 100% before shipment
Supply Ability: 50000 pcs/per year
Contact Now
Detailed Product Description
Vdieo Standards: PAL(625line,50f/s);NTSC(525line,60f/s) Play Quality: D1/Half-D1/CIF/QCIF
Play Quality: D1/Half-D1/CIF/QCIF Bidrectional Talk: Supported
Record Mode: Manual>alarm>motion Detection>timing Record Storage: HDD,network
Dimension: 193(length)*198(width)86(height)mm Weight: 1.5kg

GPS Mobile DVR Recorder HDD Storage Remote Monitoring View Local Playback





Product Feature

  1. support the large capacity hard disk, maximum 4TB
  2. Compression algorithm ideal:H.264 High Profile compression algorithm,30% decrease of stream due to advanced space-time filtering technology.
  3. Playback quality:support 8ch D1 real-time recording
  4. Main and Sub Stream:Main stream for local storage, ensure image quality;Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem
  5. Working temperature: 0℃-+55℃
  6. Supports Manual Record, Motion Detect and scheduled Record
  7. Wide voltage design, suitable for all kinds of vehicles
  8. Hard disk smoked pull box, compatible with all 2.5 -inch hard disk

FAQ



Q: When 3G has neither report nor video , what should be done first?
A: Press INFO key to enter the system information page, check whether the SIM card exists and view the signal strength as well as dial-up status, whether the antenna is in good contact, and then check the SIM to see whether it is out of traffic, the most basic judgment is to replace the SIM card. If the dial up failed with signal, then check whether the settings of center number and the port are correct. Moreover check whether the device number of the product is already occupied.



Q: 3G signal is intermittent, video is jammed?
A: At present the signal coverage of WCDMA and EVDO is rather wide, however, there are some mountainous districts without signal coverage, and some suburban areas have weak signal due to the local network constraints, then it will be jammed during watching of video, or video cannot be watched at all, the greatest impact of this situation is from the local network; Moreover check whether the frame rate setting of sub-stream is too high, because the video may also occur such situation when the network is poor and frame rate setting is high.



Q: How about when there is no video output from the vehicle host device?
A: 1.Check the host’s turn-on status, if only a blue light on, it means the host is in standby status and has not been started up yet, meanwhile check whether the host’s power cords red & yellow cords are in power supply status or not, if only one cord is supplying power, the device is unable to start up.
2.Check the power supply status of display screen, as well as check whether the display video has been switched to AV status.
3 Check the connecting status between the host’s video output cable and display screen.
4 check whether the lock status of the host’s LOCK, it must be locked before normal starting up.



Q: 3G signal is intermittent, video is jammed?
A: At present the signal coverage of WCDMA and EVDO is rather wide, however, there are some mountainous districts without signal coverage, and some suburban areas have weak signal due to the local network constraints, then it will be jammed during watching of video, or video cannot be watched at all, the greatest impact of this situation is from the local network; Moreover check whether the frame rate setting of sub-stream is too high, because the video may also occur such situation when the network is poor and frame rate setting is high.



Specification





Model

MCH8GNN

system

Main processor

Hi3520D

Operating system

Embedded LINUX operating system

System resources

Simultaneous multi-channel real-time recording, playback, network operation, USB backup

interface

user interface

support 16-bit true color graphical menu interface and mouse operation

preview screen

1/4/8

video

vdieo standards

PAL(625line,50f/s);NTSC(525line,60f/s)

vdieo compression

H.264(Main Profile)

display quality

Monitor:D1

play quality

D1/Half-D1/CIF/QCIF

encode capacity

8ch D1 real-time

decode capacity

1ch D1 real-time

motion detect

Zones: 392(22*18)detection zones per window,multi-level sensitivity

audio

audio compression

G.711A

bidrectional talk

supported

Record

&

playback

record mode

manual>alarm>motion detection>timing

local playback

Any channel playback simultaneously(1-4ch)

search mode

Time/calendar/event/channel search

Storage

&

backup

space occupation

video:CIF 4~5G/ day*channel, D1 8~10G/ day*channel;
 audio:691.2M/ day*channel

record storage

HDD,network

backup mode

Network backup,USB HDD,USB writer,U disk

interface

video input

8ch

video output

1ch RCA (1.0Vp-p,75Ω),1ch for cable

audio input

8ch

audio output

1ch (200-3000mV,5K)

alarm input

4ch(multiplexing vehicle signal)

alarm output

2ch

RJ45 interface

no

RS485, RS232

One RS485,one RS232

USB

One USB

HDD

One SATA port,max.4T

Mobile interface &functions

GPIO signal

Support vehicle name,speed,turn light,vehicle door,brake,Steering Information and other signals input;support vehicle information OSD overlay,storage etc.

GPS

Support



others

support delay boot up/shut down

complement

Exclusive player

Support google map,showing vehicle running track and data.

Platform

Support auto registration,no need of port Mapping,getting rid of 3G access problem.Support google map,showing vehicle running track and data

SDK

Free SDK for second development

others

Power supply

Wide voltage input 6V~36V,15% overvoltage protection,500MS 60V voltage surge

External power supply

Support 8* 12V controllable power supply for external camera,exclusive 12V and 5V output

Power consumption

<10W(HDD without)

Working temperature

0℃-+55℃

Working humudity

10%-90%

Atmospheric pressure

86kpa-106kpa

Dimension

193(length)*198(width)86(height)mm

weight

1.5kg
