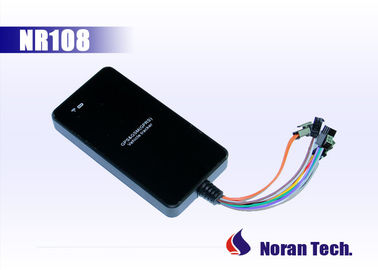

Automotive Motorcycle Realtime Gps Tracking Device For Fleet Management

Automotive Motorcycle Realtime Gps Tracking Device For Fleet Management
Automotive Motorcycle Realtime Gps Tracking Device For Fleet Management

Large Image :  Automotive Motorcycle Realtime Gps Tracking Device For Fleet Management

Product Details:
Place of Origin: CHINA
Brand Name: Noran
Certification: CE
Model Number: NR108
Payment & Shipping Terms:
Minimum Order Quantity: 50
Packaging Details: Gift Package/Compressed Package in Carton
Payment Terms: T/T, Western Union , paypal
Supply Ability: 10000PCS/MONTH
Detailed Product Description
Antenna: Build In SOS Alarm: YES
Network: GPRS / GPS / GSM Software: Free Web Tracking Platform
Fuel Level Monitoring: YES Vehicle: Car Truck Taxi Bus
High Light:

auto gps tracker

,

motorcycle gps tracker theft

Automotive Motorcycle Realtime Gps Tracking Device For Fleet Management





Default Main Features:


1. Real time uploads location information via time/distance interval
2. Real-time Positioning & Tracking
3. SOS emergency Alert & Power-cut Alert
4. Remote Stop Engine
5. Geo-fence Alert & Over Speed Alert
6. Fuel Monitoring
7. Audio Monitoring(listen-in)
8. Special Vehicle Monitoring (dump trucks pouring, mixers rotating, etc.)





Specifications:



Size

108*56*18mm

Working Voltage

DC:6.3~24V

Input Fuse

5A

Working Tem.

-40~85°C

Humidity

10% to 90%

CPU

TI:MSP430F5419(100MHz)

GPS&GSM Antennas

Built in

GSM Module



GSM Module:SIM900

Band:850/900/1800/1900MHz,

Tally with: GSM phase 2/2+

-Class 4 (2W @ 850/900MHz)

-Class 1 (1W @ 1800/1900MHz)

Max RF Output: 33.0dBm±2dBm

Dynamic Input Range: -15 ~ -102dBm

Receiving delicacy: Class  RBER≤2%(-102dBm)

Frequency Stability: > 2.5ppm

Max Frequency Deviation: ±0.1ppm

RMS Deviation:  ≤5deg



GPS Module





GPS chip set: SiRF Star III or IV

Frequency: L1, 1575.42 MHz

Number of Channel: 20

Sensitivity: To-159Bm Tracking, Superior Urban Canyon Performance

Reacquisition: 0.1 sec, average

Hot boot: 2 sec., average

Warm boot: 38 sec., average

Cold boot: 44 sec., average

Altitude limit: 18000 m

Velocity limit: 515 m/s



Input I/O



7 I/O input Port:

1 port use to check the engine ( ACC check)

1 port use to SOS

1 Analog Input port( Fuel monitoring)

1 Output port ( Car engine control )

3 Extend digital ports ( Input/ Output control by software)



Microphone

Built in

Current



Standby Current 16mA

working Current:60~150mA

Current of opening infrared of Camera at night  :100~200mA

Charging current: Max<500mA



Battery

Lithium battery :350mA( working time is about 3.5 hours)

Accessories

Device, Connecting cable, Relay, SOS button







Main Features:



      1. Positioning and tracking:

       through the online positioning platform or the cell phone to locate at any time,

       and get the working status. You can choose the positioning Platform by yourself



2. Geo-fence Mode:

Set up a geo fence for the unit to restrict its movements within a district.

The unit will send the message to the authorized numbers when it breaches the district



3. Over Speed Alert:

When the target moves exceeding a preset speed the unit will send an SMS to the authorized numbers



4. Auto track:

Auto track by SMS or online positioning platform; Mileage statistics; ACC checking



5. Fuel Monitoring:

Monitor vehicle fuel remotely



6. SOS Function:

You can press the SOS alarm button to send an alert.

This will give the location to the registered phone numbers in case of an emergency.

The SOS function also allows you to talk into the GPS tracker & make yourself heard on

the receivers end with the mobile cell phone



7. Audio Monitoring:

You can ring the GPS unit and simply listen in discreetly (the GPS unit does not vibrate or ring)

8. Cutting off power and alert:

When tracker is cut off from power, the tracker sends alert SMS to user



9. Remote controlling oil and circuit:

You can Cut off or turn on the oil & circuit remotely via SMS or Online whenever you want
