Auto Waterproof GPS Tracking Systems
1.GPS device technical parameters:
2.Working voltage:8-36V/DC (limit voltage 100V)
3.Resistance to power source reverse connect: ≥80V
4.Working current:average 110mA @ DC 12V;power save status＜45mA @ DC 12V
Private car, Taxi, Commercial vehicle and etc.
Adopt industrial grade GSM communication module group, 50 channels positioning, Support 8-36V wide Voltage, High voltage protection, Small volume, easy to install, Steady Capability , Resistance to power source reverse connect, resistance to static , electromagnetism compatible, vibration endurable.

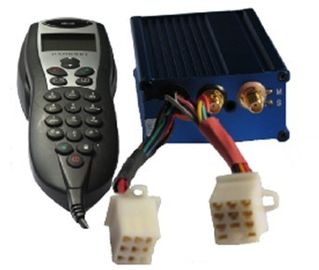

GPS Main Device, GPS Antenna, GSM Antenna, Handset, Cables, Panic Button, Lock Vehicle relay, Monitor Mic.
GPS device technical parameters:
Working voltage:8-36V/DC (limit voltage 100V)
Resistance to power source reverse connect: ≥80V
Working current:average 110mA @ DC 12V;power save status＜45mA @ DC 12V
Power:Working status 1.2w;sleeping mode 0.7w
Exterior dimension:114×62.1×33.2mm (L×W×H) (aluminium alloy crust)
Weight:0.32kg (main device net weight)
Support frequency band: 850MHz/900MHz/1800MHz/1900MHz
Working temperature:-20 to +60 centidegree
Inside battery charge time:3-4 Hours
Inside battery working time:3-5 Hours
Handset technical parameters:
Working voltage: 5V/DC
Working current: 86mA
Dot matrix: 128×64
Remote control, parameters setting:surveillance center can control the vehicle remotely and alter the relevant parameters which GPS device set.
Positioning (Global satellite positioning, Target positioning):it can real time know the location of the target if installed this device.
Target tracking: surveillance center can real time track the target.
Supplementary report: when target out of the area where haven't GSM signal, it will send the data to surveillance center automatically.
SOS, mute listening:user can press SOS if they need help, then there is an alarm will be send immediately, surveillance center can listen in the condition inside vehicle it it was authorized, and help user to solve the event.
Remove alarm:when there is an alarm, surveillance center can remove alarm after the event was solved.
GPS open circuit alarm:when GPS antenna was damaged unwittingly or by act of man, it will send a GPS open circuit alarm to surveillance center.
Overspeed alarm:when the speed of vehicle exceed the value that manager set, it will send a overspeed alarm to surveillance center.
Alarm of Off-course:when vehicle deviate the travel route manager set, GPS device will generate an alarm automatically and send to surveillance center.
Main power lost alarm, low battery cell voltage alarm:when vehicle battery can not supply power normally due to damaged or loss (voltage less than 0.7V), the backup battery inside the device will supply power for GPS device, and send an alarm to surveillance center to ask for solve the problem.
Enter limit area alarm:when vehicle enter into the prohibited area manager set, GPS device will send this alarm to surveillance center.
Out-of-range alarm:when vehicle left the driving area manager set, GPS device will send this alarm to surveillance center.
Stolen alarm:when vehicle be stolen, GPS device detect the signal from the anti-theft alarm system which installed in vehicle, it will send stolen alarm immediately.
Replay history data:surveillance center can view and play the history track of vehicle.
Cut fuel/circuit:manager can ask surveillance center to cut vehicle's fuel/circuit to stop the vehicle surveillance center when vehicle be stolen.
Restore fuel/circuit:after fuel/circuit was cut, manager can ask surveillance center to restore fuel/circuit, then vehicle can be start and drive normally.
Timing registry:GPS terminal connect GPRS network periodically to ensure data transmission smoothly.
GPRS ＋ SMS:GPS device support GPRS and GSM data transmission at the same time, it can ensure the positioning data do not be lost.
Manual set function:installation personnel or mainteinance personnel can set relevant GPS device's parameter via handset to reduce the communication cost.
GPS device local/remote update:when need to change GPS device's functions, it can be update via RS232 serial port, no need dismantle the main device and parts.
Remote debugging: if GPS devices have fault, it can be analyse and processing remotely to avoid the trouble of long-distance trip.
Intelligent supply power and charge:GPS device can connect with vehicel battery's 12V or 24V voltage directly, and identify vehicle battery voltage automatically. If it is undervoltaget then switch to use inside backup battery automatically, and automatic charge the backup battery when external power source get right.
vehicle (ACC) defense function:
automatic defense:it will enter into defence status automatically after vehicle was in flameout.
manual defense:use display screen or handset to make it enter into defense status after vehicle was in flameout.
Remove defence with vehicle (ACC):after vehicle enter into defense status, use display screen or handset to remove defense.
Illegal startup alarm:after vehicle enter into defense status, startup vehicle directly and have not remove defence, surveillance center will received an illegal startup alarm.
Safety lock:user can lock or unlock display screen to avoid stranger use it.
hands-free talk :it can use hands-free talk if there is incoming call, user can use external speaker to talk.
automatic answer:at the time of vehicle is igniting, if there is a incoming call, it will put through the call automatically. Driver can answer the call use hands-free mode when he was in driving.
use handset to make phone call: for secret phone call, you can use handset to talk to protect individual privacy.
caller ID:it will display incoming phone number when there is incoming call (SIM card need have the feature of caller ID).
call forwarding:if someone call car phone, it will be automatic forward to another phone number.
incoming/outgoing call restrictions: incoming/outgoing call can be restricted.
phone number length restrictions: phone number length can be restricted.
