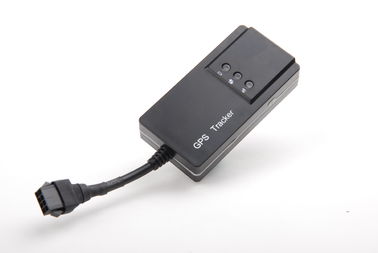

Smart Mini Real Time GPS Car Tracker 7V - 70V Anti-theft For Vehicles Tracking

Smart Mini Real Time GPS Car Tracker 7V - 70V Anti-theft For Vehicles Tracking
Smart Mini Real Time GPS Car Tracker 7V - 70V Anti-theft For Vehicles Tracking

Large Image :  Smart Mini Real Time GPS Car Tracker 7V - 70V Anti-theft For Vehicles Tracking

Product Details:
Place of Origin: Guangdong China
Brand Name: Roadragon
Certification: CE, FCC, IP65
Model Number: MT008
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: 20$-30$
Packaging Details: Cardboard
Delivery Time: 5 working days
Payment Terms: Paypal TT WestUnion
Supply Ability: 20K/Month
Detailed Product Description
High Light:

gps car tracking system

,

real time gps tracking devices

Smart Mini Real Time GPS Car Tracker 7V - 70V Anti-theft For Vehicles Tracking







When turn on the tracker's alarm, if the device was vibrated continuous, it will trigger the stolen alarm. The device will send alarm message and latitude and longitude to the service platform; and send alarm message and latitude and longitude to the center number by SMS and call the center number. If service center number doesn’t answer, the device will call six times.





Brief introductions



This is a mini GPS tracker with quad frequency,9-70V DC,SOS which can be used on cars,trucks,motorcycles,taxis.bus and some other vehicles.



Specifications





Network GSM: 850/900/1800/1900MHz
GPRS Class 12, TCP/IP
Voltage 9-70V DC

Current



≈22mA(12vDC)

≈12mA(24vDC)

GPS fixed time

Cold start 30sec(open sky)

Warm start 29sec(open sky)

Hot start 5sec (open sky)

GPS fixed precision 10m (2D RM)
Temperature -20℃ ~ +70℃
Humidity 5% ~ 95% RH
Dimension 90.0(L)x45.0(W) x13.5(H)mm
Weight

80g





3. Installation comands



  1. Prepare
    1. SIM Card: Please use a GSM SIM card.
    2. Before insert the SIM card, please make sure to turn off the device.
    3. Please make sure the GPRS can be used, if not, please connect Service Provider.
    4. Please make sure the Caller ID can be used.
    5. Then insert the SIM card.
  2. Installation

Please pay attention to the following matters:

  1. Concealed installation for avoid the thieves damage.
  2. Avoid install together with the RF source, such as reversing radar, alarm and other vehicle communication equipment.
  3. Can use ribbon or wide sponge strength double-faced adhesive stick to fix.
  4. Equipment with GSM antenna and GPS antenna, installation shall ensure that face up (skyward), and above no metal barrier shield, suggest installation position:

Front windshield decorative below the covert,

Front panel (skin for non-metal material) around the shadow

Rear window below decorative



3.3 Relay connection comands



Oil pump cut-off relay connection method:Coil ends connection were white line (85) and the yellow line (86), white line (85) joint car positive (+ 12 v), the yellow line (86) joint device relay control line.

The vehicles on the tubing string attached to oil pump, cut the wire of oil pump positive, the wire of oil pump positive joint the normally closed end of the relay (green line 87 a), the other end joint the relay’s other end (green line 30).

Note: this product with standard for 12V relay. Fit for installation on 12V car battery vehicles.

If the battery of the vehicle is 24Vs battery, need to be choose 24V relay.



LED scintillation state meaning interpretation





LED Scintillation state Meaning

Red

Power LED

Shine 0.1 sec, dim 2 sec Working
Shine 1 sec, dim 2 sec Low power
Always dim Power off or fault

Blue

GPS LED

Shine 0.1 sec, dim 2 sec GPS Fixed
Shine 1 sec, dim 2 sec GPS not Fixed
Always dim Power off or fault

Yellow

GSM LED

Shine 0.1 sec, dim 2 sec GSM ready
Shine 1 sec, dim 2 sec GSM not ready
Always dim Power off or fault
