|Working Voltage:||9V -- 30V DC||Working Current:||100 MA – 250 MA（12V/DC）|
|Weight:||Tracker Weight 0.13kg Total Packet 0.4kg||Working Temperature:||-20℃ -- 75℃|
|GSM Frequency:||850MHz/900MHz/1800MHz/1900 MHz||GPS Module:||SiRF III Solution|
|GSM Chipset:||SIMCOM GSM Chipset||Moisture:||≤ 93%（Non-water Vapor Condensation State）|
|GPS Sensitivity:||-159Db||Receiving Panel Structure:||GPS Module 32-channel|
|Locating Accuracy:||< 5m （95％）||Cold Start Time:||< 48s(in Average）|
|Heat Start Time:||< 10s (in Average）|
Light Weight Real Time GPS Tracking Devices With Power-cut Alarm For City Bus
Detailed Product Description
G-V209 is a GPS/GSM/GPRS based tracking device, specially developed and designed for vehicle real-time tracking and fleet management.
G-V209 has inbuilt GPS (SIRF Ⅲ ) and GSM module (SIMCOM 900) to
obtain accurate position data. This device utilizes its GSM capability to send position data to mobile phone or server based vehicle tracking and fleet management

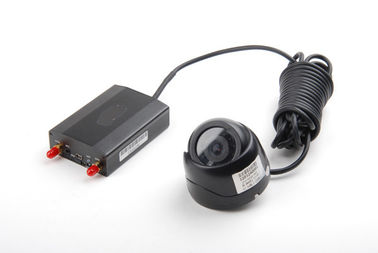

Device have voice input/output port, customer can connect a microphone to
device and hidden it somewhere in the car for listening to the cabin; also can connect a louder speaker same time, to use the device as a telephone.
GPRS TCP/UDP and SMS Communication
A GPS (Optional)
Track on Demand
Track by Time Interval
Upload when Direction Change
GSM Blind A rea Memory
SOS Panic Button
Geo-fencing A larm
Low Battery A larm
Over Speed A larm
Power-cut A larm
Engine Cut (Remote cut fuel / engine)
Fleet dispatching function(via SMS to send and receive command )
1.Working based on existing GSM/GPRS network and GPS satellites You can check latitude and longitude / time / speed by using a mobile phone and then use google earth and other public map software, you can get location information in real time.
6.Support storing data in SD card, the GPS data will be stored into the SD card automatically when there's no GPRS signal.When GPRS signal is normal ,the data can be sent to the server automatically .
7. If the target into the underground parking lot or other GPS blind spots, ,can send last location to the the authorized number
8.Add or change Username and Password and Authorized number.
13.Send a movement alert to the user when it begins to move.
14.Send an overspeed alert to the user when it moves exceed of the restricted speed.
15.Send a low battery alert to the user if the battery is low.
16.Send an alert of theft to the user automatically if the power be cut off or the vehicle be startup illegally.
17.Send SMS to the unit to cut off the vehicle engine and circuit when someone startup the vehicle illegally in remotely.
Logistic /retail/ manufacture/ cloth/ medical /traffic/ food /animal/ book /coal/ asset /ticket /
Vehicle /payment/ anti-counterfeiting/ aero /military/ others
