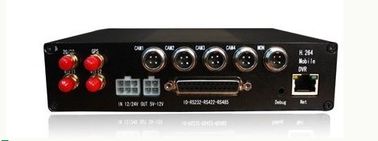

H.264 HDD Hard Disk IP54 3G Mobile DVR Recorders with 1RS485 Port VC-MDR700X
Descriptions
VC-MDR700X Mobile DVR adopt highly integrated H.264 ASIC, its image quality is excellent, in addition to using the hard disk as a video storage medium or it can use SD card as an auxiliary video storage medium to improve the stability of record data. Through the built-in USB port the video data can be backed up quickly.
VC-MDR700X In addition to integrated vehicle status monitor, it can support built-in GPS, 2G/3G modules.
The playback software of MDR700X can not only achieve the synchronous and asynchronous multi-channel playback, the video and GPS also enables synchronization of data such as playback, convenient video analysis.
VC-MDR700X can be widely used in buses, taxis, police cars, law enforcement vehicles, and other various types of vehicles.
|
Key Features |
l H.264 Compression, Record Resolution Up to D1
l Dual Stream for Recording and Network transmit
l Support Hard disk and SD card recording, USB and Network Backup
l Pluggable hard disk 2.5 " HDD tray, with mature vibration reduction technology
l Independent 6 Vehicle status monitor interface, of which one can speed
l 8-32V power input
l Vent-free enclosure design
|
Specifications |
|||
|
Model |
VC-MDR7001 |
VC-MDR7002 |
VC-MDR7004 |
|
Video Input |
1 Ch |
2 Ch |
4Ch |
|
Video Input Parameter |
1.0Vp-p, 75 Ohms, Aviation plug |
||
|
Video Output |
1 Ch |
||
|
Video Output Parameter |
1.0Vp-p, 75 Ohms, Aviation plug |
||
|
Video Compression |
H.264 |
||
|
Preview Resolution |
D1 resolution(PAL:704×576, NTSC:704×480) |
||
|
Dual Stream-Main |
30FPS@D1(NTSC) 25FPS@D1(PAL) |
60FPS@D1(NTSC) 50FPS@D1(PAL) |
120FPS@CIF(NTSC) 100FPS@CIF(PAL) |
|
Dual Stream-Aux |
30FPS@CIF(NTSC) 25FPS@CIF(PAL) |
60FPS@CIF(NTSC) 50FPS@CIF (PAL) |
30FPS@CIF(NTSC) 25FPS@CIF(PAL) |
|
Record Resolution |
D1 |
D1 |
CIF |
|
Dual Stream Network transmission |
Independent 4CIF(HA-01D/02D Only), CIF/QCIF |
||
|
Playback Frame rate |
PAL:1～25 fps , NTSC:1～30 fps |
||
|
Record band rate |
16K～2Madjustable, Customizable (unit:bps) |
||
|
Audio Input |
1Ch |
2Ch |
4Ch |
|
Audio Input Parameter |
2Vp-p Line, 1OK Ohm , Shard the Aviation plug with video input |
||
|
Audio Output |
1Ch |
||
|
Audio Output Parameter |
3Vp-p, 600ohms, Shard the Aviation plug with video output |
||
|
Built-in 2G/3G module |
Optional |
||
|
Built-in GPS Module |
Optional |
||
|
Built-in Wi-Fi Module |
Optional |
||
|
CommunicationPort |
1 Ethernet, 1RS232, 1RS485 |
||
|
MemoryPort |
1 USB2.0, 2 SD |
||
|
Vehicle Status Monitor port |
6, 1 for speed |
||
|
Alarm Input |
4Ch, 5V@10mA |
||
|
Alarm Output |
2Ch, 1A@110V |
||
|
Record mode |
Continuous, Cycle, Schedule, Alarm, Motion detection |
||
|
Video search method |
By Channel, time, record time, storage location |
||
|
Text Overlay |
Yes(plate number, time, Vehicle status) |
||
|
Power On mode |
Schedule, ignition on, delay |
||
|
Power Off mode |
Schedule, delay after ignition off |
||
|
Power Input |
DC8-32V |
||
|
Power Output |
DC12V 2A, 5V 2A |
||
|
Power Consumption |
12W(with out hard disk and communication module) |
||
|
Temperature |
0℃～＋50℃(Customizable) |
||
|
Humidity |
10%～95% |
||
|
Protection Level |
IP54 |
||
|
Dimension |
180mm(W)X 125mm(D)x 48mm(H) |
||
|
Client software viewer |
