240 / 200 fps 1.0-2.2v p-p 8CH H.264 Compression Mobile DVR Recorders for School Bus

240 / 200 fps 1.0-2.2v p-p 8CH H.264 Compression Mobile DVR Recorders for School Bus
240 / 200 fps 1.0-2.2v p-p 8CH H.264 Compression Mobile DVR Recorders for School Bus

Large Image :  240 / 200 fps 1.0-2.2v p-p 8CH H.264 Compression Mobile DVR Recorders for School Bus

Product Details:
Place of Origin: Shenzhen
Brand Name: Haitiang
Certification: CE、ROHS、 FCC、SGS
Detailed Product Description
High Light:

security camera dvr recorder

,

security digital video recorder

,

video surveillance equipment

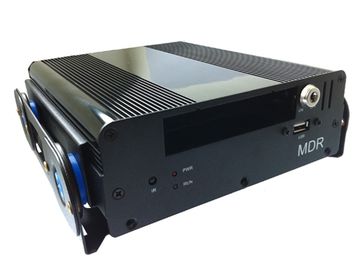

240 / 200 fps 1.0-2.2v p-p 8CH H.264 Compression Mobile DVR Recorders for School Bus

Mobile DVR Recorders for School Bus
GPS , 3G , WIFI Function
Maximum support 1TB hard disk
Embedded Linux system
CE&FCC



8CH H.264 Compression Mobile DVR Recorders for School Bus

With 12V power output for cameras
H.264 Compression
200frames for Pal and 240frames for NTSC
Maximum support 1TB hard disk
This product is made for traffic safety, it is an embedded Linux system DVR with 8 channels. It has high-intelligentization and stability with an embedded processor and operating system, which combines video and audio compressions,GPS,black box,mass storage hard disk. Widely used for security and surveillance in the domain of Mobile,Steamship,Train,etc.



Feature:

·         Embedded Linux system

·         H.264 processors,Double MCU control

·         Chinese/English menu optional



Technical parameter:

Video input: 8channels(PAL), PWL:1.0Vp-p,Impedance:75Ω,Support monochrome/color cameras

Video output: 1channel(PAL),PWL:1.0Vp-p,Impedance:75Ω

Audio input: 8 channels, Linearity PWL:1.0-2.2vp-p , Impedance: 600Ω

Audio output: 1 channel or 8 channel mix out,Linearity PWL:1.0-2.2vp-p , Impedance: 600Ω

Real-time surveillance : PAL: 200 fps , NTSC: 240 fps ,synchronous video/audio

Real-time resolution : 352*288 CIF per channel

Surveillance: 1 picture / 8 pictures

Compression : H.264

Compress Resolution: PAL:200f,NTSC:240f

8channels CIF(PAL:352*288;NTSC:352*240),independent record

Picture quality:pre-set 8 gears,data rate adjustable

Hard disk storage: SATA port,Support 2.5 SATA HDD, 1TB maximum, Drawer-type design.

Record mode: sensor,programmed,motion;

support 8channels video/8channels audio record in sync

Search mode : time ,date and events;

Support 8channels video/8channel audio search/play in sync

Support 1channel amplifying playback and 8channels in sync

Back-up:Support USB Backup.

Peripheral Component Interconnect:1 USB HOST port for recording data back-up.

1 SATA HDD port

1 infrared remote port

Power input: DC8-48V,Power switch,Over-current, over-voltage protection, time-lapse turn off function.

Power output:DC12V for camera, pickup or velocity sensor

Anti-vibration design:double Anti-vibration

Work Temp:-20degree to +60degree

Work Humidity:10%-95%

Size:198(W)x170(L)x50(H)mm
