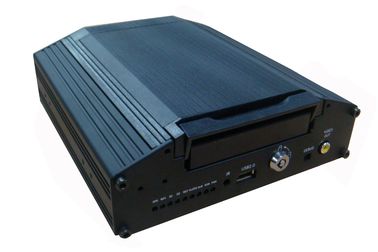

H.264 HDD Mobile DVR Recorder 4 Channel D1 CIF With High Compression Ratio

H.264 HDD Mobile DVR Recorder 4 Channel D1 CIF With High Compression Ratio
H.264 HDD Mobile DVR Recorder 4 Channel D1 CIF With High Compression Ratio

Large Image :  H.264 HDD Mobile DVR Recorder 4 Channel D1 CIF With High Compression Ratio

Product Details:
Place of Origin: China
Brand Name: Fortunemount
Certification: CE, ROHS, FCC
Model Number: MDVR-D1104
Payment & Shipping Terms:
Minimum Order Quantity: 200
Delivery Time: 2 weeks based on sales forecast and 1 month without any sales forecast
Payment Terms: T/T ; 30% prepayment and balance to be paid before shipment
Supply Ability: 50 000 monthly
Detailed Product Description
High Light:

vehicle camera dvr

,

car video camera



H.264 HDD Mobile DVR Recorder 4 Channel D1 CIF With High Compression Ratio





Features:

· Using H.264 Compression algorithm, high compression ratio, image more clearly;

· With 8---36 V wide voltage design, for all kinds of automobiles;

· Support one D1 and three CIF realtime recording;

· Maximum support 1T SATA harddisk storage;

·Using special file management mechanism, it can encrypt the data, and effectively protect data security;

·Using particular error scan technology of the hard disk, it can ensure the continuity of recording, and also prolong the hard disk life;

·Support to overlay some vehicle informations, such as the stops information, speed, brake signal, and door open or closed signal.

Specification:


   Model MDVR-D1104

Project

Device parameter

Performance

System

Processor

Hi3512

OS

Embedded Linux OS

Operating language

Simplified/En/Traditional

Operator

interface

GUI, support mouse

Safety management

User password, Admin password in two layer management system

Video

Video standard

PAL(625 lines,50 scenes/sec);NTSC(525lines,60 scenes/sec)

Compression

H.264(Main Profile)

Live view quality

D1

Playback quality

CIF/D1

Encoding capacity

1D1+3CIF realtime; 4CIF realtime

Decoding capacity

1D1 realtime; 4CIF realtime

Input

4 channel composite video input

Output

2 channel composite video output

Display

Single picture,4 pictures; alarm screen automatic switch

Audio

Compression

ADPCM

Input

4 channel audio input

Output

1 channel audio output

Recording mode

Video and audio synchronously recording

Recording & playback

Recording type

Manual,Schedule,Alarm,Circle recording

Video bitrate

64Kbps~1.5Mbps

Audio bitrate

8KB/s

Storage medium

1 2.5’ SATA harddisk

Recording file search type

According to channel , time, video types

Playback

Playback by files; 4 channels playback

Startup/

Shutdown

Startup mode

ACC, Schedule

Shutdown mode

ACC delayed shutdown.,Schedule shutdown,hard disk lock off shutdown

Software updating

Update mode

Manual,automatic updating when power on

Update method

USB interface

Interface

Video input

4 channels aviation head interface

Video output

1 channel aviation head interface;1 channel RCA interface

Audio input

4 channels aviation head interface

Audio output

1channel aviation head interface

USB interface

1 USB 2.0; 1 USB1.1(external)

Hard disk interface

1 SATA interface(use USB2.0 interface to convert)

Mouse

1(USB1.1)

Ignition Signal

1

Alarm input

4

RS485 port

1

RS232 port

1

IR port

1

Auxiliary software

PC playback software

Playback the recording files on PC, and analyze all informations that overlayed in the file, such as IO signal, GPS info.

Others

Power input

DC: 8V~36V

Power output

+12V@2A; +5V@2A

Work temperature

-20 --- 60℃

Power consumption

Standby: 3.6W

fully loaded: 32W

Size

201*159*67(mm)
