Network HDD Storage Bus Mobile DVR Recorder Anti-vibration 4 CH

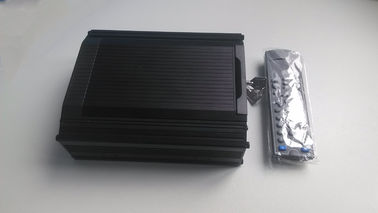

Large Image : Network HDD Storage Bus Mobile DVR Recorder Anti-vibration 4 CH

Product Details:

Place of Origin:	China
Brand Name:	Vicord
Certification:	CE,ROHS, FCC
Model Number:	MCH4N3N

Payment & Shipping Terms:

Minimum Order Quantity:	200pcs
Price:	Negotiation
Delivery Time:	1-4 weeks after get the full payment
Payment Terms:	T/T 100% before shipment
Supply Ability:	50000 Pcs/Year

Contact Now

Detailed Product Description

Backup Mode:	Network Backup,USB HDD,USB Writer,U Disk	Local Playback:	Any Channel Playback Simultaneously（1-4ch）
Video Standards:	PAL/NTSC	Working Temperature:	0℃-＋55℃
Dimension:	193（length）*198（width）86（height）mm	Weight:	1.5kg
High Light:	mobile dvr recorder , car mobile dvr

Network HDD Storage Bus Mobile DVR Recorder Anti-vibration 4 CH

Application:

Logistics vehicles,escort vehicles, taxi,The school bus,Cargo transport vehicle,Mining vehicle,Construction vehicle,Police vehicles,Medical vehicles, bus,Family car. It can also be used in farm, construction site, vacation spot to monitor the around environment if nobody nearby and so on.

Feature:

Transport fast, h. 264 compression format, have higher data compression ratio, transmission faster
Airframe adopt high-end aluminum alloy, heat faster, can avoid work long time in high temperature environment, prevent aging
Unique design with lock to protect from illegal accessing
Supports real-time remote monitoring via 3G network
4 channel
support 1*HDD Storage;( HDD maximum 4T)
variety of video mode, meet the needs of different customers
Wide voltage design, suitable for all kinds of vehicles
Hard disk smoked pull box, compatible with all 2.5 -inch hard disk
Differentiation: Boot screen free replacement, more than twenty languages, over 10 sets of GUI interface, ten kinds of remote control, available in dozens of button panel, which make our products different from others.
Others:Perfect circuit protection, unique triple watchdog function, ensure that the equipment never crashes;With unique black box technology, the whole process can be monitored, which greatly reduces maintenance costs.

Specifications:

	Model	MCH4N3N
system	Main processor	Hi3520D
	Operating system	Embedded LINUX operating system
	System resources	Simultaneous multi-channel real-time recording, playback, network operation, USB backup
interface	user interface	support 16-bit true color graphical menu interface and mouse operation
interface	preview screen	1/4
video	video standards	PAL(625line,50f/s)；NTSC(525line,60f/s)
	video compression	H.264(Main Profile)
	display quality	Monitor:D1
	play quality	960H/D1/Half-D1/CIF/QCIF
	encode capacity	4ch 960H real-time
	decode capacity	1ch 960H real-time
	motion detect	Zones: 392(22*18)detection zones per window,multi-level sensitivity
audio	audio compression	G.711A
audio	bidrectional talk	supported
Record & playback	record mode	manual>alarm>motion detection>timing
	local playback	Any channel playback simultaneously(1-4ch)
	search mode	Time/calendar/event/channel search
Storage & backup	space occupation	video:CIF 4~5G/ daychannel, D1 8~10G/ daychannel； audio:691.2M/ day*channel
	record storage	HDD,network
	backup mode	Network backup,USB HDD,USB writer,U disk
interface	video input	4ch
	video output	1ch RCA (1.0Vp-p,75Ω),1ch for cable
	audio input	4ch
	audio output	1ch (200-3000mV,5K)
	alarm input	4ch(multiplexing vehicle signal)
	alarm output	2ch
	RJ45 interface	no
	RS485, RS232	One RS485,one RS232
	USB	One USB
	HDD	One SATA port,max.4T
Mobile interface &functions	GPIO signal	Support vehicle name,speed,turn light,vehicle door,brake,Steering Information and other signals input；support vehicle information OSD overlay,storage etc.
	GPS	Not Support
	WIFI module	Not Support
	3G module	Support( support EVDO & WCDMA & TD-SCDMA)
	G-Sensor (optional)	Not supported
	others	support delay boot up/shut down
complement	Exclusive player	Support google map,showing vehicle running track and data.
	Platform	Support auto registration,no need of port Mapping,getting rid of 3G access problem.Support google map,showing vehicle running track and data
	SDK	Free SDK for second development
others	Power supply	Wide voltage input 6V~36V,15% overvoltage protection,500MS 60V voltage surge
	External power supply	Support 8* 12V controllable power supply for external camera,exclusive 12V and 5V output
	Power consumption	<10W(HDD without)
	Working temperature	0℃-＋55℃
	Working humudity	10%－90%
	Atmospheric pressure	86kpa－106kpa
	Dimension	193(length)*198(width)86(height)mm
	weight	1.5kg
