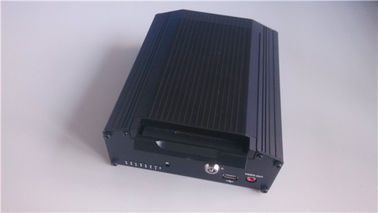

HD 4 Channel Mobile DVR Recorder Support Network Service Bidrectional Talk Google Map

Large Image : HD 4 Channel Mobile DVR Recorder Support Network Service Bidrectional Talk Google Map

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Vicord
Certification:	CE, FCC
Model Number:	MCH4GNW

Payment & Shipping Terms:

Minimum Order Quantity:	200
Delivery Time:	1-4 weeks after get the full payment
Payment Terms:	T/T 100% before shipment
Supply Ability:	50000 pcs/per year

Contact Now

Detailed Product Description

Main Processor:	Hi3520D	Vdieo Standards:	PAL（625line，50f/s）；NTSC（525line，60f/s）
Play Quality:	960H/D1/Half-D1/CIF/QCIF	Encode Capacity:	4ch 960H Real-time
Audio Compression:	G.711A	Record Storage:	HDD,network
WIFI、GPS Module:	Support	Power Consumption:	Less Than 10W（HDD Without)
High Light:	mobile dvr for vehicles , hdd mobile dvr

HD TV Output Mobile DVR Recorder Support Network Service Bidrectional Talk Google Map

Application:

Logistics vehicles,escort vehicles, taxi,The school bus,Cargo transport vehicle,Mining vehicle,Construction vehicle,Police vehicles,Medical vehicles.

Product Features:

H.264 High Profile compression algorithm,30% decrease of stream due to advanced space-time filtering technology.
support 4ch D1,4ch 960H,8ch D1 real-time recording
Main and Sub Stream:Main stream for local storage, ensure image quality;Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem.
Support various mobile monitoring(iPhone,Windows Mobile,BlackBerry,Symbian,Android)
upport TV output,taking the lead in HD resolution technology.
Anti-shock design hard disk, hard disk protection performance better
To support the large capacity hard disk, maximum 2TB
Multiple language options, covers almost all main languages all over the world
Supports Mouse & IR remote control for easy operation
Supports Manual Record, Motion Detect and scheduled Record

SPECIFICATIONS

system	Main processor	Hi3520D
	Operating system	Embedded LINUX operating system
	System resources	Simultaneous multi-channel real-time recording, playback, network operation, USB backup
interface	user interface	support 16-bit true color graphical menu interface and mouse operation
interface	preview screen	1/4
video	vdieo standards	PAL(625line,50f/s)；NTSC(525line,60f/s)
	vdieo compression	H.264(Main Profile)
	display quality	Monitor:D1
	play quality	960H/D1/Half-D1/CIF/QCIF
	encode capacity	4ch 960H real-time
	decode capacity	1ch 960H real-time
	motion detect	Zones: 392(22*18)detection zones per window,multi-level sensitivity
audio	audio compression	G.711A
audio	bidrectional talk	supported
Record & playback	record mode	manual>alarm>motion detection>timing
	local playback	Any channel playback simultaneously(1-4ch)
	search mode	Time/calendar/event/channel search
Storage & backup	space occupation	video:CIF 4~5G/ daychannel, D1 8~10G/ daychannel； audio:691.2M/ day*channel
	record storage	HDD,network
	backup mode	Network backup,USB HDD,USB writer,U disk
interface	video input	4ch
	video output	1ch RCA (1.0Vp-p,75Ω),1ch for cable
	audio input	4ch
	audio output	1ch (200-3000mV,5K)
	alarm input	4ch(multiplexing vehicle signal)
	alarm output	2ch
	RJ45 interface	no
	RS485, RS232	One RS485,one RS232
	USB	One USB
	HDD	One SATA port,max.4T
Mobile interface &functions	GPIO signal	Support vehicle name,speed,turn light,vehicle door,brake,Steering Information and other signals input；support vehicle information OSD overlay,storage etc.
	WIFI module	Support
	3G module	Support( support EVDO & WCDMA & TD-SCDMA)
	G-Sensor (optional)	Not supported
	others	support delay boot up/shut down
complement	Exclusive player	Support google map,showing vehicle running track and data.
	Platform	Support auto registration,no need of port Mapping,getting rid of 3G access problem.Support google map,showing vehicle running track and data
	SDK	Free SDK for second development
others	Power supply	Wide voltage input 6V~36V,15% overvoltage protection,500MS 60V voltage surge
	External power supply	Support 8* 12V controllable power supply for external camera,exclusive 12V and 5V output
	Power consumption	<10W(HDD without)
	Working temperature	0℃-＋55℃
	Working humudity	10%－90%
	Atmospheric pressure	86kpa－106kpa
	Dimension	193X198X86mm
	weight	1.5kg
