High Definition H.264 HDD Mobile DVR Recorder , Car DVR with Wifi Embedded LINUX

China High Definition H.264 HDD Mobile DVR Recorder , Car DVR with Wifi Embedded LINUX supplier

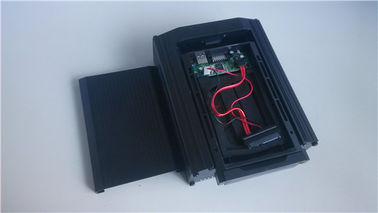

Large Image :  High Definition H.264 HDD Mobile DVR Recorder , Car DVR with Wifi Embedded LINUX

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Vicord
Certification: CE, FCC
Model Number: MCH8N3W

Payment & Shipping Terms:

Minimum Order Quantity: 200
Delivery Time: 1-4 weeks after get the full payment
Payment Terms: T/T 100% before shipment
Supply Ability: 50000 pcs/per year
Contact Now
Detailed Product Description
Vdieo Compression: H.264(Main Profile) Play Quality: D1/Half-D1/CIF/QCIF
Audio Compression: G.711A Local Playback: Any Channel Playback Simultaneously(1-4ch)
RS485, RS232: One RS485、one RS232 GPS: Support

High Definition H.264 HDD Mobile DVR Recorder , Car DVR with Wifi Embedded LINUX​



Advantages:

  1. Variety of video mode, meet the needs of different customers
  2. Wide voltage design, suitable for all kinds of vehicles
  3. Mini fuselage
  4. Easy installation, simple operation
  5. Haisi Hi3520D main chip, low power consumption, high temperature resistance, good stability



Product Features:

  1. Anti-shock design hard disk, hard disk protection performance better
  2. To support the large capacity hard disk, maximum 2TB
  3. Multiple language options, covers almost all main languages all over the world
  4. Supports Mouse & IR remote control for easy operation
  5. Supports Manual Record, Motion Detect and scheduled Record
  6. Can work with power supply ranging from DC6V to DC36V
  7. Unique design with lock to protect from illegal accessing
  8. Video recording mode: Auto recording, alarm recording, timed recording, manual recording
  9. similar to Windows operating style, easy to get started with powerful mouse right-click function

SPECIFICATIONS



system

Main processor

Hi3520D

Operating system

Embedded LINUX operating system

System resources

Simultaneous multi-channel real-time recording, playback, network operation, USB backup

interface

user interface

support 16-bit true color graphical menu interface and mouse operation

preview screen

1/4/8

video

Video

 standards

PAL(625line,50f/s);NTSC(525line,60f/s)

Video

compression

H.264(Main Profile)

display quality

Monitor:D1

play quality

D1/Half-D1/CIF/QCIF

encode capacity

8ch D1 real-time

decode capacity

1ch D1 real-time

motion detect

Zones: 392(22*18)detection zones per window,multi-level sensitivity

audio

audio compression

G.711A

bidrectional talk

supported

Record

&

playback

record mode

manual>alarm>motion detection>timing

local playback

Any channel playback simultaneously(1-4ch)

search mode

Time/calendar/event/channel search

Storage

&

backup

space occupation

video:CIF 4~5G/ day*channel, D1 8~10G/ day*channel;
 audio:691.2M/ day*channel

record storage

HDD,network

backup mode

Network backup,USB HDD,USB writer,U disk

interface

video input

8ch

video output

1ch RCA (1.0Vp-p,75Ω),1ch for cable

audio input

8ch

audio output

1ch (200-3000mV,5K)

alarm input

4ch(multiplexing vehicle signal)

alarm output

2ch

RJ45 interface

no

RS485, RS232

One RS485,one RS232

USB

One USB

HDD

One SATA port,max.4T

Mobile interface &functions

GPIO signal

Support vehicle name,speed,turn light,vehicle door,brake,Steering Information and other signals input;support vehicle information OSD overlay,storage etc.

GPS

Support

WIFI module

Support

3G module

Support(Support EVDO,WCDMA,TD-SCDMA)

G-Sensor

(optional)

Not supported



others

support delay boot up/shut down

complement

Exclusive player

Support google map,showing vehicle running track and data.

Platform

Support auto registration,no need of port Mapping,getting rid of 3G access problem.Support google map,showing vehicle running track and data

SDK

Free SDK for second development

others

Power supply

Wide voltage input 6V~36V,15% overvoltage protection,500MS 60V voltage surge

External power supply

Support 8* 12V controllable power supply for external camera,exclusive 12V and 5V output

Power consumption

<10W(HDD without)

Working temperature

0℃-+55℃

Working humudity

10%-90%

Atmospheric pressure

86kpa-106kpa

Dimension

193(length)*198(width)86(height)mm

weight

1.5kg
