4ch 960H HDD Mobile DVR Recorder With H.264 Network Backup Local Playback , automobile dvr

China 4ch 960H HDD Mobile DVR Recorder With H.264 Network Backup Local Playback , automobile dvr supplier
4ch 960H HDD Mobile DVR Recorder With H.264 Network Backup Local Playback , automobile dvr supplier 4ch 960H HDD Mobile DVR Recorder With H.264 Network Backup Local Playback , automobile dvr supplier

Large Image :  4ch 960H HDD Mobile DVR Recorder With H.264 Network Backup Local Playback , automobile dvr

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Vicord
Certification: CE, FCC
Model Number: MCH4NNN

Payment & Shipping Terms:

Minimum Order Quantity: 200
Delivery Time: 1-4 weeks after get the full payment
Payment Terms: T/T 100% before shipment
Supply Ability: 50000 pcs/per year
Contact Now
Detailed Product Description
Main Processor: Hi3520D Vdieo Compression: H.264(Main Profile)
Bidrectional Talk: Support Record Storage: HDD,network
Backup Mode: Network Backup, HDD,U Disk USB: Support One USB

4ch 960H HDD Storage Mobile DVR Recorder With H.264 Network Backup Local Playback


Application:



       Mainly in the bus, taxi, bus, transportation, mining vehicles, engineering vehicles, traffic, police, medical car, bus used on these occasions, improve security and safeguard the personal safety.
      The car in addition to the driver, there will be the passenger, in the protection of its own security, at the same time, we are also responsible for the safety of others.So on the vehicle safety of this product, and time will guarantee your safety, make you relaxed driving, Home safely.



Product Features:

  • Compression algorithm ideal:H.264 High Profile compression algorithm,30% decrease of stream due to advanced space-time filtering technology.
  • Playback quality:support 4ch D1,4ch 960H,8ch D1 real-time recording
  • Main and Sub Stream:Main stream for local storage, ensure image quality;Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem.
  • Mobite monitor: Support various mobile monitoring(iPhone,Windows Mobile,BlackBerry,Symbian,Android)
  • Display:support TV output,taking the lead in HD resolution technology.
  • Operation interface:similar to Windows operating style, easy to get started with powerful mouse right-click function.
  • Network:Powerful network services (support DAS,DHCP,PPPOE,FTP,DNS,DDNS,NTP,UPNP,EMAIL, IP permissions, IP searches, Alarm Center, etc.) and perfect support (WEB, Client, SDK), easy to achieve interoperability.
  • Browsers:Support multiple web browsers (ie,chrome,firefox, safari)
  • Remote Access:With its own domain name service functions (ARSP), and one key to remote monitoring,monitoring becomes easy and enjoyable. 3322 (Greek network), dyndns, oray (peanut shells), myq-see and other Domain Name Services are also provided.
  •  4 channel Video Input
  • support 1*HDD Storage;( HDD maximum 2T)



SPECIFICATIONS



system

Main processor

Hi3520D

Operating system

Embedded LINUX operating system

System resources

Simultaneous multi-channel real-time recording, playback, network operation, USB backup

interface

user interface

support 16-bit true color graphical menu interface and mouse operation

preview screen

1/4

video

vdieo standards

PAL(625line,50f/s);NTSC(525line,60f/s)

vdieo compression

H.264(Main Profile)

display quality

Monitor:D1

play quality

960H/D1/Half-D1/CIF/QCIF

encode capacity

4ch 960H real-time

decode capacity

1ch 960H real-time

motion detect

Zones: 392(22*18)detection zones per window,multi-level sensitivity

audio

audio compression

G.711A

bidrectional talk

supported

Record

&

playback

record mode

manual>alarm>motion detection>timing

local playback

Any channel playback simultaneously(1-4ch)

search mode

Time/calendar/event/channel search

Storage

&

backup

space occupation

video:CIF 4~5G/ day*channel, D1 8~10G/ day*channel;
 audio:691.2M/ day*channel

record storage

HDD,network

backup mode

Network backup,USB HDD,USB writer,U disk

interface

video input

4ch

video output

1ch RCA (1.0Vp-p,75Ω),1ch for cable

audio input

4ch

audio output

1ch (200-3000mV,5K)

alarm input

4ch(multiplexing vehicle signal)

alarm output

2ch

RJ45 interface

no

RS485, RS232

One RS485,one RS232

USB

One USB

HDD

One SATA port,max.4T

Mobile interface &functions

GPIO signal

Support vehicle name,speed,turn light,vehicle door,brake,Steering Information and other signals input;support vehicle information OSD overlay,storage etc.

GPS

Not Support

WIFI module

Not Support

3G module

Not Support

G-Sensor

(optional)

Not supported



others

support delay boot up/shut down

complement

Exclusive player

Support google map,showing vehicle running track and data.

Platform

Support auto registration,no need of port Mapping,getting rid of 3G access problem.Support google map,showing vehicle running track and data

SDK

Free SDK for second development

others

Power supply

Wide voltage input 6V~36V,15% overvoltage protection,500MS 60V voltage surge

External power supply

Support 8* 12V controllable power supply for external camera,exclusive 12V and 5V output

Power consumption

<10W(HDD without)

Working temperature

0℃-+55℃

Working humudity

10%-90%

Atmospheric pressure

86kpa-106kpa

Dimension

193(length)*198(width)86(height)mm

weight

1.5kg


Product Detail:

4ch 960H HDD Mobile DVR Recorder With H.264 Network Backup Local Playback , automobile dvr

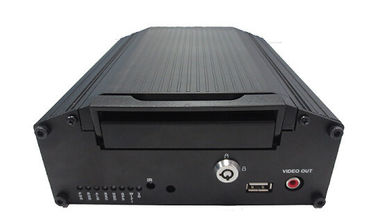

  1. Power indicator   2,Run Indicator  3,Alarm Indicator   4,Video Indicator    5,HDD Indicator
  1. GPS Indicator   7,WIFI Indicator   8,3G Indicator   9,IR Receiver  10,HDD Lock
  1. USB    12,External video output



4ch 960H HDD Mobile DVR Recorder With H.264 Network Backup Local Playback , automobile dvr

  1. SIM  2,External GPS  3,I/O ,RS485,RS232  4,5-8ch Audio and video input,Power output  5,1-4ch Audio and video input,12/5V Power output,Video Output    6,Power input   7,WIFI Antenna  8,3G Antenna  9,GPS Antenna



4ch 960H HDD Mobile DVR Recorder With H.264 Network Backup Local Playback , automobile dvr

















































































































































Product Detail:



4ch 960H HDD Mobile DVR Recorder With H.264 Network Backup Local Playback , automobile dvr



1,Power Indicator  2,Run Indicator 3,Alarm Indicator  4,Video Loss Indicator  5,Record Indicator

  1. SD Indicator  7,NC  8,IR receiver  9,SD card  10,USB  11,video output  12,SD lock



4ch 960H HDD Mobile DVR Recorder With H.264 Network Backup Local Playback , automobile dvr

1,GPS  2,RS232&RS485  3,Video & audio input/output,power output  4,Power input
