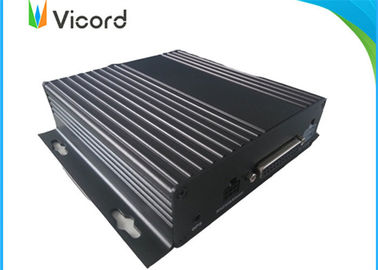

High Definition Portable Aluminium GPS Mobile DVR Dual Stream Recoding Support 64G SD

High Definition Portable Aluminium GPS Mobile DVR Dual Stream Recoding Support 64G SD
High Definition Portable Aluminium GPS Mobile DVR Dual Stream Recoding Support 64G SD

Large Image :  High Definition Portable Aluminium GPS Mobile DVR Dual Stream Recoding Support 64G SD

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Vicord
Certification: CE, FCC,ROHS
Model Number: MCS1GNN
Payment & Shipping Terms:
Minimum Order Quantity: 200
Delivery Time: 1-4 weeks after get the full payment
Payment Terms: T/T 100% before shipment
Supply Ability: 50000 pcs/per year
Detailed Product Description
Operating System: Linux Operating System: Linux
Interface: BNC\VGA\HDIM PTZ: Support Local And Remote PTZ Control
Encode Capacity: 4ch D1 Real-time(default CIF) Record Storage: SD
Record Storage: SD Weight: 420g
Weight: 420g

High Definition Portable GPS Mobile HD DVR Recorder Support 64G SD





Product introduction



Mobile DVR is a high level SD card mobile digital video recorder specially designed for vehicle surveillance purpose. It adopts high speed processor and embedded operating system, integrates latest H. 264 AV codec standard, high capacity hard disk storage, mature shock absorption technology, network streaming media, AV noise reduction, wide range voltage design and patent power-off protection technology, support GPS , brief outward, easy installing, system is safe and reliable.





Product Features:

  • With various decoding protocol and baud rate, our products support PTZ, cameras and speed dome etc. Control
  • Good anti-vibration and anti-high temperature function for stable picture quality
  • 4CH CIF, HD1, D1 full real-time recording
  • Video recording mode: Auto recording, alarm recording, timed recording, manual recording
  • Elegant and industrial design: Mini size, for easy installation
  • G. 711 audio compression, 4CH audio input, 1CH audio output
  • Operating temperature: 0℃-+55℃
  • Special function:GPSdata,wide voltage,mobile DVR player,SDK etc
  • Operation interface:similar to Windows operating style

SPECIFICATIONS





Model

MCS1GNN

system

Main processor

Industrial Embedded Microcontrollers

Operating system

Embedded LINUX

System resources

Simultaneous multi-channel real-time recording, playback, network operation, USB backup

interface

user interface

support 16-bit true color graphical menu interface and mouse operation

preview screen

1/4

video

vdieo standards

PAL(625line,50f/s);NTSC(525line,60f/s)

vdieo compression

H.264(High Profile)

display quality

monitor:D1

play quality

D1/Half-D1/CIF/QCIF

encode capacity

4ch D1 real-time(default CIF)

decode capacity

2ch D1 real-time

motion detect

Zones: 392(22*18)detection zones per window,multi-level sensitivity

audio

audio compression

G.711A

bidrectional talk

supported

Record

&

playback

record mode

manual>alarm>motion detection>timing

local playback

Any channel playback simultaneously(1-4ch)

search mode

Time/calendar/event/channel search

Storage

&

backup

space occupation

video:CIF 4~5G/ day*channel, D1 8~10G/ day*channel;
 audio:691.2M/ day*channel

record storage

SD

backup mode

Network backup,USB,USB Burn

interface

video input

4ch

video output

1ch RCA (1.0Vp-p,75Ω),1ch cable

audio input

4ch

audio output

1ch(200-3000mV,5K)

alarm input

no

alarm output

no

net interface

no

PTZ control

One RS485,one RS232

USB

One USB

Mobile interface

&

functions

GPIO

Support  OSD overlay, storage(optional) etc

GPS

Support



others

support delay boot up/shut down,timing boot up/shut down

complement

player

mobile exclusive player,Support google map,showing vehicle running track and data.

SDK

Free SDK for second development

others

Power supply

Wide voltage input 8V~32V,15% overvoltage protection,500MS 60V voltage surge

External power supply

Support 4* 12V controllable power supply for external camera,independent 12V/1.5A,5V/1.5A output

Power consumption

Less than 10W

Working temperature

0℃-+55℃

Working humudity

10%-90%

Atmospheric pressure

86kpa-106kpa

Dimension

130(L)*147(W)*36(H)mm

weight

420g
