4ch D1 Real-time Mobile DVR Recorder Wide Voltage GPS Bidrectional Talk DVR For School Bus

China 4ch D1 Real-time Mobile DVR Recorder Wide Voltage GPS Bidrectional Talk DVR For School Bus supplier

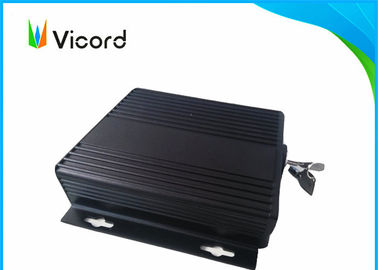

Large Image :  4ch D1 Real-time Mobile DVR Recorder Wide Voltage GPS Bidrectional Talk DVR For School Bus

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Vicord
Certification: CE, FCC
Model Number: MCS1GNN

Payment & Shipping Terms:

Minimum Order Quantity: 200
Delivery Time: 1-4 weeks after get the full payment
Payment Terms: T/T 100% before shipment
Supply Ability: 50000 pcs/per year
Contact Now
Detailed Product Description
Backup Mode: Network Backup、USB、USB Burn SDK: Free SDK For Second Development
Working Temperature: 0℃-+55℃ Play Quality: D1/Half-D1/CIF/QCIF
Vdieo Standards: PAL(625line,50f/s);NTSC(525line,60f/s) Dimension: 130(L)*147(W)*36(H)mm

4ch D1 Real-time Mobile DVR Recorder Wide Voltage GPS Bidrectional Talk DVR For School Bus



Application



 Mobile Car DVR can be widely used in public transportation, long distance passenger, school bus, truck, container truck, a tourist bus, freight logistics, police law enforcement vehicles, railways, ships, aircraft and other mobile vehicles.



Product Features:

  1. H.264 High Profile compression algorithm,30% decrease of stream due to advanced space-time
  2. filtering technology
  3. Main stream for local storage, ensure image quality
  4. Local and remote PTZ control
  5. Storage: SD card storage(support to 64GB)
  6. G. 711 audio compression, 4CH audio input, 1CH audio output
  7. Low power consumption
  8. Supports VGA high definition video/audio output
  9. Multiple language options, covers almost all main languages all over the world
  10. Support to connect speed sensor input, speed audio video synchronous recoding
  11. Support super high files fragmentation clearing technology and data protection

SPECIFICATIONS





Model

MCS1GNN

system

Main processor

Industrial Embedded Microcontrollers

Operating system

Embedded LINUX

System resources

Simultaneous multi-channel real-time recording, playback, network operation, USB backup

interface

user interface

support 16-bit true color graphical menu interface and mouse operation

preview screen

1/4

video

vdieo standards

PAL(625line,50f/s);NTSC(525line,60f/s)

vdieo compression

H.264(High Profile)

display quality

monitor:D1

play quality

D1/Half-D1/CIF/QCIF

encode capacity

4ch D1 real-time(default CIF)

decode capacity

2ch D1 real-time

motion detect

Zones: 392(22*18)detection zones per window,multi-level sensitivity

audio

audio compression

G.711A

bidrectional talk

supported

Record

&

playback

record mode

manual>alarm>motion detection>timing

local playback

Any channel playback simultaneously(1-4ch)

search mode

Time/calendar/event/channel search

Storage

&

backup

space occupation

video:CIF 4~5G/ day*channel, D1 8~10G/ day*channel;
 audio:691.2M/ day*channel

record storage

SD

backup mode

Network backup,USB,USB Burn

interface

video input

4ch

video output

1ch RCA (1.0Vp-p,75Ω),1ch cable

audio input

4ch

audio output

1ch(200-3000mV,5K)

alarm input

no

alarm output

no

net interface

no

PTZ control

One RS485,one RS232

USB

One USB

Mobile interface

&

functions

GPIO

Support  OSD overlay, storage(optional) etc

GPS

Support



others

support delay boot up/shut down,timing boot up/shut down

complement

player

mobile exclusive player,Support google map,showing vehicle running track and data.

SDK

Free SDK for second development

others

Power supply

Wide voltage input 8V~32V,15% overvoltage protection,500MS 60V voltage surge

External power supply

Support 4* 12V controllable power supply for external camera,independent 12V/1.5A,5V/1.5A output

Power consumption

Less than 10W

Working temperature

0℃-+55℃

Working humudity

10%-90%

Atmospheric pressure

86kpa-106kpa

Dimension

130(L)*147(W)*36(H)mm

weight

420g
