4CH Video SD Card Storage Mobile DVR Recorder Real-time Recording GPS Tracking Bus DVR

China 4CH Video SD Card Storage Mobile DVR Recorder Real-time Recording GPS Tracking Bus DVR supplier

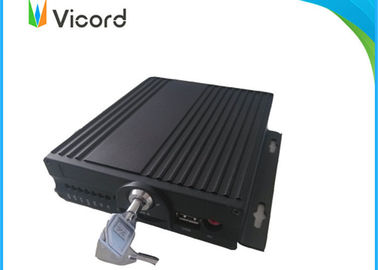

Large Image :  4CH Video SD Card Storage Mobile DVR Recorder Real-time Recording GPS Tracking Bus DVR

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Vicord
Certification: CE, FCC
Model Number: MCS1GNN

Payment & Shipping Terms:

Minimum Order Quantity: 200
Delivery Time: 1-4 weeks after get the full payment
Payment Terms: T/T 100% before shipment
Supply Ability: 50000 pcs/per year
Contact Now
Detailed Product Description
Local Playback: Any Channel Playback Simultaneously(1-4ch) Power Consumption: Less Than 10W
Encode Capacity: 4ch D1 Real-time(default CIF) Bidrectional Talk: Supported
Record Mode: Manual>alarm>motion Detection>timing Record Storage: SD Max 64G

4CH SD Mobile DVR Video Recorder Real-time Recording GPS Tracking Bus DVR





Application



Law Enforcement - Patrol Cars,Military – Tanks,Emergency Ambulances, Fire Trucks,Public Buses, Trains, Railways, Subways,Commercial Boats, Heavy Equipment, Limousines, Taxis, Van,Transportation - Freight Liners,Aviation Helicopters, Commercial and Private Aircraft.



Product Features:

  • With various decoding protocol and baud rate, our products support PTZ, cameras and speed dome etc. Control
  • Support super high files fragmentation clearing technology and data protection
  • Industrial Level design,smart mini size with professional aviation input, easily installation
  • Energy- efficient design, the power consumption is less than 10W with normal operating state
  • Storage: SD card storage(support to 64GB)
  • G. 711 audio compression, 4CH audio input, 1CH audio output
  • Operating temperature: 0℃-+55℃
  • Support to connect speed sensor input, speed audio video synchronous recoding

SPECIFICATIONS





Model

MCS1GNN

system

Main processor

Industrial Embedded Microcontrollers

Operating system

Embedded LINUX

System resources

Simultaneous multi-channel real-time recording, playback, network operation, USB backup

interface

user interface

support 16-bit true color graphical menu interface and mouse operation

preview screen

1/4

video

vdieo standards

PAL(625line,50f/s);NTSC(525line,60f/s)

vdieo compression

H.264(High Profile)

display quality

monitor:D1

play quality

D1/Half-D1/CIF/QCIF

encode capacity

4ch D1 real-time(default CIF)

decode capacity

2ch D1 real-time

motion detect

Zones: 392(22*18)detection zones per window,multi-level sensitivity

audio

audio compression

G.711A

bidrectional talk

supported

Record

&

playback

record mode

manual>alarm>motion detection>timing

local playback

Any channel playback simultaneously(1-4ch)

search mode

Time/calendar/event/channel search

Storage

&

backup

space occupation

video:CIF 4~5G/ day*channel, D1 8~10G/ day*channel;
 audio:691.2M/ day*channel

record storage

SD

backup mode

Network backup,USB,USB Burn

interface

video input

4ch

video output

1ch RCA (1.0Vp-p,75Ω),1ch cable

audio input

4ch

audio output

1ch(200-3000mV,5K)

alarm input

no

alarm output

no

net interface

no

PTZ control

One RS485,one RS232

USB

One USB

Mobile interface

&

functions

GPIO

Support  OSD overlay, storage(optional) etc

GPS

Support



others

support delay boot up/shut down,timing boot up/shut down

complement

player

mobile exclusive player,Support google map,showing vehicle running track and data.

SDK

Free SDK for second development

others

Power supply

Wide voltage input 8V~32V,15% overvoltage protection,500MS 60V voltage surge

External power supply

Support 4* 12V controllable power supply for external camera,independent 12V/1.5A,5V/1.5A output

Power consumption

Less than 10W

Working temperature

0℃-+55℃

Working humudity

10%-90%

Atmospheric pressure

86kpa-106kpa

Dimension

130(L)*147(W)*36(H)mm

weight

420g
