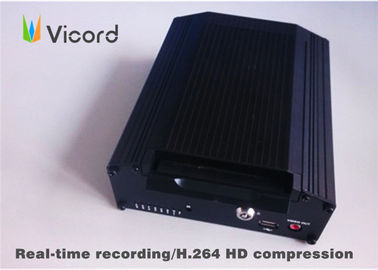

HDD Storage GPS Mobile DVR Recorder IR remote PTZ Control Automatic Recording For truck

China HDD Storage GPS Mobile DVR Recorder  IR remote  PTZ Control Automatic Recording For  truck supplier

Large Image :  HDD Storage GPS Mobile DVR Recorder IR remote PTZ Control Automatic Recording For truck

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Vicord
Certification: CE, FCC,ROHS
Model Number: MCH4GNN

Payment & Shipping Terms:

Minimum Order Quantity: 200
Delivery Time: 1-4 weeks after get the full payment
Payment Terms: T/T 100% before shipment
Supply Ability: 50000 pcs/per year
Contact Now
Detailed Product Description
Display Quality: Monitor:D1 Bidrectional Talk: Supported
Local Playback: Any Channel Playback Simultaneously(1-4ch) Backup Mode: Network Backup,USB HDD,U Disk
RS485, RS232: One RS485、one RS232 Weight: 1.5kg
Record Storage: HDD,network

HDD Storage GPS Mobile DVR Recorder  IR remote  PTZ Control Automatic Recording For  truck



Product introduction





 Mobile Dvr is a cost-effective and basic Mobile Digital Video Recorder specially designed for vehicle surveillance and local recording, combined with high-speed processor and embedded operating system. It' s based on Airframe adopt high-end aluminum alloy, heat faster, can avoid work long time in high temperature environment, prevent aging
    Its structure adopts special anti-vibration technology. Software using a particular hard disk protection technology to effectively solve the problem of frequently encountered Car DVR hard drive error. The product has good shock resistance, heatresistance and stability.





Application



Buses, cars, coaches, cash carriers, industrial vehicles, taxi, investigation vehicles, military trucks, police vehicles, ambulances, Tourism buses, even yachts, aircraft and vessels. It can also be used in farm, construction site, vacation spot to monitor the around environment if nobody nearby and so on.



Product Feature

  1. Supports Mouse & IR remote control for easy operation
  2. Hard disk smoked pull box, compatible with all 2.5 -inch hard disk
  3. Support intercom function
  4. Support multiple web browsers (ie,chrome,firefox, safari)
  5. With its own domain name service functions (ARSP), and one key to remote monitoring,monitoring becomes easy and enjoyable. 3322 (Greek network), dyndns, oray (peanut shells), myq-see and other Domain Name Services are also provided
  6. support the large capacity hard disk, maximum 4TB
  7. Supports Manual Record, Motion Detect and scheduled Record
  8. Can work with power supply ranging from DC6V to DC36V
  9. With anti-vibration, anti-high temperature protection and low temperature pre-heated function, the quality of video files is always guaranteed

SPECIFICATIONS





Model

MCH4GNN

system

Main processor

Hi3520D

Operating system

Embedded LINUX operating system

System resources

Simultaneous multi-channel real-time recording, playback, network operation, USB backup

interface

user interface

support 16-bit true color graphical menu interface and mouse operation

preview screen

1/4

video

vdieo standards

PAL(625line,50f/s);NTSC(525line,60f/s)

vdieo compression

H.264(Main Profile)

display quality

Monitor:D1

play quality

960H/D1/Half-D1/CIF/QCIF

encode capacity

4ch 960H real-time

decode capacity

1ch 960H real-time

motion detect

Zones: 392(22*18)detection zones per window,multi-level sensitivity

audio

audio compression

G.711A

bidrectional talk

supported

Record

&

playback

record mode

manual>alarm>motion detection>timing

local playback

Any channel playback simultaneously(1-4ch)

search mode

Time/calendar/event/channel search

Storage

&

backup

space occupation

video:CIF 4~5G/ day*channel, D1 8~10G/ day*channel;
 audio:691.2M/ day*channel

record storage

HDD,network

backup mode

Network backup,USB HDD,U disk

interface

video input

4ch

video output

1ch RCA (1.0Vp-p,75Ω),1ch for cable

audio input

4ch

audio output

1ch (200-3000mV,5K)

alarm input

4ch(multiplexing vehicle signal)

alarm output

2ch

RJ45 interface

no

RS485, RS232

One RS485,one RS232

USB

One USB

HDD

One SATA port,max.4T

Mobile interface &functions

GPIO signal

Support vehicle name,speed,turn light,vehicle door,brake,Steering Information and other signals input;support vehicle information OSD overlay,storage etc.

GPS

Support



others

support delay boot up/shut down

complement

Exclusive player

Support google map,showing vehicle running track and data.

Platform

Support auto registration,no need of port Mapping,getting rid of 3G access problem.Support google map,showing vehicle running track and data

SDK

Free SDK for second development

others

Power supply

Wide voltage input 6V~36V,15% overvoltage protection,500MS 60V voltage surge

External power supply

Support 8* 12V controllable power supply for external camera,exclusive 12V and 5V output

Power consumption

<10W(HDD without)

Working temperature

0℃-+55℃

Working humudity

10%-90%

Atmospheric pressure

86kpa-106kpa

Dimension

193(length)*198(width)86(height)mm

weight

1.5kg
