4ch HDD Backup Mobile DVR Recorder Mobile Remote Monitor Auto Recording For Logistics Vehicles

China 4ch HDD Backup Mobile DVR Recorder Mobile Remote Monitor Auto Recording For Logistics Vehicles supplier

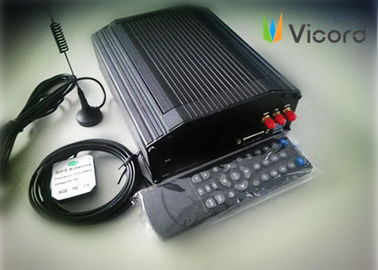

Large Image :  4ch HDD Backup Mobile DVR Recorder Mobile Remote Monitor Auto Recording For Logistics Vehicles

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Vicord
Certification: CE, FCC,ROHS
Model Number: MCH4N3N

Payment & Shipping Terms:

Minimum Order Quantity: 200
Delivery Time: 1-4 weeks after get the full payment
Payment Terms: T/T 100% before shipment
Supply Ability: 50000 pcs/per year
Contact Now
Detailed Product Description
Play Quality: 960H/D1/Half-D1/CIF/QCIF Video Standards: PAL(625line,50f/s);NTSC(525line,60f/s)
Record Mode: Manual>alarm>motion Detection>timing 3G Module: Support
Power Consumption: Less Than10W(HDD Without) Dimension: 193(length)*198(width)86(height)mm

 4ch HDD Backup Mobile DVR Recorder Mobile Remote Monitor Auto Recording For Logistics Vehicles



Product introduction



     This product is a cost-effective and basic Mobile Digital Video Recorder specially designed for vehicle surveillance and local recording, combined with high-speed processor and embedded operating system. It' s based on advanced H. 264 video compression and decompression technology.
     Its structure adopts special anti-vibration technology. Software using a particular hard disk protection technology to effectively solve the problem of frequently encountered Car DVR hard drive error. The product has good shock resistance, heatresistance and stability, it can be widely applied to various types of vehicles.





Application



1.  City Transportation Prevention for Speeding, overloading, accident disputes, passengers disputes and

so on

2.  Taxi Transportation

Crime presentation, Driver protection, As an evidence of segregation responsibility when the event of passengers disputes occur

3.   Long Distance Coach Transportation

Prevention for Speeding, Overloading, Halfway Passengers get on/off Charges, Accidentand passengers disputes

4.   Logistics vehicles Transportation

For damaged goods in transit occurs, loss and other problems, unable to distinguish

Events prove liability, logistics companies and customers and insurance companies often dispute the goods for compensation



Product Feature

  • Support local and remote PTZ control
  • Startup recording by default, support auto timed, alarm & manual recording
  • support 1*HDD Storage;( HDD maximum 4T)
  • Wide voltage design, suitable for all kinds of vehicles
  • Support intercom function
  • Support super high files fragmentation clearing technology and data protection
  • support the large capacity hard disk, maximum 4TB
  • 4ch 960H,4ch D1 real-time recording
  • similar to Windows operating style, easy to get started with powerful mouse right-click function

SPECIFICATIONS





Model

MCH4N3N

system

Main processor

Hi3520D

Operating system

Embedded LINUX operating system

System resources

Simultaneous multi-channel real-time recording, playback, network operation, USB backup

interface

user interface

support 16-bit true color graphical menu interface and mouse operation

preview screen

1/4

video

video standards

PAL(625line,50f/s);NTSC(525line,60f/s)

video compression

H.264(Main Profile)

display quality

Monitor:D1

play quality

960H/D1/Half-D1/CIF/QCIF

encode capacity

4ch 960H real-time

decode capacity

1ch 960H real-time

motion detect

Zones: 392(22*18)detection zones per window,multi-level sensitivity

audio

audio compression

G.711A

bidrectional talk

supported

Record

&

playback

record mode

manual>alarm>motion detection>timing

local playback

Any channel playback simultaneously(1-4ch)

search mode

Time/calendar/event/channel search

Storage

&

backup

space occupation

video:CIF 4~5G/ day*channel, D1 8~10G/ day*channel;
 audio:691.2M/ day*channel

record storage

HDD,network

backup mode

Network backup,USB HDD,USB writer,U disk

interface

video input

4ch

video output

1ch RCA (1.0Vp-p,75Ω),1ch for cable

audio input

4ch

audio output

1ch (200-3000mV,5K)

alarm input

4ch(multiplexing vehicle signal)

alarm output

2ch

RJ45 interface

no

RS485, RS232

One RS485,one RS232

USB

One USB

HDD

One SATA port,max.4T

Mobile interface &functions

GPIO signal

Support vehicle name,speed,turn light,vehicle door,brake,Steering Information and other signals input;support vehicle information OSD overlay,storage etc.

GPS

Not Support

WIFI module

Not Support

3G module

Support( support  EVDO & WCDMA & TD-SCDMA)

G-Sensor

(optional)

Not supported



others

support delay boot up/shut down

complement

Exclusive player

Support google map,showing vehicle running track and data.

Platform

Support auto registration,no need of port Mapping,getting rid of 3G access problem.Support google map,showing vehicle running track and data

SDK

Free SDK for second development

others

Power supply

Wide voltage input 6V~36V,15% overvoltage protection,500MS 60V voltage surge

External power supply

Support 8* 12V controllable power supply for external camera,exclusive 12V and 5V output

Power consumption

Less than10W(HDD without)

Working temperature

0℃-+55℃

Working humudity

10%-90%

Atmospheric pressure

86kpa-106kpa

Dimension

193(length)*198(width)86(height)mm

weight

1.5kg
