Linux H.264 Compression WIFI Mobile DVR 4 Channel 960H Real-time Recorder Motion Detection

China Linux  H.264 Compression WIFI Mobile DVR 4 Channel 960H Real-time Recorder Motion Detection supplier

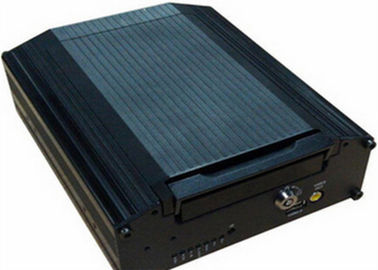

Large Image :  Linux H.264 Compression WIFI Mobile DVR 4 Channel 960H Real-time Recorder Motion Detection

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Vicord
Certification: CE, FCC,ROHS
Model Number: MCH4NNW

Payment & Shipping Terms:

Minimum Order Quantity: 200
Delivery Time: 1-4 weeks after get the full payment
Payment Terms: T/T 100% before shipment
Supply Ability: 50000 pcs/per year
Contact Now
Detailed Product Description
Main Processor: Hi3520D Vdieo Compression: H.264(Main Profile)
Encode Capacity: 4ch 960H Real-time Decode Capacity: 1ch 960H Real-time
Bidrectional Talk: Supported HDD: One SATA Port,max.4T

4 Channel 960H Real-time Recorder Motion Detection Linux  H.264





Product introduction



This device is specially designed high price-quality ratio product for the car mobile video monitoring,It adopts embedded processor and embedded operating system, combines the latest technologies in the IT filed like audio and video compression/decompression technology. High-capacity HDD record,wireless transmission,GPS location technology and so on. Its structure adopts special anti-vibration technology. Software using a particular hard disk protection technology to effectively solve the problem of frequently encountered Car DVR hard drive error. The product has good shock resistance, heatresistance and stability, it can be widely applied to various types of vehicles



Application



Buses, cars, coaches, cash carriers, industrial vehicles, taxi, investigation vehicles, military trucks, police vehicles, ambulances, Tourism buses, even yachts, aircraft and vessels. It can also be used in farm, construction site, vacation spot to monitor the around environment if nobody nearby and so on.



Product Feature

  1. support 1*HDD Storage;( HDD maximum 4T)
  2. Lockable, plastic HDD handle, protect HDD efficiently
  3. Support local and remote PTZ control
  4. Startup recording by default, support auto timed, alarm & manual recording
  5. Multiple language options, covers almost all main languages all over the world
  6. Supports Mouse & IR remote control for easy operation
  7. Can work with power supply ranging from DC6V to DC36V
  8. Network:Powerful network services (support DAS,DHCP,PPPOE,FTP,DNS,DDNS,NTP,UPNP,EMAIL, IP permissions, IP searches, Alarm Center, etc.) and perfect support (WEB, Client, SDK), easy to achieve interoperability
  9. support TV output,taking the lead in HD resolution technology
  10. Supports Manual Record, Motion Detect and scheduled Record
  11. With complete client Software Platform, support Real time Video view, Record, Snap, Replay analysis

SPECIFICATIONS





Model

MCH4NNW

system

Main processor

Hi3520D

Operating system

Embedded LINUX operating system

System resources

Simultaneous multi-channel real-time recording, playback, network operation, USB backup

interface

user interface

support 16-bit true color graphical menu interface and mouse operation

preview screen

1/4

video

vdieo standards

PAL(625line,50f/s);NTSC(525line,60f/s)

vdieo compression

H.264(Main Profile)

display quality

Monitor:D1

play quality

960H/D1/Half-D1/CIF/QCIF

encode capacity

4ch 960H real-time

decode capacity

1ch 960H real-time

motion detect

Zones: 392(22*18)detection zones per window,multi-level sensitivity

audio

audio compression

G.711A

bidrectional talk

supported

Record

&

playback

record mode

manual>alarm>motion detection>timing

local playback

Any channel playback simultaneously(1-4ch)

search mode

Time/calendar/event/channel search

Storage

&

backup

space occupation

video:CIF 4~5G/ day*channel, D1 8~10G/ day*channel;
 audio:691.2M/ day*channel

record storage

HDD,network

backup mode

Network backup,USB HDD,USB writer,U disk

interface

video input

4ch

video output

1ch RCA (1.0Vp-p,75Ω),1ch for cable

audio input

4ch

audio output

1ch (200-3000mV,5K)

alarm input

4ch(multiplexing vehicle signal)

alarm output

2ch

RJ45 interface

no

RS485, RS232

One RS485,one RS232

USB

One USB

HDD

One SATA port,max.4T

Mobile interface &functions

GPIO signal

Support vehicle name,speed,turn light,vehicle door,brake,Steering Information and other signals input;support vehicle information OSD overlay,storage etc.

WIFI module

Support



others

support delay boot up/shut down

complement

Exclusive player

Support google map,showing vehicle running track and data.

Platform

Support auto registration,no need of port Mapping,getting rid of 3G access problem.Support google map,showing vehicle running track and data

SDK

Free SDK for second development

others

Power supply

Wide voltage input 6V~36V,15% overvoltage protection,500MS 60V voltage surge

External power supply

Support 8* 12V controllable power supply for external camera,exclusive 12V and 5V output

Power consumption

Less than 10W(HDD without)

Working temperature

0℃-+55℃

Working humudity

10%-90%

Atmospheric pressure

86kpa-106kpa

Dimension

193(length)*198(width)86(height)mm

weight

1.5kg
